Wiring Diagram - ILL -

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

POWER SUPPLY, GROUND & CIRCUIT ELEMENTS -- PATHFINDER

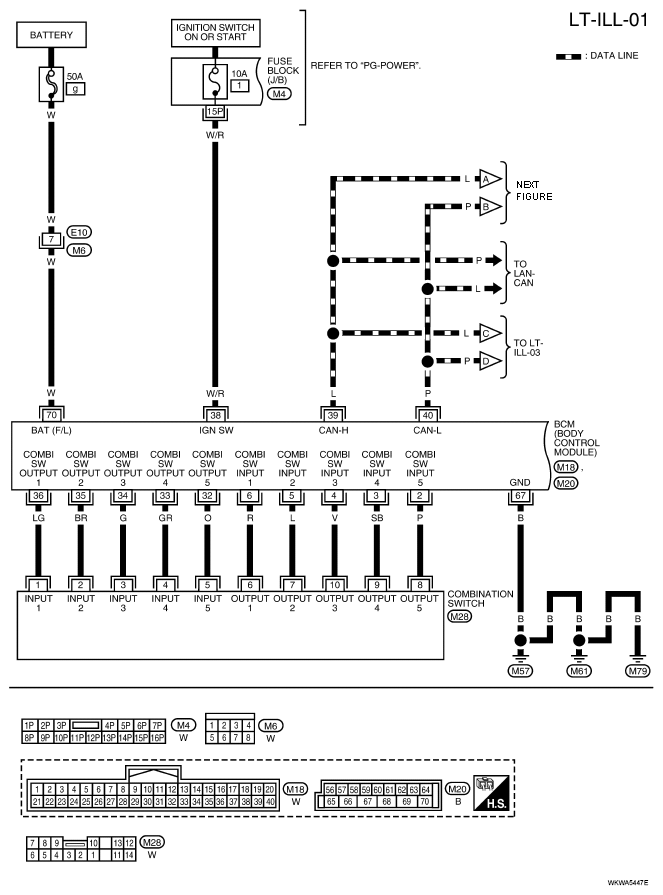

Fig 1: Identifying Wiring Diagram - LT-ILL-01

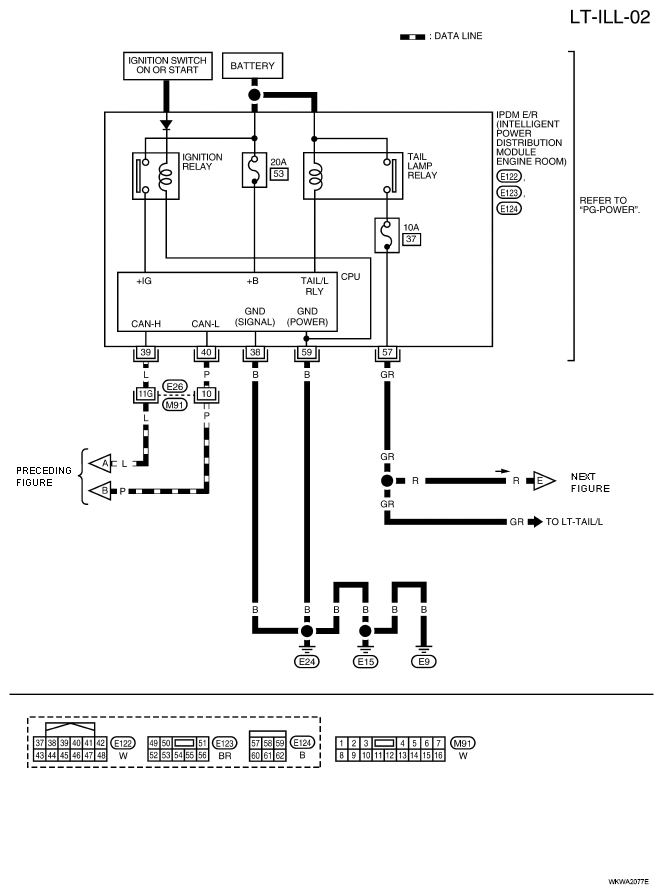

Fig 2: Identifying Wiring Diagram - LT-ILL-02

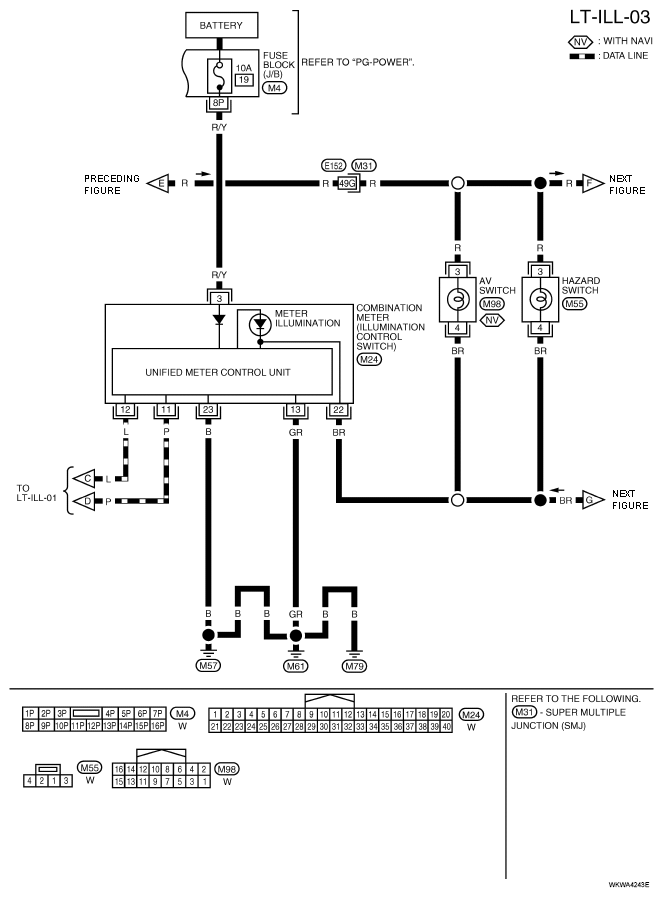

Fig 3: Identifying Wiring Diagram - LT-ILL-03

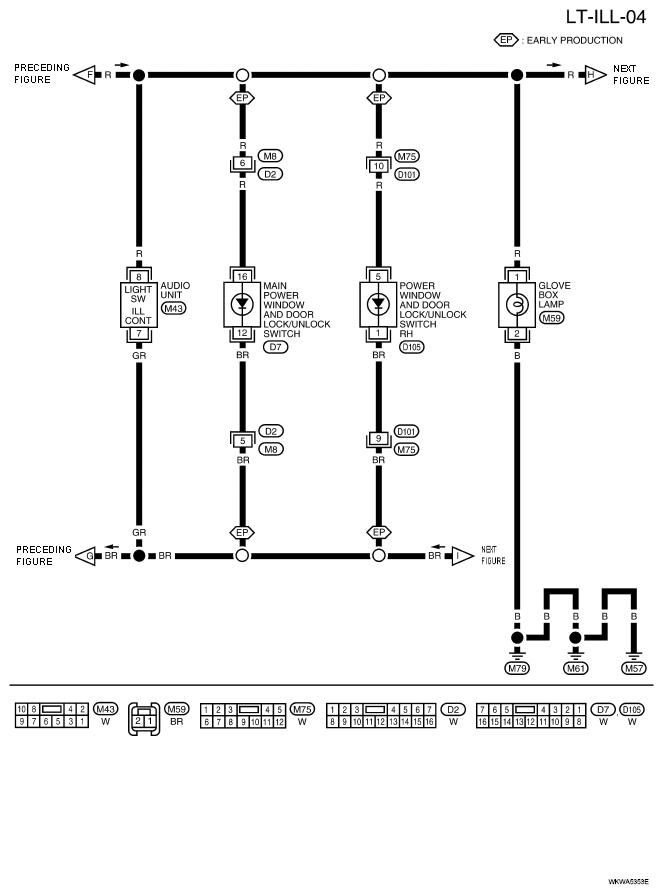

Fig 4: Identifying Wiring Diagram - LT-ILL-04

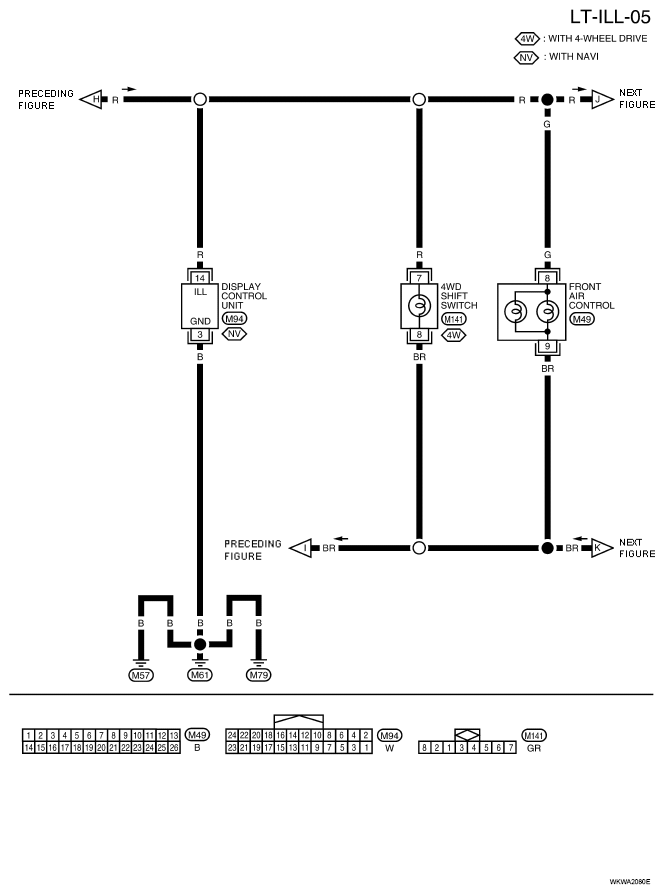

Fig 5: Identifying Wiring Diagram - LT-ILL-05

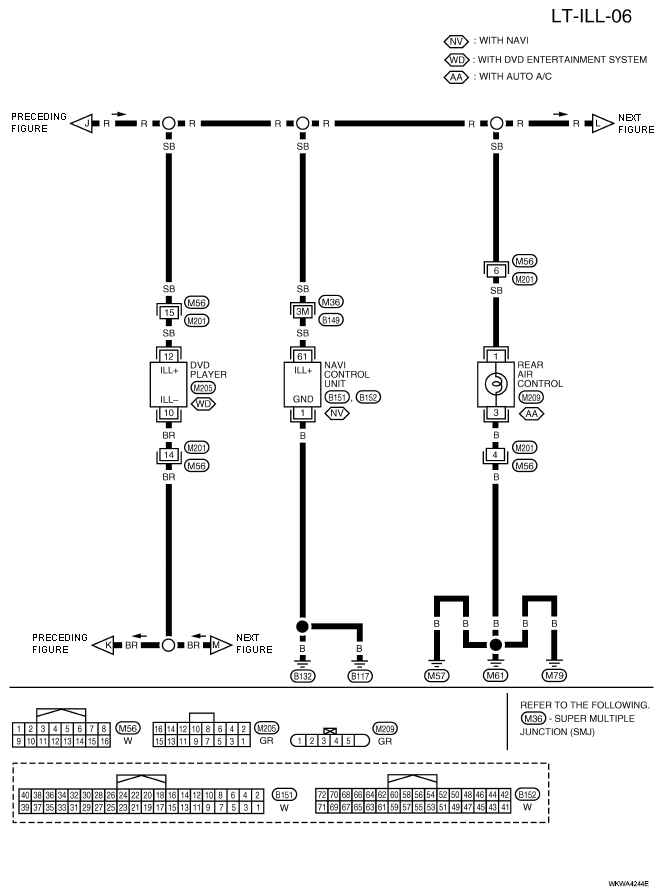

Fig 6: Identifying Wiring Diagram - LT-ILL-06

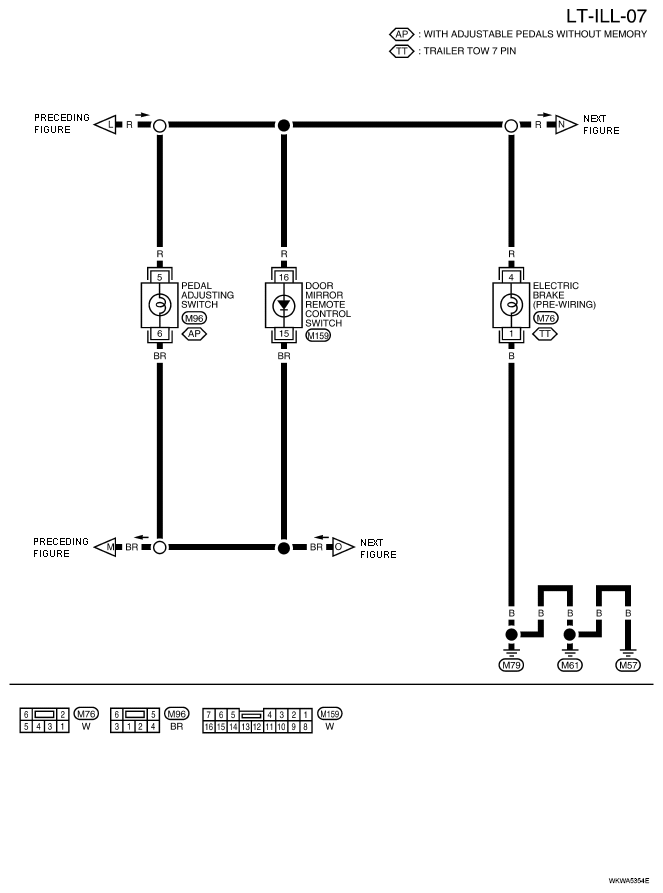

Fig 7: Identifying Wiring Diagram - LT-ILL-07

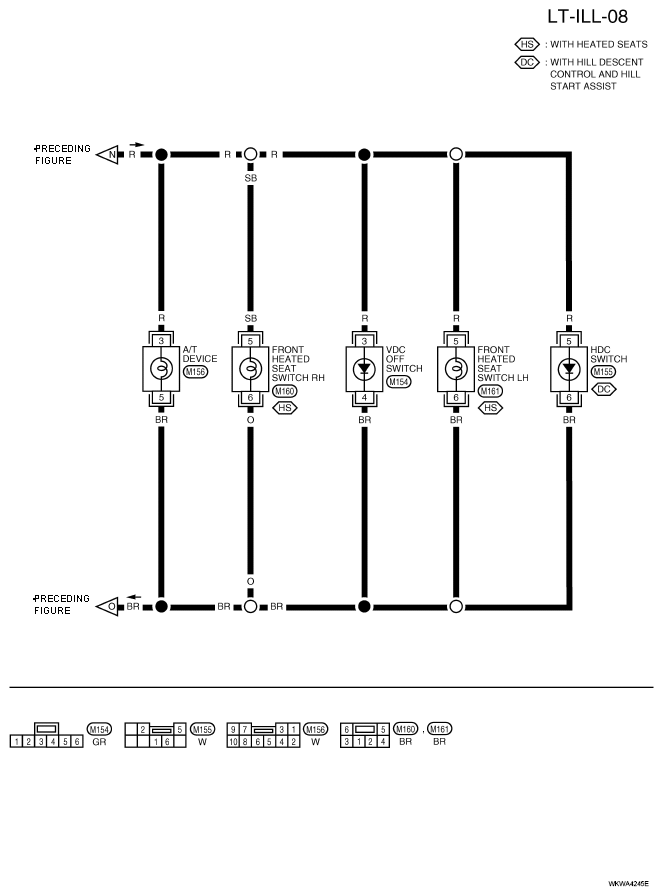

Fig 8: Identifying Wiring Diagram - LT-ILL-08

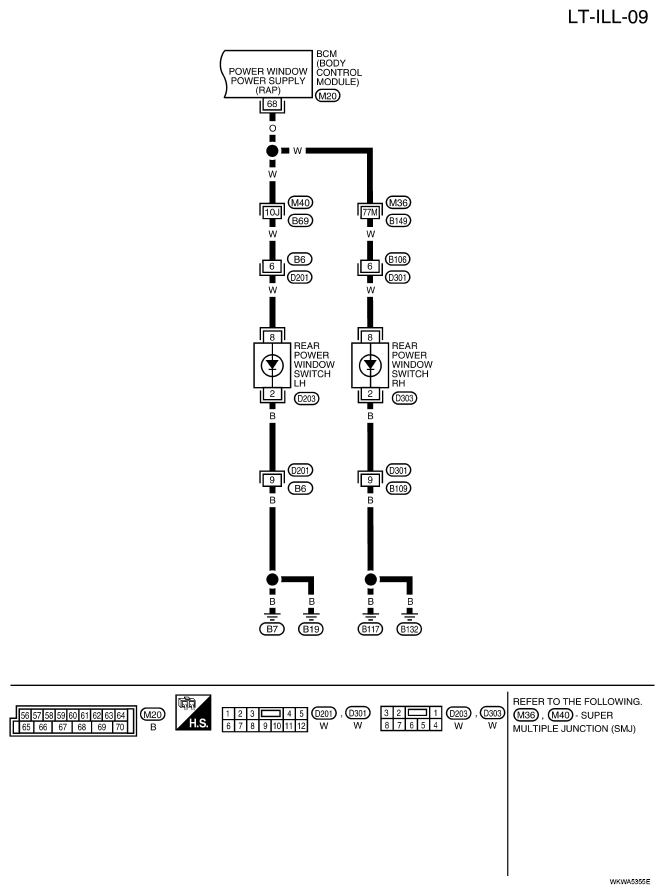

Fig 9: Identifying Wiring Diagram - LT-ILL-09
