Removal & Installation

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE .
Disconnect negative battery cable.
Remove maintenance access cover located under or behind rear seat.

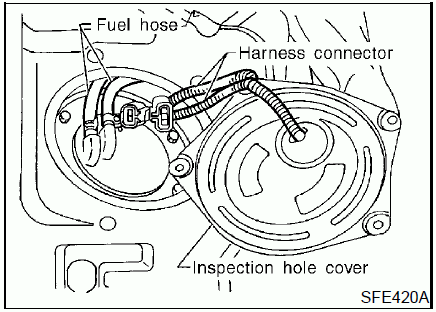

Fig 1: Identifying Inspection Hole Cover, Harness Connector And Fuel Hoses

Courtesy of NISSAN MOTOR CO., U.S.A.

Disconnect harness connectors and fuel tubes from upper plate of fuel level sensor unit.
NOTE: Put mating marks on tubes for correct installation.

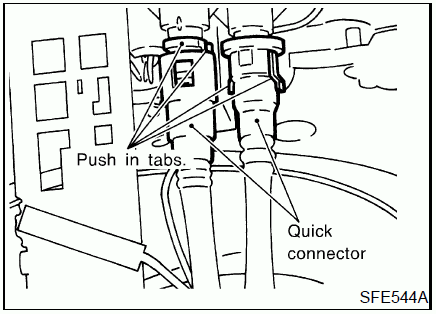

Fig 2: Identifying Quick Connector Tabs
Courtesy of NISSAN MOTOR CO., U.S.A.

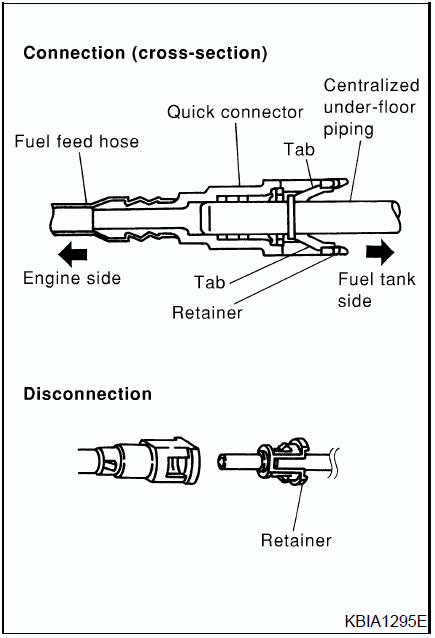

Fig 3: Cross-Sectional View Of Quick Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove fuel pump retainer screws.
Using care to not spill residual fuel from fuel pump and fuel level sensor unit, remove fuel pump from fuel tank.

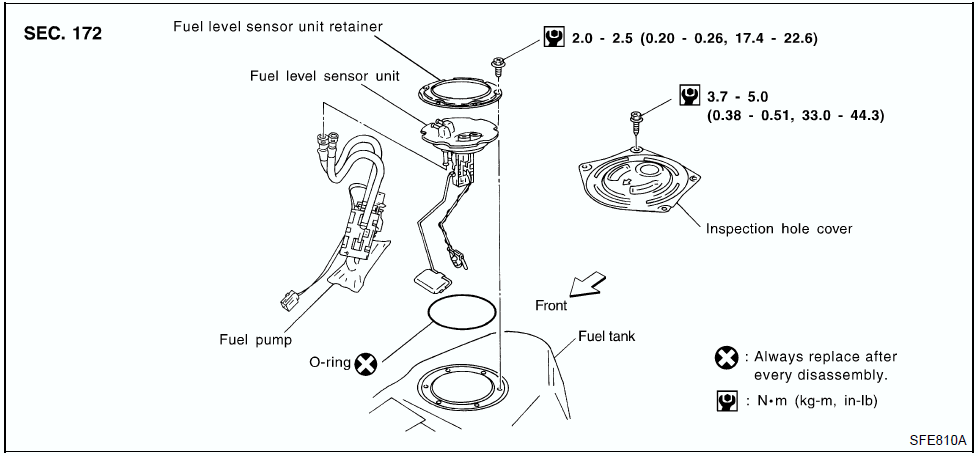

Fig 4: Exploded View Of Fuel Pump And Level Sensor Unit With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

To install, reverse removal procedure.
NOTE: Face fuel level sensor unit as shown in the figure below, and install it with knock pin on back aligned with knock pin hole on fuel tank.

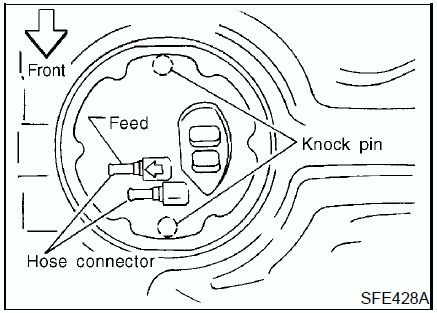

Fig 5: Fuel Pump And Level Sensor Unit Orientation
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten fuel pump bolts or fuel pump lock ring to specification. See TORQUE SPECIFICATIONS .
