Inspection and Adjustment: Inspection

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the brake pedal free height "H" from dash lower panel using Tool.
Tool : - (J-46532)

Adjust the height referring to the following specifications.

CAUTION: The adjustable pedal must be in the frontmost (closest to the floor) position for pedal height measurement.

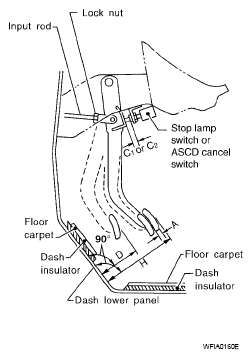

Fig 1: Identifying Brake Pedal Free Height

BRAKE PEDAL FREE HEIGHT SPECIFICATION

Unit: mm (in)
Free height "H"	: 182.1 - 192.1 (7.17 - 7.56)
Depressed pedal height ("D" [under a force of 490 N (50 kg, 110 lb) with engine running]	: 105 - 115 (4.13 - 4.53)
Clearance between pedal stopper and threaded end of stop lamp switch and ASCD cancel switch "C1 " or "C2 "	: 0.74 - 1.96 (0.029 - 0.077)
Pedal play "A"	: 3 - 11 (0.12 - 0.43)
