With HOMELINK® Universal Transceiver

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

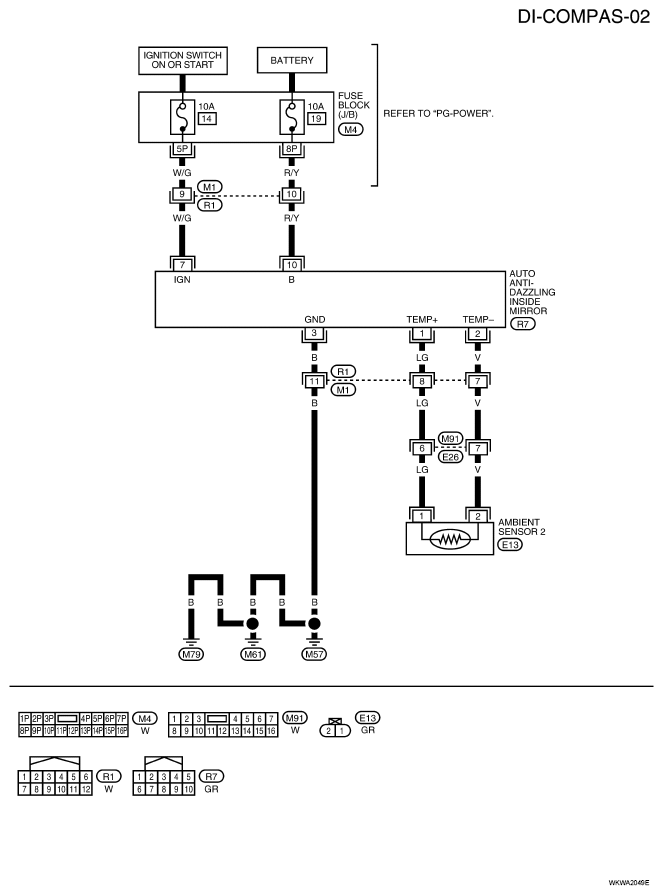

Fig 1: Identifying Wiring Diagram (With Homelink® Universal Transceiver) - DI-COMPAS-02
G04913930
