Wiring Diagram - A/C,M -

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS -- PATHFINDER .

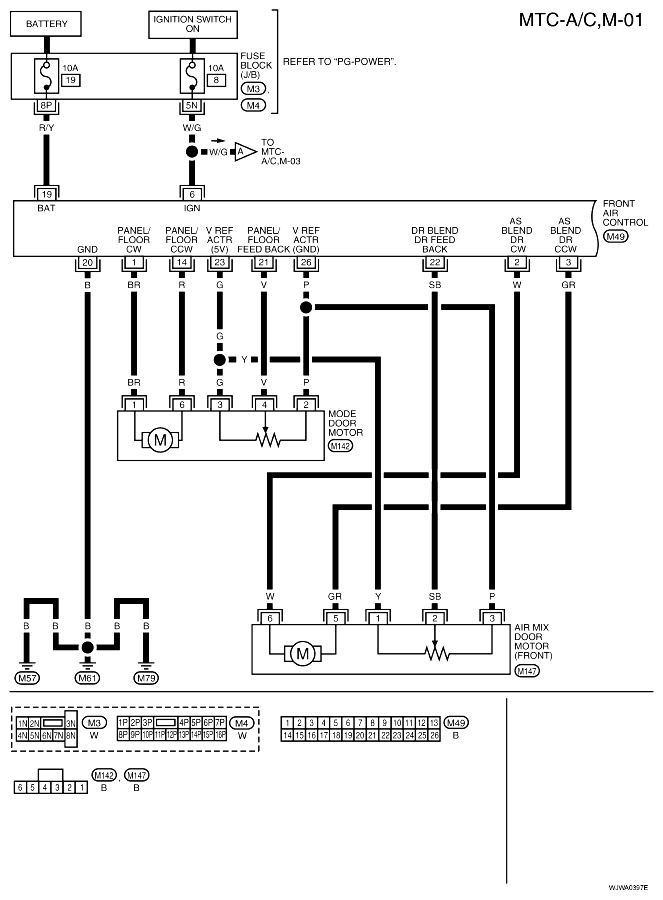

Fig 1: Identifying MTC-A/C,M-01 - Wiring Diagram

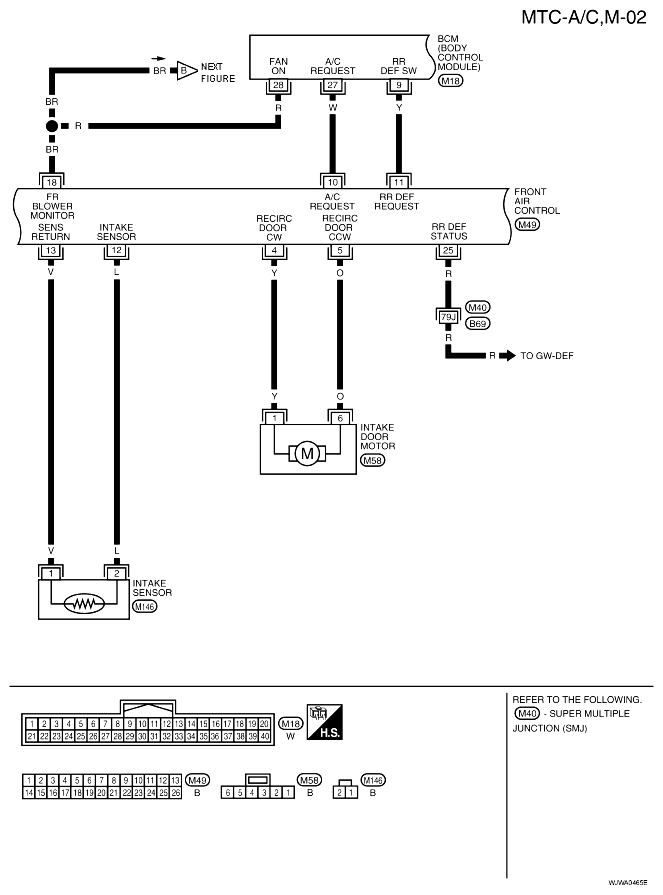

Fig 2: Identifying MTC-A/C,M-02 - Wiring Diagram

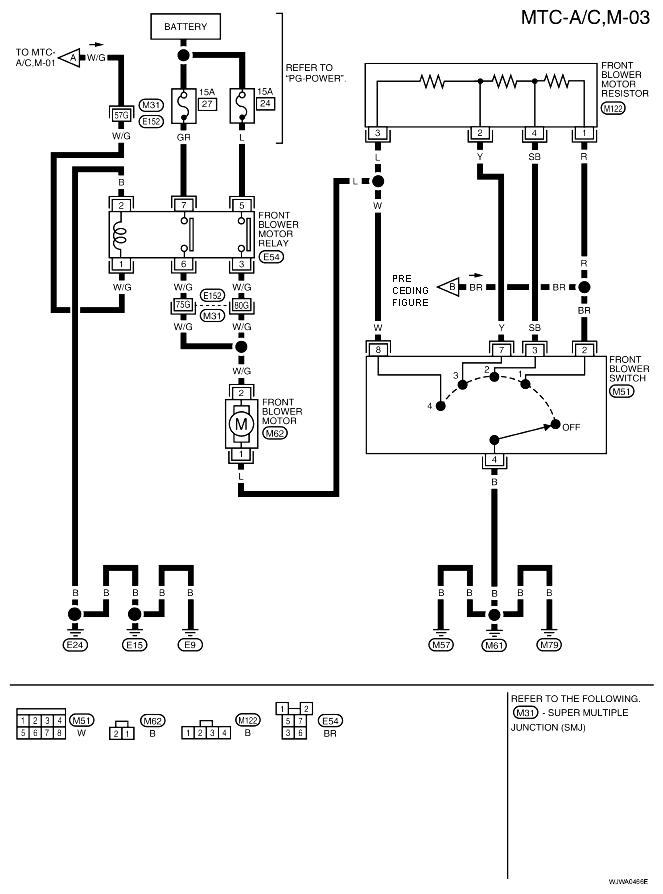

Fig 3: Identifying MTC-A/C,M-03 - Wiring Diagram

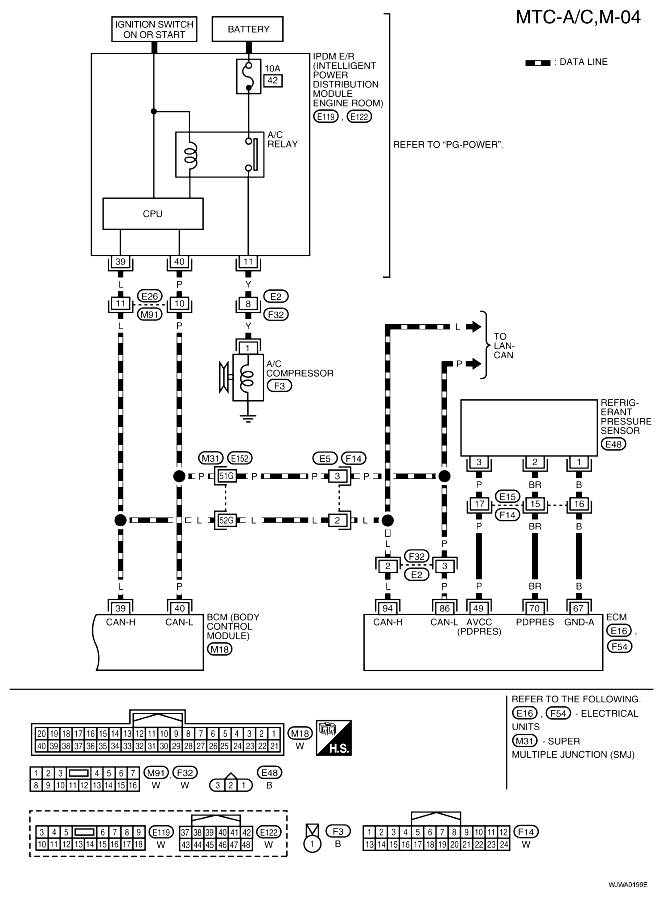

Fig 4: Identifying MTC-A/C,M-04 - Wiring Diagram
