Inspection Flow
WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

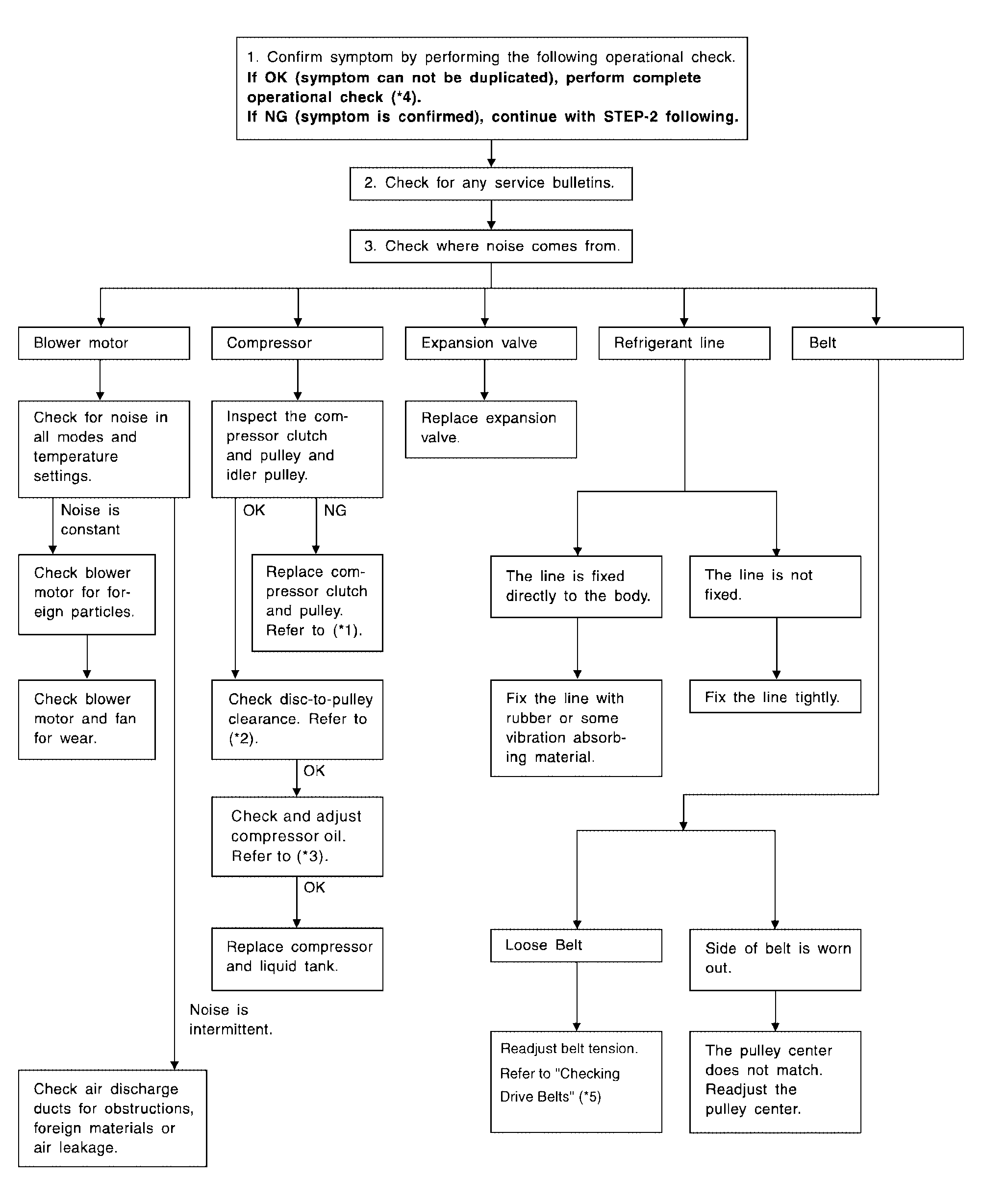

| Footnotes (See Fig 1 ) | References |
| *1 | REMOVAL |
| *2 | INSTALLATION |
| *3 | MAINTENANCE OF OIL QUANTITY IN COMPRESSOR |
| *4 | OPERATIONAL CHECK (FRONT) |
| *5 | CHECKING DRIVE BELTS |
