Performance Test Diagnoses
WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

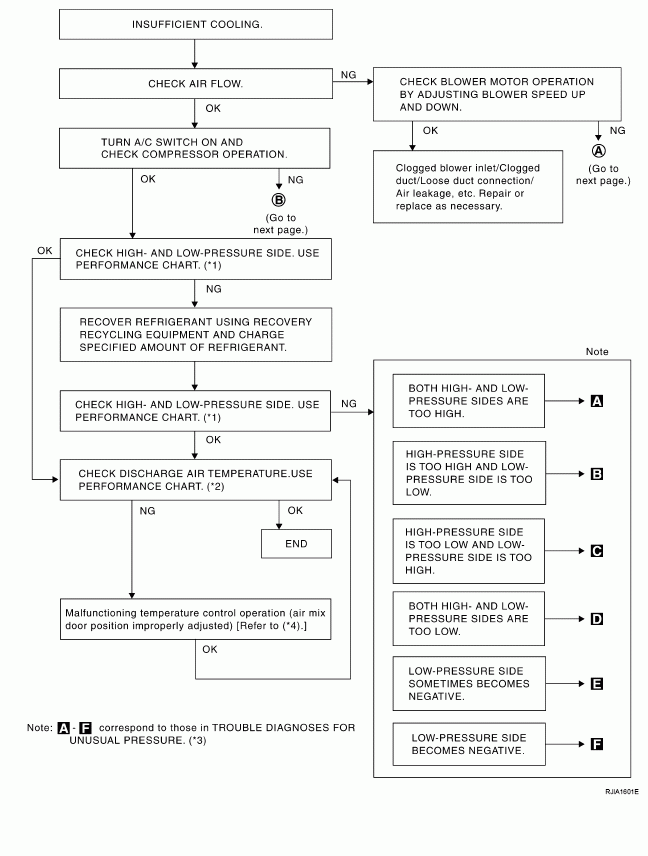

| Footnotes (See Fig 1 ) | Reference |
| *1 | PERFORMANCE CHART |
| *2 | PERFORMANCE CHART |
| *3 | TROUBLE DIAGNOSES FOR UNUSUAL PRESSURE |
| *4 | AIR MIX DOOR MOTOR CIRCUIT |

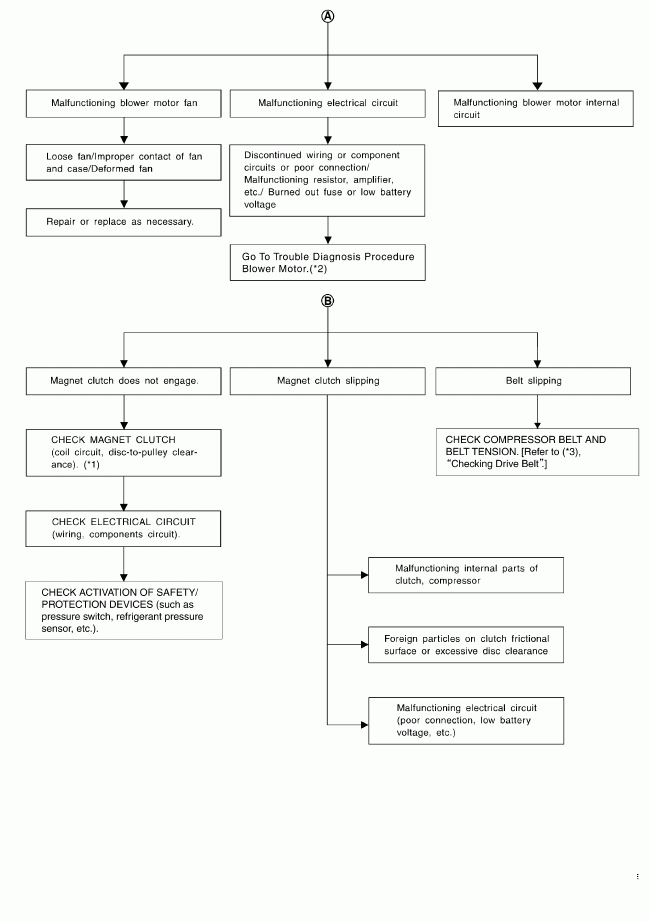

| Footnotes (See Fig 2 ) | References |
| *1 | REMOVAL AND INSTALLATION FOR COMPRESSOR CLUTCH |
| *2 | FRONT BLOWER MOTOR CIRCUIT |
| *3 | CHECKING DRIVE BELTS |
