Back Door

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the glass hatch. Refer to "GLASS HATCH ".
  2. Remove the license lamp finisher. Refer to "LICENSE LAMP FINISHER ".
  3. Remove the back door lock assembly. Refer to "BACK DOOR LOCK ".
  4. Remove the back door wire harness.
  5. Remove the rear washer nozzle and hose from the back door. Refer to "REAR WASHER NOZZLE "
    CAUTION: Two technicians should be used to avoid damaging the back door during removal.
  6. Support the back door.
  7. Remove the back door stays.
  8. Remove the door side nuts and the back door assembly.

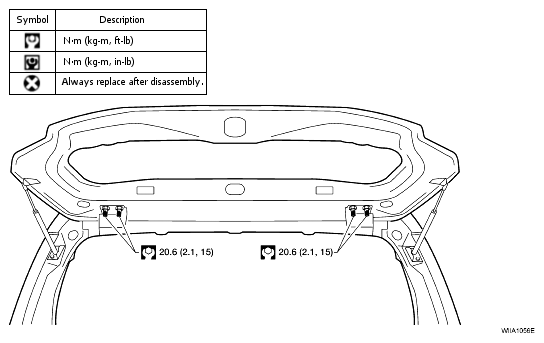

    Fig 1: Identifying Door Side Nuts And Back Door Assembly
    G04912794

    Installation is in the reverse order of removal.
