Diagnostic Worksheet

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

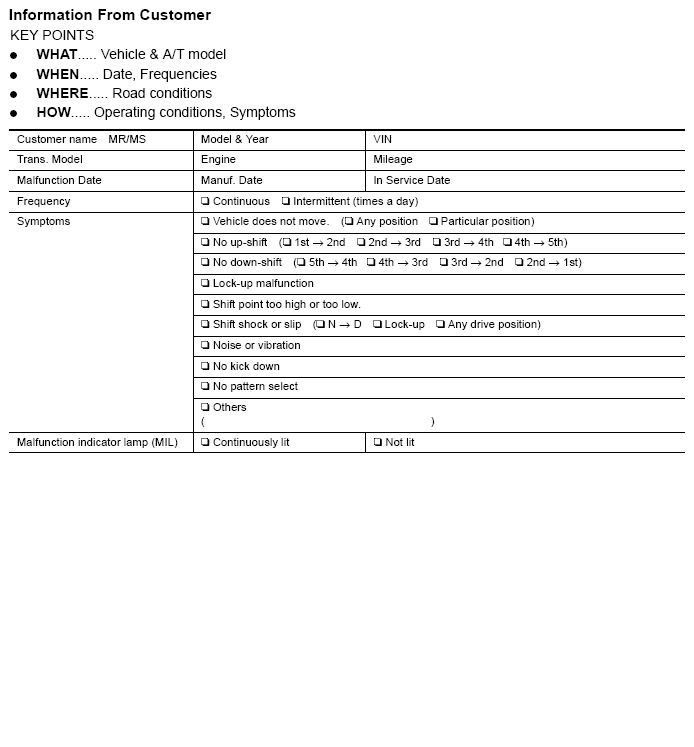

Fig 1: Identifying Diagnostic Worksheet (1 Of 3)
G04909577

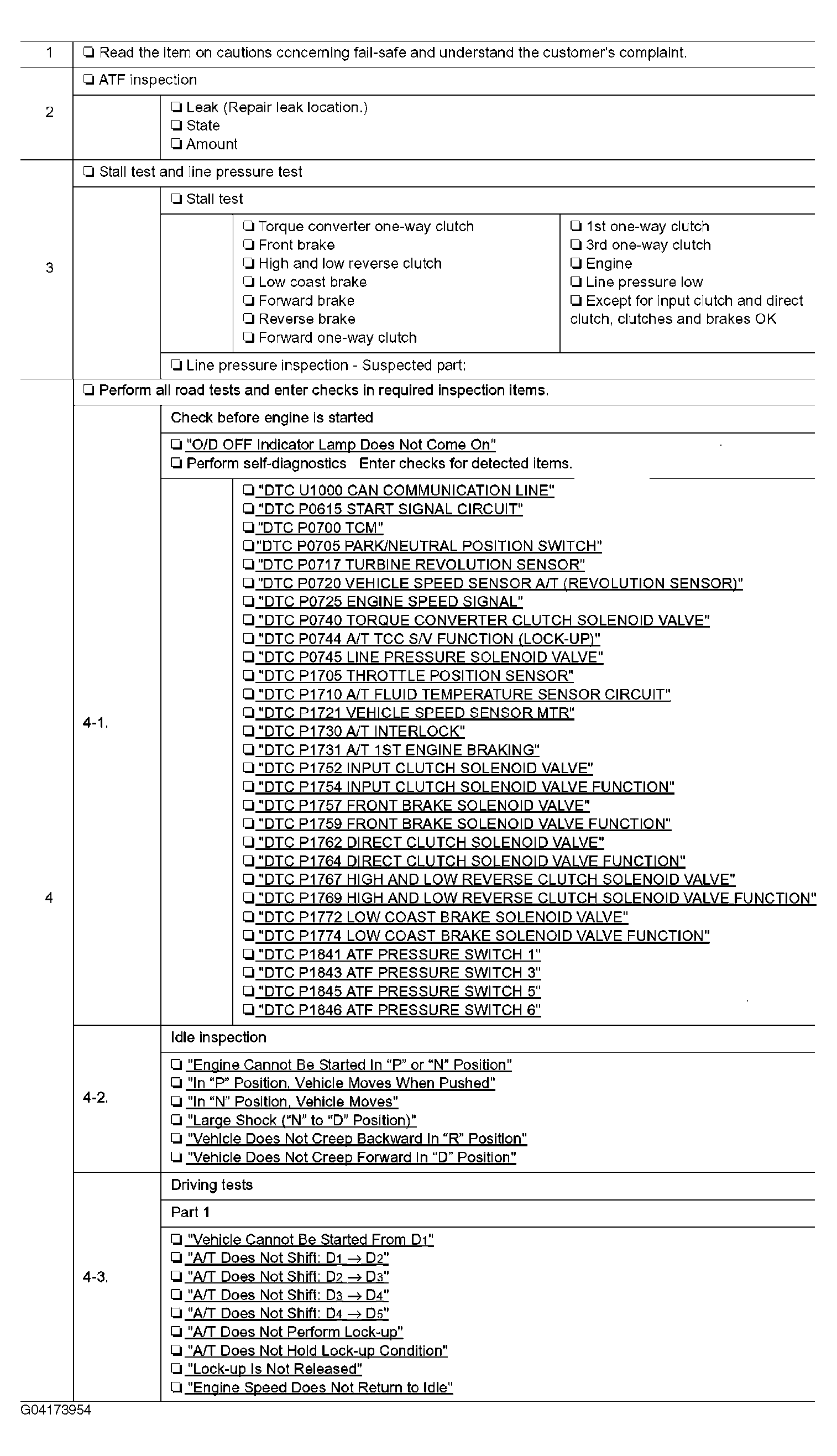

Fig 2: Identifying Diagnostic Worksheet Chart (1 Of 2)
G04173954Courtesy of NISSAN MOTOR CO., U.S.A.

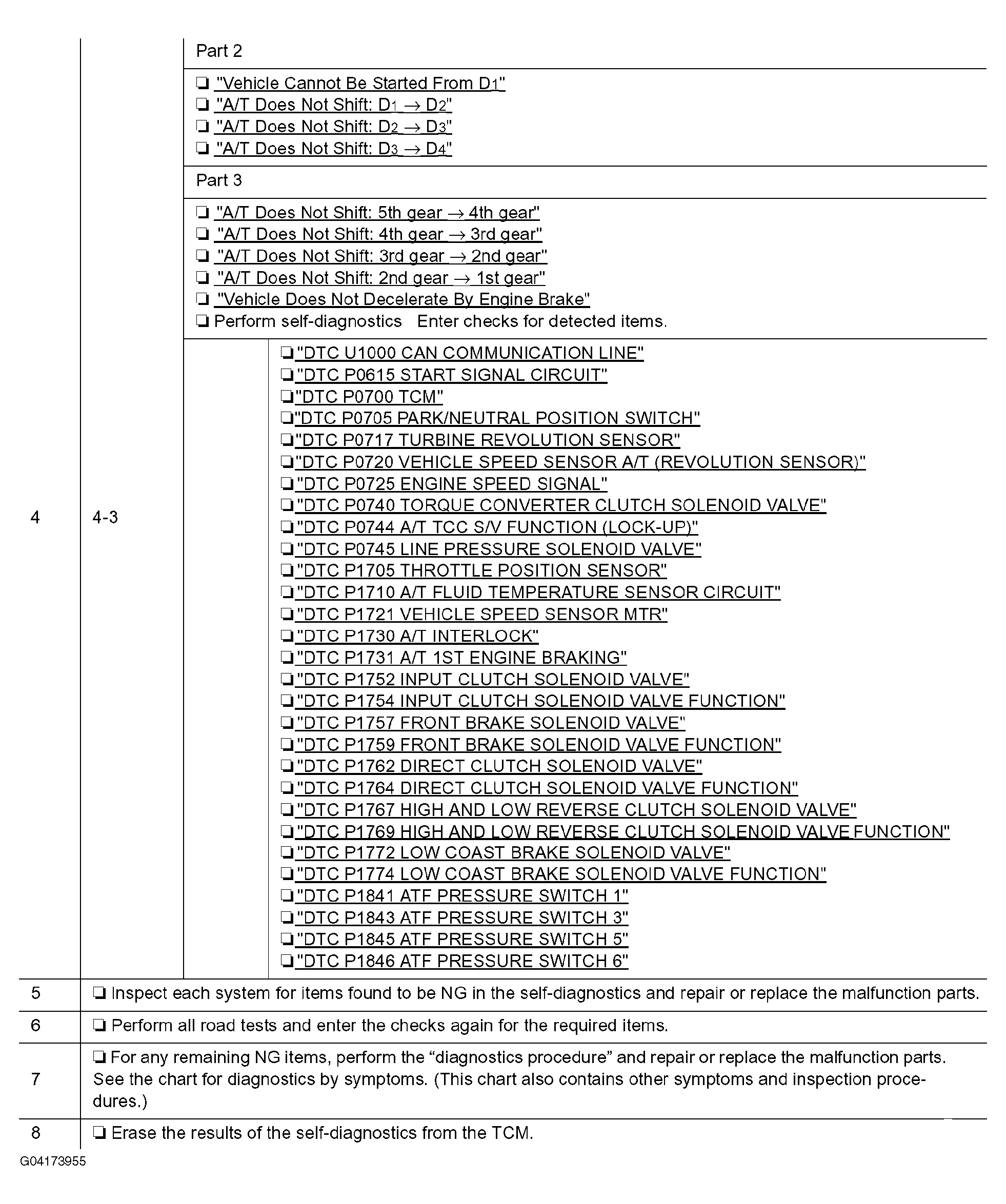

Fig 3: Identifying Diagnostic Worksheet Chart (2 Of 2)
G04173955Courtesy of NISSAN MOTOR CO., U.S.A.
