A/T Electrical Parts Location

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

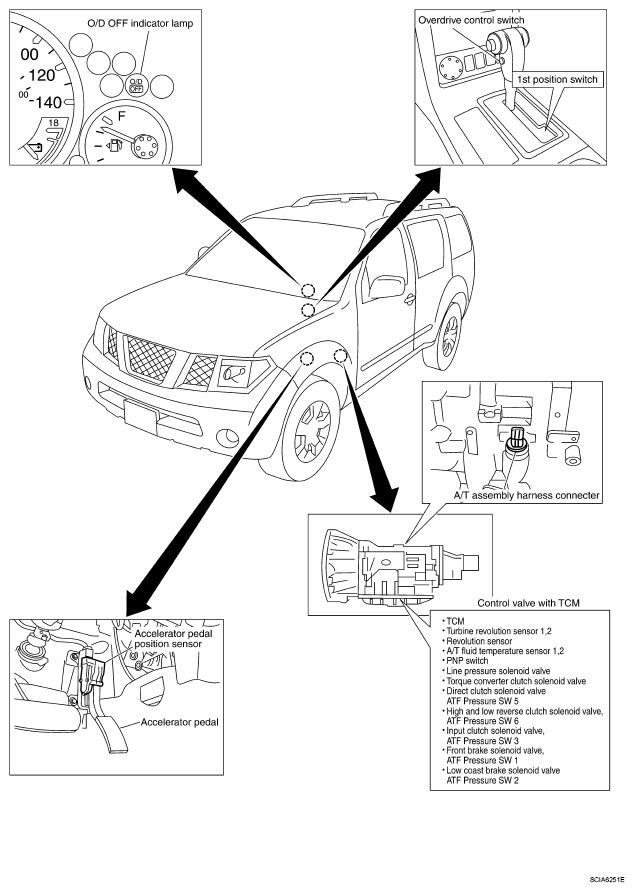

Fig 1: Identifying A/T Electrical Parts Location
G04909580
