How To Erase DTC (With Consult-II)

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

If a DTC is displayed for both ECM and TCM, it is necessary to be erased for both ECM and TCM.

If the ignition switch stays "ON" after repair work, be sure to turn ignition switch "OFF" once. Wait at least 10 seconds and then turn it "ON" (engine stopped) again.
Turn CONSULT-II "ON" and touch "A/T".
Touch "SELF-DIAG RESULTS".
Touch "ERASE". (The DTC in the TCM will be erased.) Then touch "BACK" twice.
Touch "ENGINE".
Touch "SELF-DIAG RESULTS".
Touch "ERASE". (The DTC in the ECM will be erased.)

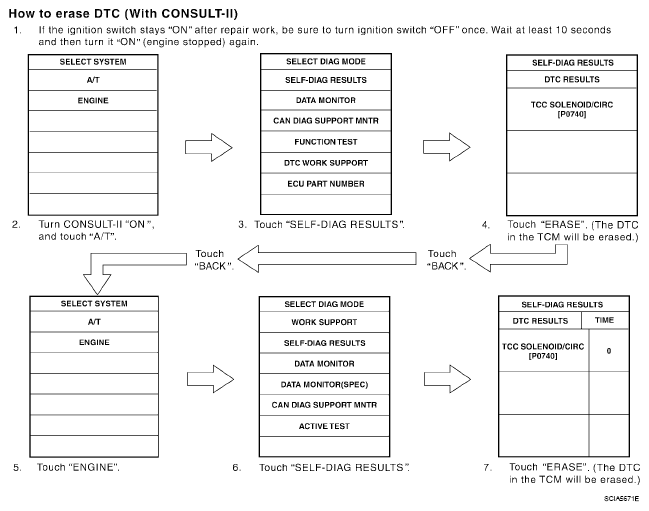

Fig 1: Identifying CONSULT-II DISPLAY - SELF-DIAG RESULTS Flow
