Removal and Installation

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

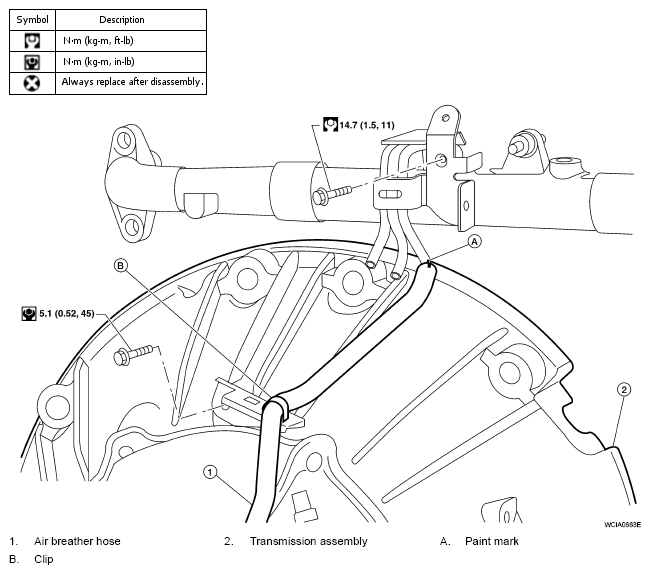

Fig 1: Air Breather Hose With Torque Specification (2WD Models)

CAUTION:

Install air breather hose with paint mark at upper side.
When installing the air breather hose, do not crush or block by folding or bending the hose.
When inserting the hose to the transmission tube, be sure to insert it fully until its end reaches the tube bend portion.
Make sure clip is securely installed to bracket.

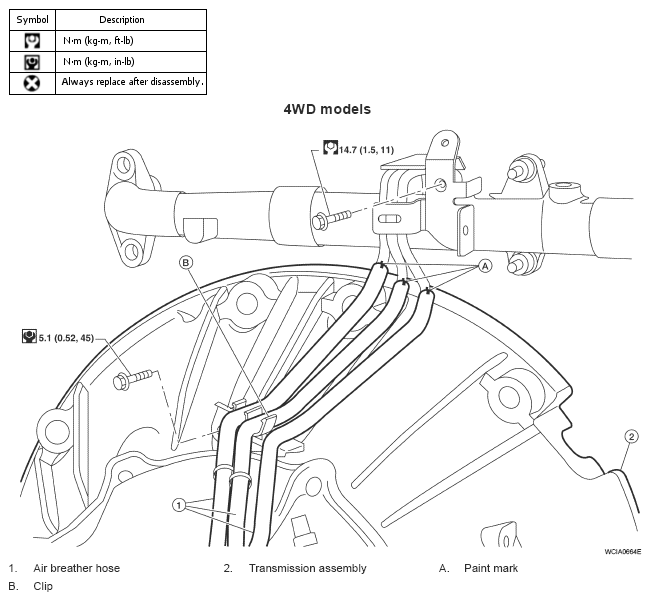

Fig 2: Air Breather Hose With Torque Specification (4WD Models)

CAUTION:

Install air breather hose with paint mark at upper side.
When installing the air breather hose, do not crush or block by folding or bending the hose.
When inserting the hose to the transmission tube, be sure to insert it fully until its end reaches the tube bend portion.
Make sure clip is securely installed to bracket.
