Wiring Diagram - A/T - SHIFT

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS -- PATHFINDER .

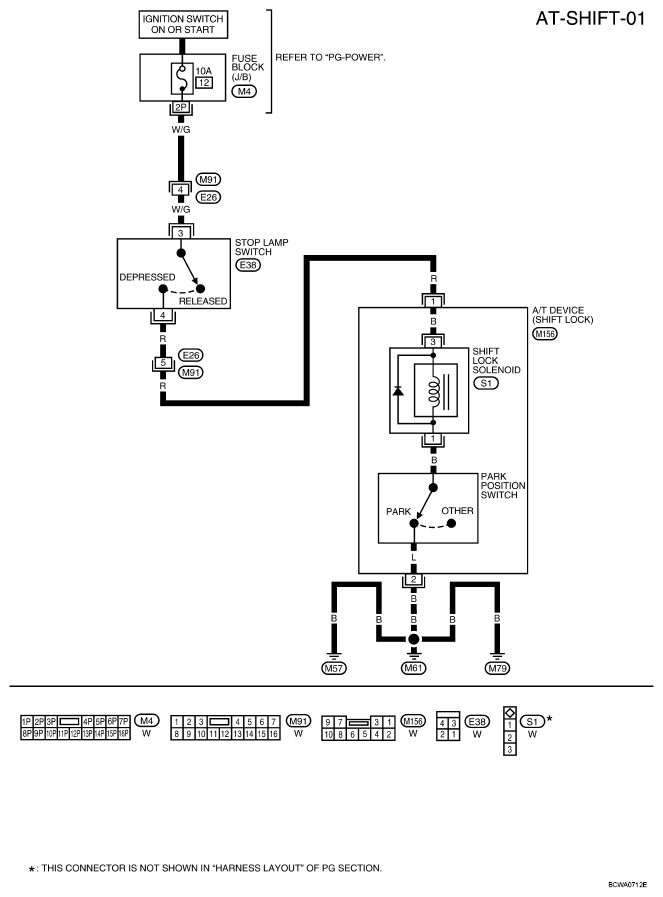

Fig 1: Identifying Wiring Diagram - A/T-SHIFT-01
G04909688
