Work Flow
WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

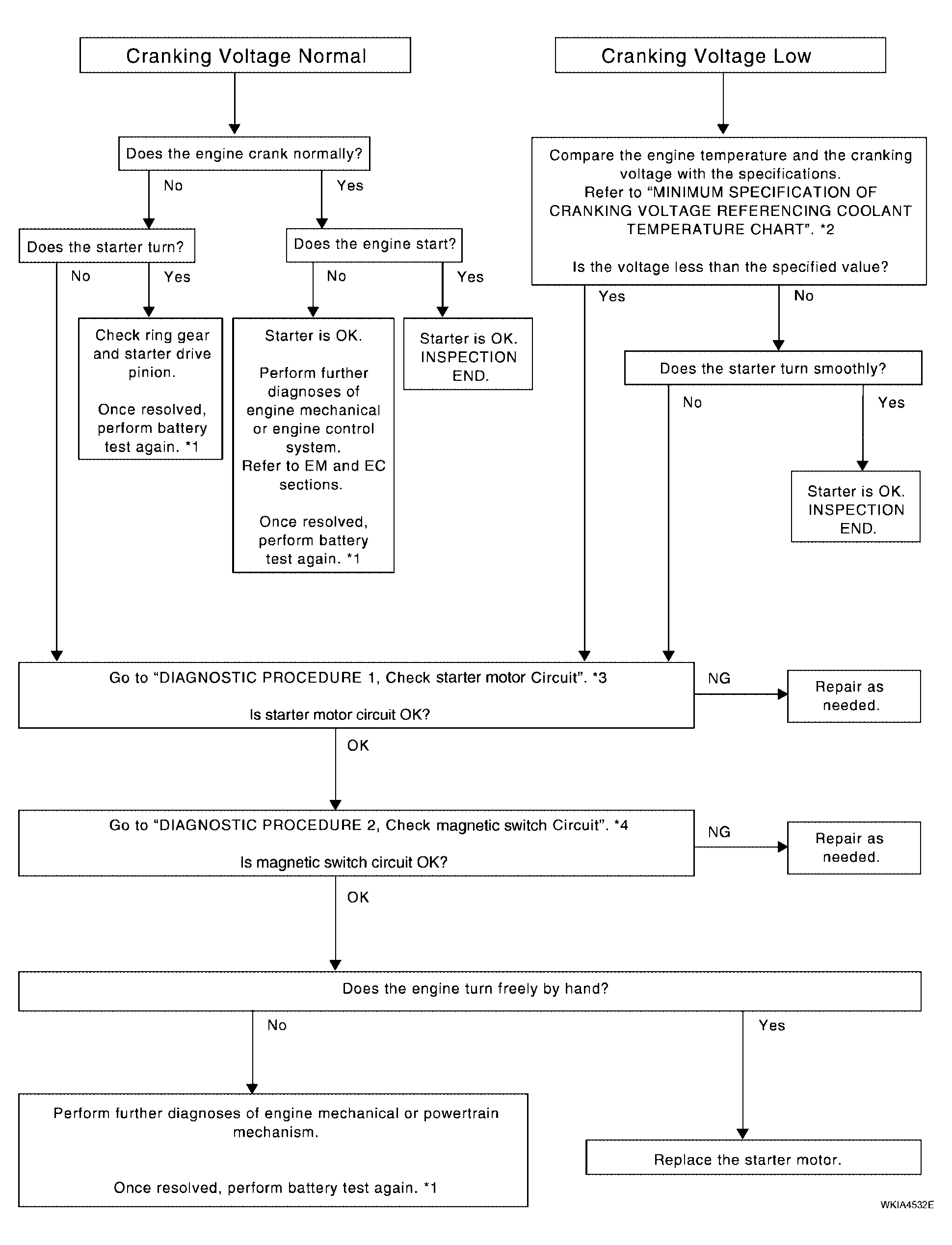

Work Flow References
| Footnote (See Fig 1) | Description |
|---|---|
| *1 | Trouble Diagnoses with Battery/Starting/Charging System Tester |
| *2 | DIAGNOSTIC PROCEDURE 1 |
| *3 | DIAGNOSTIC PROCEDURE 2 |
| *4 | DIAGNOSTIC PROCEDURE 2 |
