Exhaust Manifold
WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
- If stud bolts were removed, install them and tighten to the specified torque.
Exhaust manifold stud torque : 14.7 N.m (1.5 kg-m, 11 ft-lb)

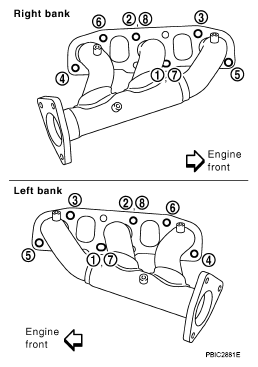

- Install exhaust manifold and tighten nuts in numerical order as shown below.NOTE: Tighten nuts No. 1 and 2 in two steps. The numerical order No. 7 and 8 shown below second step.
