Ignition Power Supply - Ignition SW. In On And/Or Start
WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

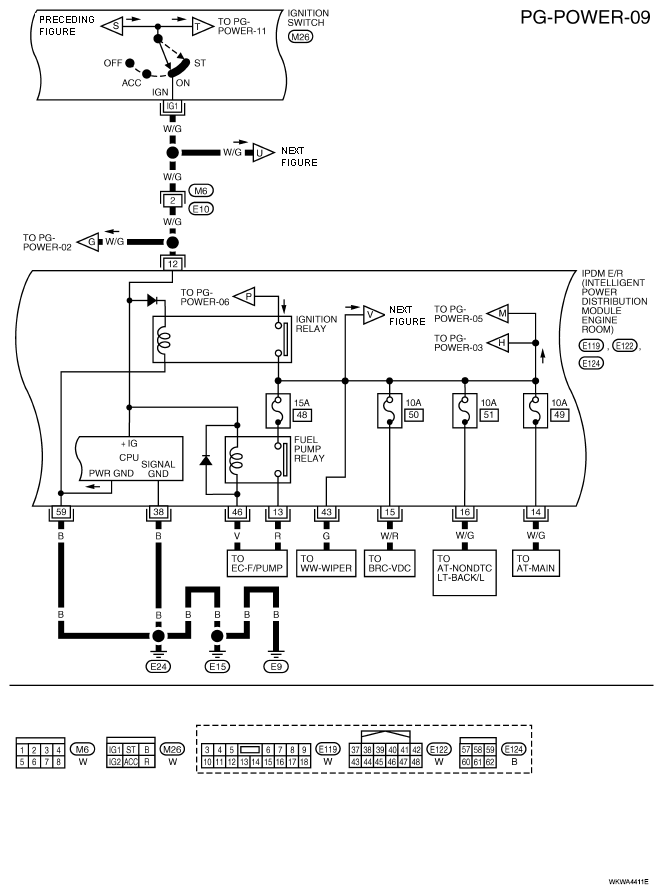

Fig 1: Identifying Wiring Diagram (Ignition Switch In ON And Start) - PG-POWER-09

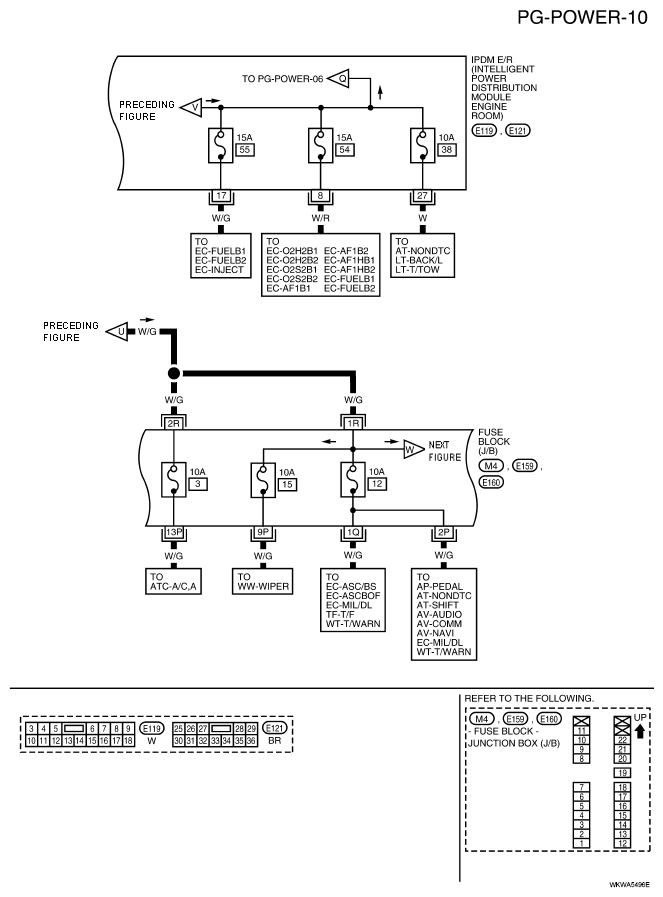

Fig 2: Identifying Wiring Diagram (Ignition Switch In ON And Start) - PG-POWER-10
