Power Supply Routing Circuit: Schematic

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For detailed ground distribution, refer to "GROUND DISTRIBUTION ".

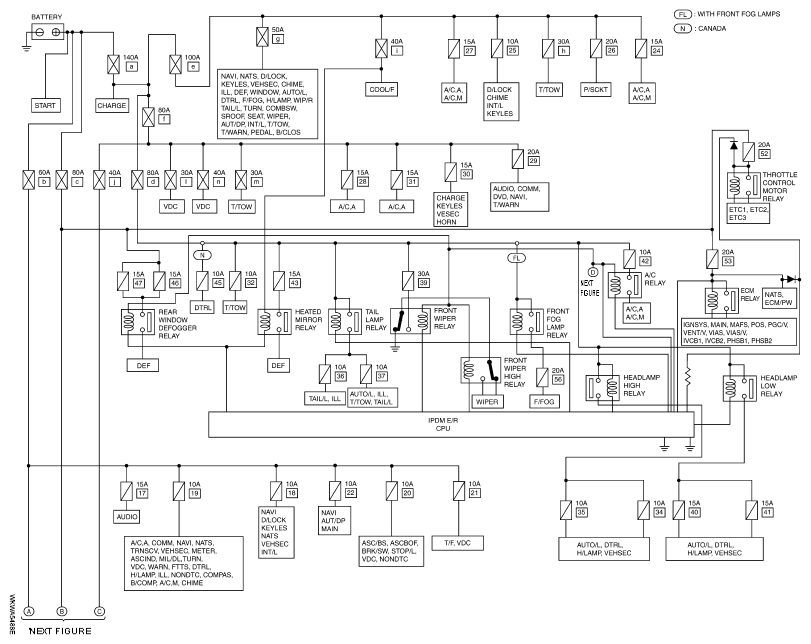

Fig 1: Identifying Power Supply Routing Circuit - Schematic Diagram (1 Of 2)

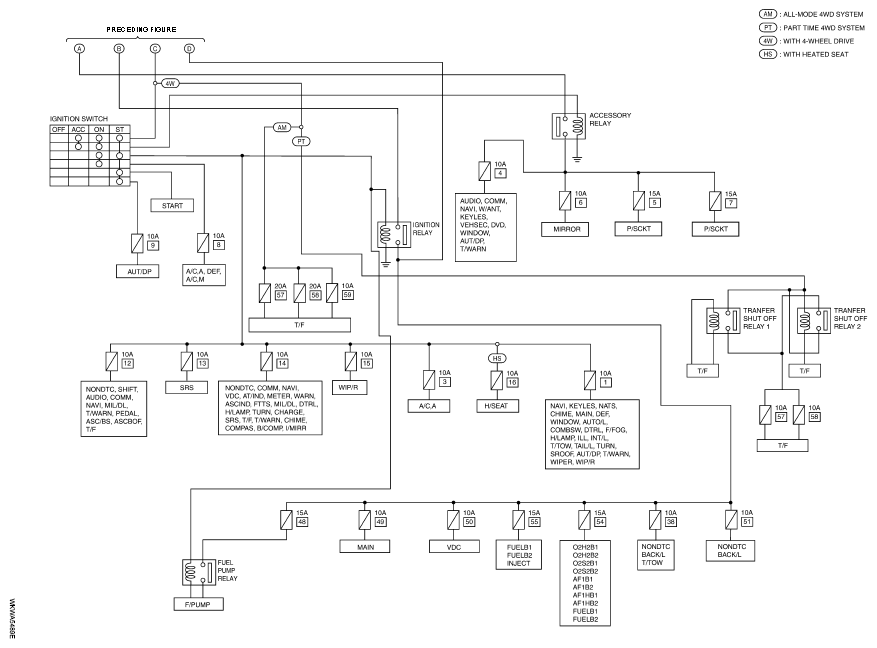

Fig 2: Identifying Power Supply Routing Circuit - Schematic Diagram (2 Of 2)
