Inspection In Auto Active Test Mode: Notes
WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
When auto active test mode is actuated, the following six steps are repeated three times.

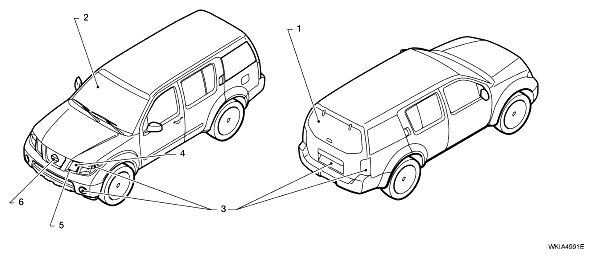

TEST ITEM AND OPERATION TIME REFERENCE
| Item Number | Test Item | Operation Time/Frequency |
|---|---|---|
| 1 | Rear window defogger | 10 seconds |
| 2 | Front wipers | LOW 5 seconds then HIGH 5 seconds |
| 3 | Tail, license plate, front fog and parking lamps | 10 seconds |
| 4 | Headlamps | Low ON for 10 seconds, then High ON-OFF five times. |
| 5 | A/C compressor (magnet clutch) | ON-OFF 5 times |
| 6 | Cooling fan | LOW for 5 seconds, then HIGH for 5 seconds |
