Room Lamp Harness
WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

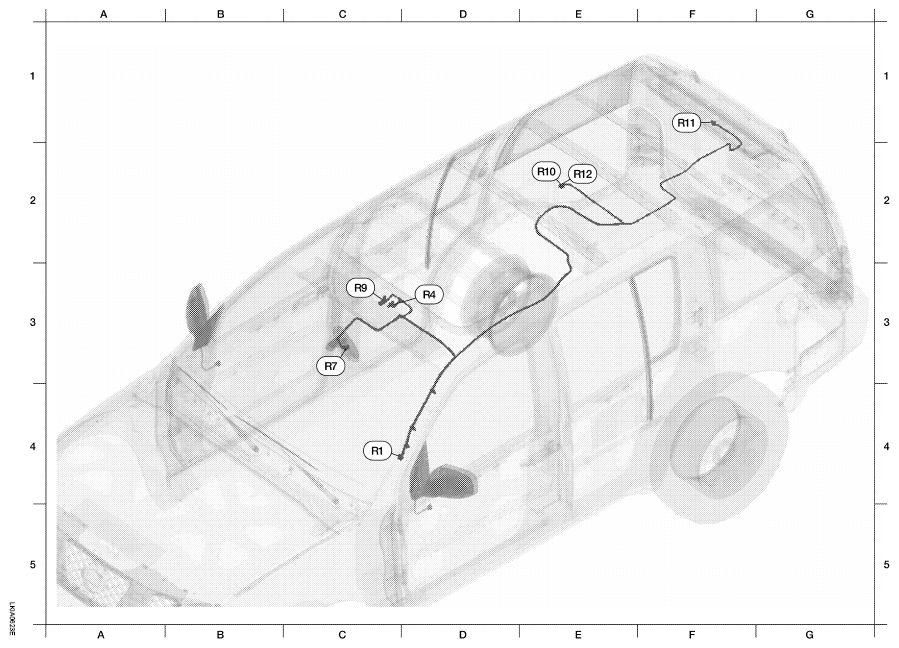

ROOM LAMP HARNESS DESCRIPTION
| C4 | R1 | W/12 | : To M1 | ||||
| D3 | R4 | W/3 | : Sunroof switch | ||||
| C3 | R7 | W/7 | : Auto anti-dazzling inside mirror (without HOMELINK® universal transceiver) | ||||
| C3 | R7 | B/10 | : Auto day/night inside mirror (with HOMELINK® universal transceiver) | ||||
| C3 | R9 | W/3 | : Front room/map lamp assembly | ||||
| E2 | R10 | W/3 | : Personal lamp 2nd row | ||||
| F1 | R11 | W/2 | : Cargo lamp | ||||
| E2 | R12 | W/3 | : Room lamp 2nd row |
