Rear Door RH Harness
WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

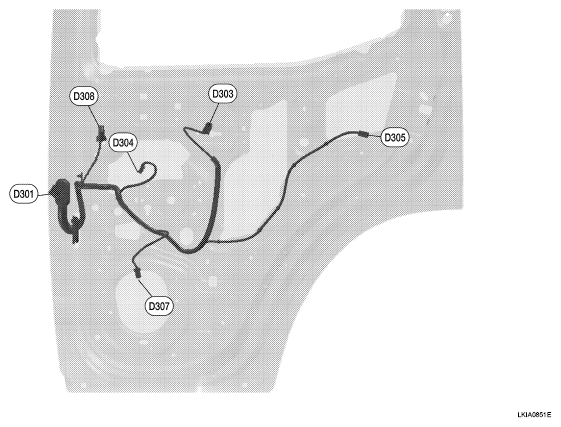

REAR DOOR RH HARNESS DESCRIPTION
| D301 |
W/12 |
: To B106 |
D307 |
W/2 |
: Rear door speaker RH (without BOSE) |
| D303 |
W/8 |
: Rear power window switch RH |
D307 |
BR/2 |
: Rear door speaker RH (with BOSE) |
| D304 |
B/2 |
: Rear power window motor RH |
D308 |
BR/2 |
: Rear door tweeter RH |
| D305 |
W/2 |
: Rear door lock actuator RH |
|
|
|
