Rear Door LH Harness
WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

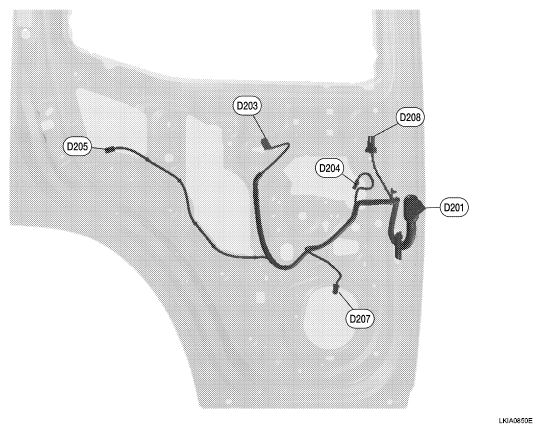

REAR DOOR LH HARNESS DESCRIPTION
| D201 |
W/12 |
: To B6 |
D207 |
W/2 |
: Rear door speaker LH (without BOSE) |
| D203 |
W/8 |
: Rear power window switch LH |
D207 |
BR/2 |
: Rear door speaker LH (with BOSE) |
| D204 |
B/2 |
: Rear power window motor LH |
D208 |
BR/2 |
: Rear door tweeter LH |
| D205 |
W/2 |
: Rear door lock actuator LH |
|
|
|
