Main Harness
WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

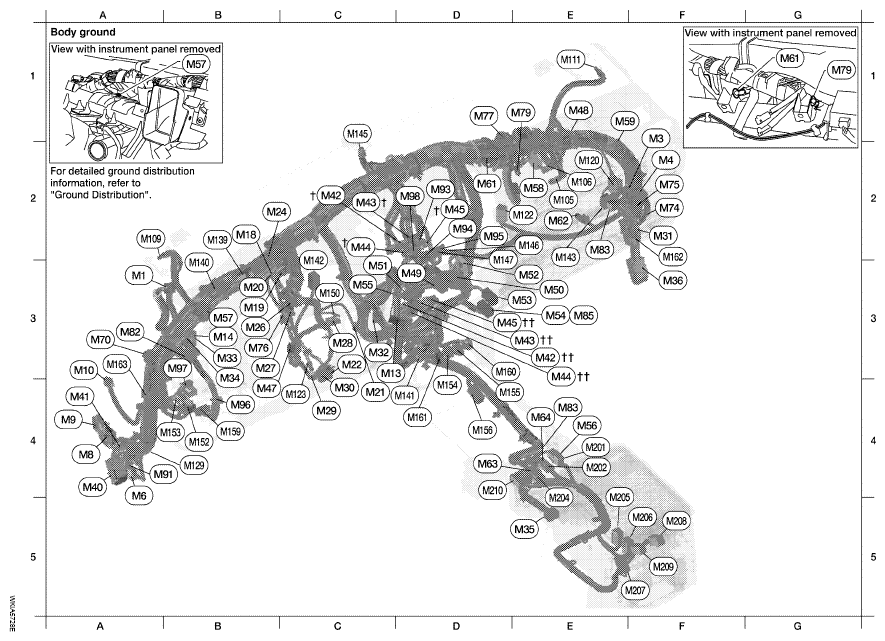

MAINE HARNESS
| A3 | M1 | W/12 | : To R1 | C2 | M51 | W/8 | : Front blower switch |
| F2 | M3 | W/8 | : Fuse block (J/B) | E3 | M52 | W/8 | : Rear blower switch (front) |
| F2 | M4 | W/16 | : Fuse block (J/B) | E3 | M53 | B/2 | : Power socket |
| A5 | M6 | W/8 | : To E10 | E3 | M54 | GR/2 | : Power socket |
| A4 | M8 | W/16 | : To D2 | C3 | M55 | W/4 | : Hazard switch |
| A4 | M9 | W/24 | : To D1 | E4 | M56 | W/16 | : To M201 |
| A3 | M10 | Y/4 | : To E29 | B3 | M57 | - | : Body ground |
| C3 | M13 | W/3 | : Front passenger air bag OFF indicator | E2 | M58 | B/6 | : Intake door motor |
| B3 | M14 | W/16 | : Pedal adjusting control unit | E2 | M59 | BR/2 | : Glove box lamp |
| B2 | M18 | W/40 | : BCM (body control module) | D2 | M61 | - | : Body ground |
| B3 | M19 | W/15 | : BCM (body control module) | E3 | M62 | B/2 | : Front blower motor |
| B3 | M20 | B/15 | : BCM (body control module) | D4 | M63 | W/6 | : To M204 |
| C4 | M21 | W/4 | : NATS antenna amp. | D4 | M64 | W/6 | : To M202 |
| C3 | M22 | W/16 | : Data link connector | A3 | M70 | BR/1 | : To M350 (with Sirius satellite tuner) |
| B2 | M24 | W/40 | : Combination meter | A3 | M70 | V/1 | : To M350 (with XM satellite tuner) |
| B3 | M26 | W/6 | : Ignition switch | F2 | M74 | W/16 | : To D102 |
| B3 | M27 | W/2 | : Key switch | F2 | M75 | W/12 | : To D101 |
| C3 | M28 | W/16 | : Combination switch | B3 | M76 | W/6 | : Electric brake (pre-wiring) |
| C4 | M29 | Y/6 | : Combination switch (spiral cable) | D2 | M77 | Y/4 | : Front passenger air bag module (service replacement) |
| C4 | M30 | GR/8 | : Combination switch (spiral cable) | E1 | M79 | - | : Body ground |
| F2 | M31 | SMJ | : To E152 | A3 | M82 | W/2 | : Circuit breaker-2 |
| C3 | M32 | W/4 | : In-vehicle sensor | E4 | M83 | W/4 | : To B142 |
| B3 | M33 | W/32 | : Automatic drive positioner control unit | B4 | M91 | W/16 | : To E26 |
| B4 | M34 | W/16 | : Automatic drive positioner control unit | D2 | M93 | W/24 | : Display unit |
| E5 | M35 | Y/28 | : Air bag diagnosis sensor unit | D2 | M94 | W/24 | : Display control unit (with NAVI) |
| F3 | M36 | SMJ | : To B149 | D2 | M95 | W/32 | : Display control unit (with NAVI) |
| A4 | M40 | SMJ | : To B69 | B4 | M96 | BR/6 | : Pedal adjusting switch |
| A4 | M41 | W/12 | : Pre-wiring for satellite radio tuner | B4 | M97 | BR/5 | : Heated seat relay |
| A4 | M41 | W/12 | : Satellite radio tuner | D2 | M98 | W/16 | : AV switch |
| C2 | M42 (t) | W/12 | : Audio unit (without NAVI) | E2 | M105 | Y/2 | : Front passenger air bag module |
| E3 | M42 (tt) | W/12 | : Audio unit (with NAVI) | E2 | M106 | O/2 | : Front passenger air bag module |
| C2 | M43 (t) | W/10 | : Audio unit (without NAVI) | B2 | M109 | BR/2 | : Front tweeter LH |
| E3 | M43 (tt) | W/10 | : Audio unit (with NAVI) | E1 | M111 | BR/2 | : Front tweeter RH |
| C2 | M44 (t) | W/6 | : Audio unit (without NAVI) | E2 | M120 | W/4 | : Remote keyless entry receiver |
| E3 | M44 (tt) | W/6 | : Audio unit (with NAVI) | E2 | M122 | W/4 | : Variable blower control (with ATC) |
| D2 | M45 (t) | W/16 | : Audio unit (without NAVI) | E2 | M122 | B/4 | : Front blower motor resistor (with MTC) |
| D3 | M45 (tt) | W/16 | : Audio unit (with NAVI) | C4 | M123 | W/2 | : Tire pressure warning check connector |
| B4 | M47 | W/8 | : Steering angle sensor | B4 | M129 | BR/1 | : Satellite radio tuner (with Sirius satellite tuner) |
| E1 | M48 | BR/2 | : To M501 | B4 | M129 | V/1 | : Satellite radio tuner (with XM satellite tuner) |
| D3 | M49 | B/26 | : Front air control | B3 | M139 | B/2 | : Diode-1 |
| E3 | M50 | W/18 | : Front air control | B3 | M140 | B/2 | : Diode-2 |
| D4 | M141 | GR/8 | : 4WD shift switch | ||||
| C3 | M142 | B/6 | : Mode door motor | ||||
| E3 | M143 | B/6 | : Air mix door motor (passenger) | ||||
| C1 | M145 | B/4 | : Optical sensor | ||||
| E2 | M146 | W/2 | : Intake sensor | ||||
| D2 | M147 | B/6 | : Air mix door motor (driver) (with ATC) | ||||
| D2 | M147 | B/6 | : Air mix door motor (front) (with MTC) | ||||
| C3 | M150 | BR/2 | : Ignition keyhole illumination | ||||
| B4 | M152 | W/26 | : Transfer case control unit (part time 4WD) | ||||
| B4 | M153 | W/24 | : Transfer case control unit (part time 4WD) | ||||
| D4 | M153 | G/24 | : Transfer case control unit (all-mode 4WD) | ||||
| B4 | M153 | W/24 | : Transfer case control unit (part time 4WD) | ||||
| D4 | M153 | G/24 | : Transfer case control unit (all-mode 4WD) | ||||
| D4 | M154 | GR/6 | : VDC off switch | ||||
| E4 | M155 | W/8 | : HDC switch | ||||
| D4 | M156 | W/10 | : A/T device | ||||
| B2 | M157 | W/2 | : Diode-5 | ||||
| B4 | M159 | W/16 | : Door mirror remote control switch | ||||
| D4 | M160 | BR/6 | : Front heated seat switch RH | ||||
| D4 | M161 | BR/6 | : Front heated seat switch LH | ||||
| F2 | M162 | W/2 | : To B131 | ||||
| A3 | M163 | BR/6 | : Rear blower motor relay | ||||
| Console sub-harness | |||||||
| E4 | M201 | W/16 | : To M56 | ||||
| E4 | M202 | W/6 | : To M64 | ||||
| D4 | M204 | W/6 | : To M63 | ||||
| E5 | M205 | GR/16 | : DVD player | ||||
| E5 | M206 | L/16 | : DVD player | ||||
| F5 | M207 | B/2 | : Console power socket | ||||
| F5 | M208 | GR/5 | : Rear air control | ||||
