Front Door LH Harness
WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

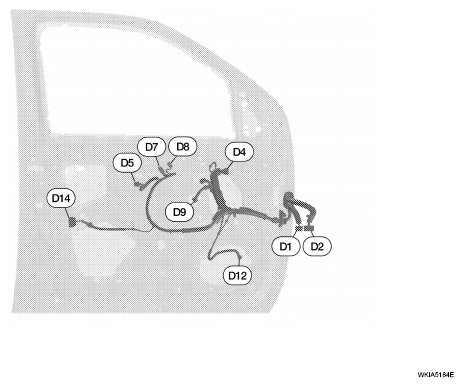

FRONT DOOR LH HARNESS DESCRIPTION
| D1 | W/24 | : To M9 | D9 | B/6 | : Front power window motor LH |
| D2 | W/16 | : To M8 | D12 | W/2 | : Tweeter LH |
| D4 | B/10 | : Door mirror LH (with heated mirrors) | D14 | GR/6 | : Front door lock assembly LH |
| D4 | B/3 | : Door mirror LH (without heated mirrors) | |||
| D5 | W/8 | : Seat memory switch | |||
| D7 | W/16 | : Main power window and door lock/unlock switch | |||
| D8 | W/3 | : Main power window and door lock/unlock switch |
