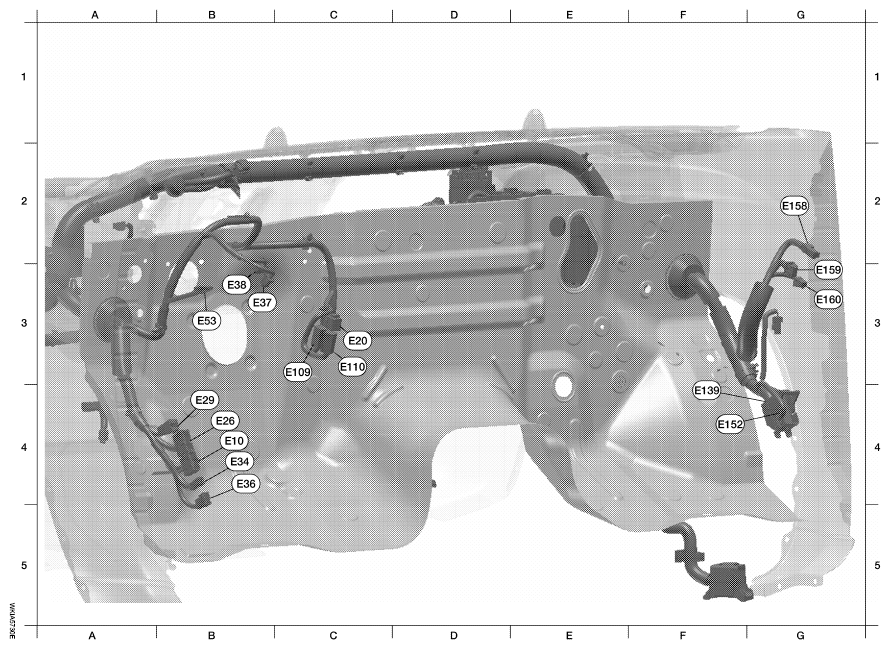

ENGINE ROOM HARNESS DESCRIPTION - PASSENGER COMPARTMENT
| B4 | E10 | W/6 | : To M6 | ||||
| C3 | E20 | B/6 | : Accelerator pedal position (APP) sensor | ||||
| B4 | E26 | W/16 | : To M91 | ||||
| B4 | E29 | Y/4 | : To M10 | ||||
| B4 | E34 | W/8 | : To B40 | ||||
| B4 | E36 | W/2 | : To B42 | ||||
| B3 | E37 | BR/2 | : ASCD brake switch | ||||
| B3 | E38 | W/4 | : Stop lamp switch | ||||
| B3 | E53 | B/1 | : Park brake switch | ||||
| C3 | E109 | GR/2 | : Pedal adjusting motor | ||||
| C3 | E110 | W/4 | : Pedal adjusting motor | ||||
| F3 | E139 | W/8 | : To B107 | ||||
| F4 | E152 | SMJ | : To M31 | ||||
| G2 | E158 | B/1 | : Fuse block (J/B) | ||||
| G3 | E159 | B/2 | : Fuse block (J/B) | ||||
| G3 | E160 | W/8 | : Fuse block (J/B) |
