Engine Compartment
WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
Refer to "ENGINE ROOM HARNESS (LH VIEW) " for continuation of engine room harness.

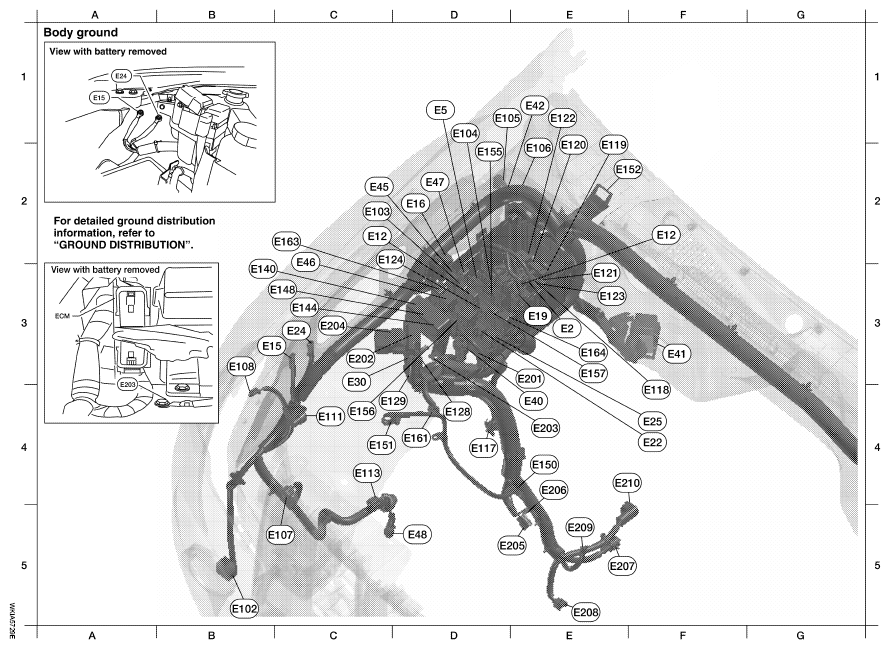

ENGINE ROOM HARNESS DESCRIPTION - ENGINE COMPARTMENT (RH VIEW)
| E3 | E2 | W/16 | : To F32 | E3 | E123 | BR/8 | : IPDM E/R (intelligent power distribution module engine room) |
| D1 | E5 | W/24 | : To F14 | D2 | E124 | B/6 | : IPDM E/R (intelligent power distribution module engine room) |
| F2 | E12 | L/5 | : Stop lamp relay | D4 | E128 | GR/2 | : Fusible link box (battery) |
| C3 | E15 | - | : Body ground | D4 | E129 | BR/2 | : Fusible link box (battery) |
| D2 | E16 | B/40 | : ECM | B3 | E140 | BR/6 | : Trailer tow relay 2 |
| E3 | E19 | W/16 | : To F33 | C3 | E144 | L/4 | : Heater pump relay |
| F4 | E22 | BR/6 | : Front blower motor relay | C3 | E148 | L/4 | : Trailer tow relay 1 |
| C3 | E24 | - | : Body ground | E4 | E150 | - | : Battery ground |
| F4 | E25 | BR/6 | : Rear blower motor relay | C4 | E151 | - | : Negative battery cable |
| C3 | E30 | - | : Fusible link box (battery) | D2 | E155 | L/4 | : Transfer shut off relay (all-mode 4WD) |
| E4 | E40 | GR/9 | : To E201 | C4 | E156 | L/4 | : Transfer shut off relay 1 (part time 4WD) |
| F3 | E41 | SMJ | : To C1 (located RH rear of engine compartment) | E3 | E157 | L/4 | : Transfer shut off relay 2 (part time 4WD) |
| E1 | E42 | - | : Relay box | D4 | E161 | B/3 | : Battery current sensor |
| C2 | E45 | BR/6 | : Back-up lamp relay | C2 | E163 | L/4 | : Trailer turn relay RH |
| C2 | E46 | B/5 | : Transfer shift high relay | E3 | E164 | L/4 | : Trailer turn relay LH |
| D2 | E47 | B/5 | : Transfer shift low relay | Generator sub-harness | |||
| D5 | E48 | B/3 | : Refrigerant pressure sensor | E3 | E201 | GR/9 | : To E40 |
| F1 | E51 | W/2 | : To B104 | C3 | E202 | B/1 | : Fusible link box (battery) |
| B5 | E102 | B/2 | : Front fog lamp RH | E4 | E203 | - | : Body ground |
| C2 | E103 | B/5 | : Daytime light relay 1 | C3 | E204 | - | : Battery (positive) starter |
| D1 | E104 | L/4 | : Daytime light relay 2 | D5 | E205 | GR/3 | : Generator |
| D1 | E105 | B/2 | : Front and rear washer motor | E4 | E206 | - | : Generator |
| E2 | E106 | BR/2 | : Washer fluid level switch | E4 | E207 | GR/1 | : Starter motor |
| C5 | E107 | B/3 | : Front headlamp RH | D5 | E208 | GR/3 | : Oil pressure switch |
| B3 | E108 | GR/2 | : Front side marker lamp RH | E5 | E209 | - | : Generator |
| C4 | E111 | GR/3 | : Front turn signal/parking lamp RH | F5 | E210 | - | : Starter motor |
| C4 | E113 | GR/4 | : Cooling fan motor | ||||
| D4 | E117 | GR/2 | : Front wheel sensor RH | ||||
| F4 | E118 | B/2 | : IPDM E/R (intelligent power distribution module engine room) | ||||
| F2 | E119 | W/18 | : IPDM E/R (intelligent power distribution module engine room) | ||||
| E2 | E120 | W/6 | : IPDM E/R (intelligent power distribution module engine room) | ||||
| E3 | E121 | BR/12 | : IPDM E/R (intelligent power distribution module engine room | ||||
| E1 | E122 | W/12 | : IPDM E/R (intelligent power distribution module engine room) | ||||
