Engine Compartment

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

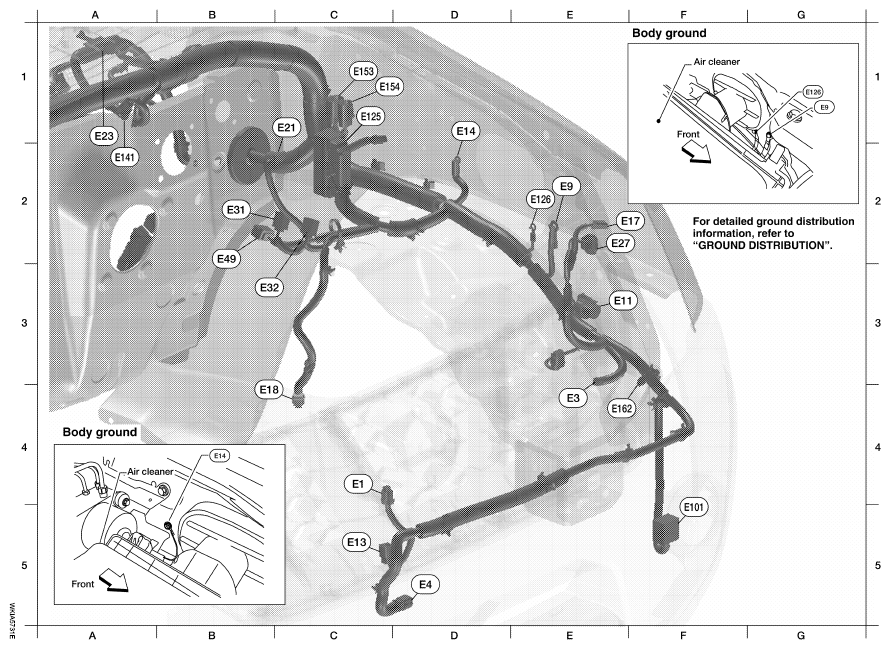

Fig 1: Identifying Engine Room Harness - Engine Compartment (LH View)

Refer to "ENGINE ROOM HARNESS (RH VIEW) " for continuation of engine room harness.

ENGINE ROOM HARNESS DESCRIPTION - ENGINE COMPARTMENT (LH VIEW)

C4	E1	B/2	: Ambient sensor 1
E4	E3	B/1	: Horn (without dual note horn)
E4	E3	B/2	: Horn (with dual note horn)
D5	E4	Y/2	: Crash zone sensor
E2	E9	-	: Body ground
E3	E11	B/3	: Front headlamp LH
C5	E13	GR/2	: Ambient sensor 2
D1	E14	-	: Body ground
F2	E17	GR/2	: Front side marker lamp LH
B4	E18	GR/2	: Front wheel sensor LH
C1	E21	GR/2	: Brake fluid level switch
A1	E23	GR/5	: Front wiper motor
E2	E27	GR/3	: Front turn signal/park lamp LH
B2	E31	B/3	: Front pressure sensor
C3	E32	B/3	: Rear pressure sensor
B3	E49	B/6	: Active booster
F5	E101	B/2	: Front fog lamp LH
C1	E125	B/47	: ABS actuator and electric unit (control unit)
E2	E126	-	: Body ground
A2	E141	B/2	: Heater pump
C1	E153	W/2	: Transfer motor relay (all-mode 4WD)
C1	E154	W/2	: Transfer motor relay (all-mode 4WD)
E4	E162	B/1	: Horn
