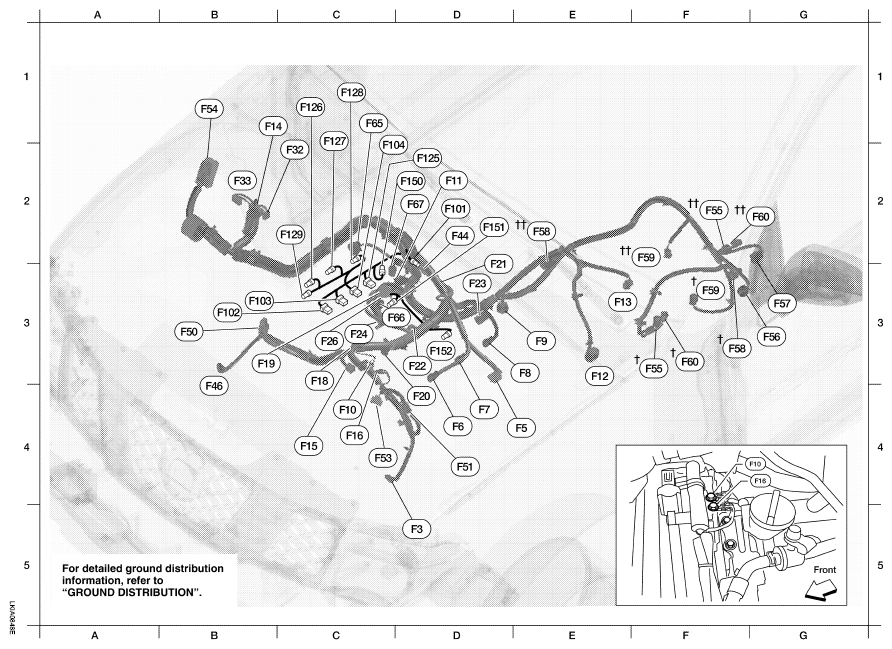

Engine Control Harness
WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
PASSENGER COMPARTMENT SPECIFICATION
| D5 | F3 | B/1 | : A/C Compressor | E2 | F58 (tt) | GR/6 | : Transfer control device (all-mode 4WD) |
| E4 | F5 | B/6 | : Air fuel ratio (A/F) sensor 1 (bank 2) | F3 | F59 (t) | GR/2 | : Wait detection switch (part time 4WD) |
| D4 | F6 | GR/3 | : Ignition coil No. 2 (with power transistor) | F2 | F59 (tt) | B/2 | : Wait detection switch (all mode 4WD) |
| D4 | F7 | GR/3 | : Ignition coil No. 4 (with power transistor) | G2 | F60 (tt) | GR/2 | : 4LO switch (part time 4WD) |
| E3 | F8 | GR/3 | : Ignition coil No. 6 (with power transistor) | C3 | F60 (t) | GR/2 | : 4LO switch (all-mode 4WD) |
| E3 | F9 | G/10 | : A/T assembly | F65 | B/6 | : Air fuel ratio (A/F) sensor 1 (bank 1) | |
| C4 | F10 | - | : Engine ground | D3 | F66 | GR/3 | : Camshaft position sensor (PHASE) (bank 1) |
| D2 | F11 | B/3 | : Crankshaft position sensor (POS) | D2 | F67 | L/4 | : To F150 |
| E3 | F12 | G/4 | : Heated oxygen sensor 2 (bank 2) | Injector sub-harnes | |||
| E3 | F13 | L/4 | : Heated oxygen sensor 2 (bank 1) | D2 | F101 | GR/4 | : To F44 |
| B1 | F14 | W/24 | : To E5 | B3 | F102 | GR/2 | : Fuel injector No. 1 |
| C4 | F15 | L/2 | : EVAP canister purge volume control solenoid valve | B3 | F103 | GR/2 | : Fuel injector No. 3 |
| C4 | F16 | - | : Engine ground | C1 | F104 | GR/2 | : Fuel injector No. 5 |
| C3 | F18 | GR/2 | : Fuel injector No. 2 | Ignition coil sub-harness | |||
| B3 | F19 | B/2 | : VIAS control solenoid valve | D2 | F125 | G/8 | : To F26 |
| D4 | F20 | GR/2 | : Fuel injector No. 4 | C1 | F126 | GR/3 | : Ignition coil No. 1 (with power transistor) |
| D2 | F21 | GR/2 | : Condenser-1 | C1 | F127 | GR/3 | : Ignition coil No. 3 (with power transistor) |
| D3 | F22 | GR/2 | : Fuel injector No. 6 | C1 | F128 | GR/3 | : Ignition coil No. 5 (with power transistor) |
| D3 | F23 | B/3 | : Camshaft position sensor (PHASE) (bank 1) | C2 | F129 | G/2 | : Intake valve timing control solenoid valve (bank 1) |
| C3 | F24 | GR/2 | : Engine coolant temperature sensor | Knock sensor sub-harness | |||
| C3 | F26 | G/8 | : To F125 | D2 | F150 | L/4 | : To F67 |
| C3 | F27 | B/1 | : Starter motor | D2 | F151 | B/2 | : Knock sensor (bank 1) |
| C2 | F32 | W/16 | : To E2 | D3 | F152 | B/2 | : Knock sensor (bank 2) |
| B2 | F33 | W/16 | : To E19 | ||||
| B4 | F39 | - | : Fusible link box (battery) | ||||
| D2 | F44 | GR/4 | : To F101 | ||||
| B4 | F46 | B/3 | : Power steering pressure sensor | ||||
| B3 | F50 | B/6 | : Electric throttle control actuator | ||||
| D4 | F51 | G/2 | : Intake valve timing control solenoid valve (bank 2) | ||||
| C4 | F53 | B/6 | : Mass air flow sensor | ||||
| B1 | F54 | B/81 | : ECM | ||||
| F3 | F55 (t) | B/2 | : ATP switch (all-mode 4WD) | ||||
| F2 | F55 (tt) | B/2 | : ATP switch (part time 4WD) | ||||
| G3 | F56 | B/8 | : Terminal cord assembly (all-mode 4WD) | ||||
| G3 | F57 | B/2 | : Transfer motor (all-mode 4WD) | ||||
| F3 | F58 (t) | B/8 | : Transfer control device (part time 4WD) | ||||
