Body No. 2 Harness
WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

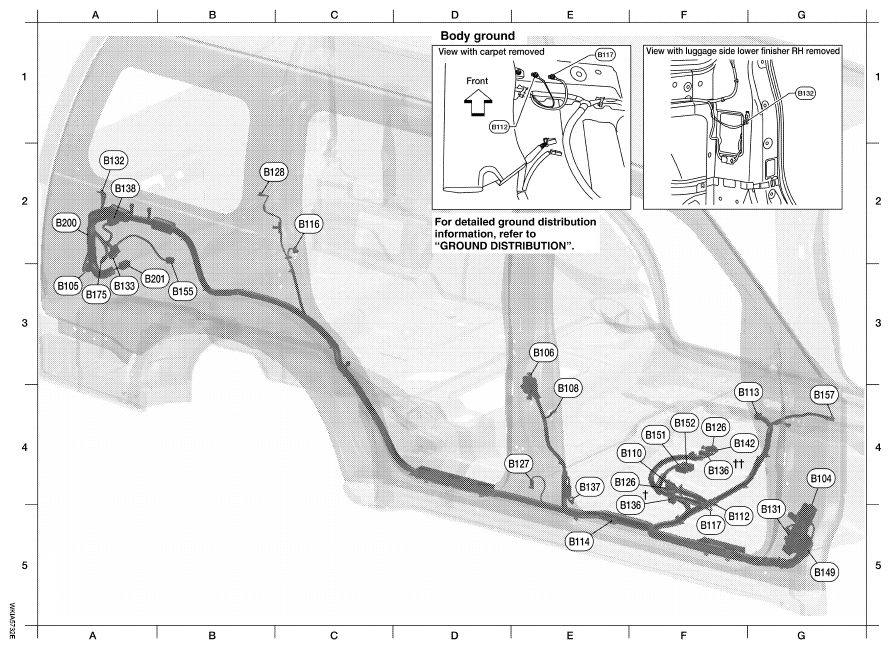

BODY NO 2 HARNESS DESCRIPTION
| G4 | B104 | W/2 | : To E51 | ||||
| A3 | B105 | W/6 | : Rear combination lamp RH | ||||
| E3 | B106 | W/12 | : To D301 | ||||
| E4 | B108 | W/3 | : Front door switch RH | ||||
| F4 | B110 | W/3 | : Seat belt buckle switch RH | ||||
| F5 | B112 | - | : RH side air bad satellite sensor (shield wire) | ||||
| G3 | B113 | Y/12 | : Air bag diagnosis sensor unit | ||||
| E5 | B114 | Y/2 | : RH side air bag (satellite) sensor | ||||
| C2 | B116 | W/3 | : Rear door switch RH | ||||
| F5 | B117 | - | : Body ground | ||||
| F4 | B126 | Y/2 | : Front RH side air bag module | ||||
| E4 | B127 | Y/2 | : Front RH seat belt pre-tensioner | ||||
| B2 | B128 | Y/2 | : RH side rear curtain air bag module | ||||
| G5 | B131 | W/2 | : To M162 | ||||
| A2 | B132 | - | : Body ground | ||||
| A3 | B133 | W/4 | : Rear blower motor resistor | ||||
| F4 | tB136 | W/16 | : To P151 (with power seat) | ||||
| F4 | ttB136 | W/8 | : To P151 (without power seat) | ||||
| E4 | B137 | B/3 | : Belt tension sensor | ||||
| A2 | B138 | B/2 | : Rear cargo power socket | ||||
| F4 | B142 | W/4 | : To M83 | ||||
| G5 | B149 | SMJ | : To M36 | ||||
| F4 | B151 | W/40 | : NAVI control unit (with NAVI) | ||||
| F4 | B152 | W/32 | : NAVI control unit (with NAVI) | ||||
| B3 | B155 | B/6 | : Air mix door motor (rear) | ||||
| G4 | B157 | Y/2 | : To B78 | ||||
| A3 | B175 | W/2 | : To B200 | ||||
| Rear blower motor sub-harness | |||||||
| A2 | B200 | W/2 | : To B175 | ||||
| B3 | B201 | B/2 | : Rear blower motor | ||||
