Back Door Harness
WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

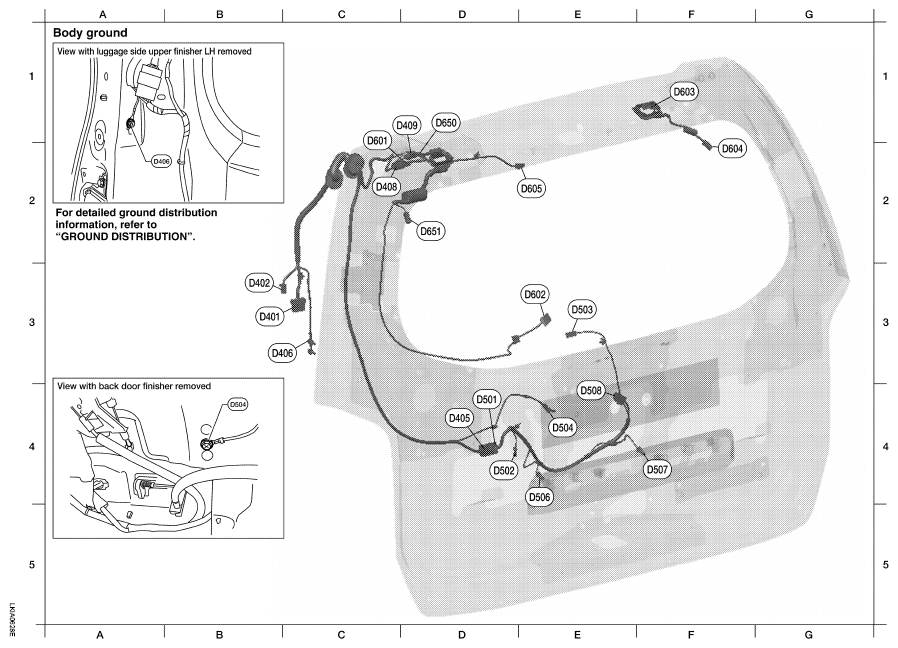

BACK DOOR HARNESS DESCRIPTION
| Back door No. 2 harness | |||||||
| B3 | D401 | W/8 | : To B43 | ||||
| B3 | D402 | W/6 | : To B48 | ||||
| D4 | D405 | W/8 | : To D501 | ||||
| B3 | D406 | - | : Body ground | ||||
| C2 | D408 | W/4 | : To D601 | ||||
| D1 | D409 | W/1 | : To D650 | ||||
| Back door harness | |||||||
| D4 | D501 | W/8 | : To D405 | ||||
| D4 | D502 | W/3 | : Back door switch | ||||
| E3 | D503 | B/1 | : Glass hatch ajar switch | ||||
| E4 | D504 | - | : Body ground | ||||
| E4 | D506 | W/2 | : License plate lamp LH | ||||
| F4 | D507 | W/2 | : License plate lamp RH | ||||
| E4 | D508 | W/4 | : Back door lock actuator | ||||
| Rear window sub-harness | |||||||
| C1 | D601 | W/4 | : To D405 | ||||
| E3 | D602 | W/4 | : Rear wiper motor | ||||
| F1 | D603 | - | : Body ground (defogger) | ||||
| F2 | D604 | B/1 | : Rear window defogger | ||||
| E2 | D605 | W/2 | : High mounted stop lamp | ||||
| Rear window defogger sub-harness | |||||||
| D1 | D650 | W/1 | : To D409 | ||||
| D2 | D651 | B/1 | : Rear window defogger | ||||
