Terminal Arrangement

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

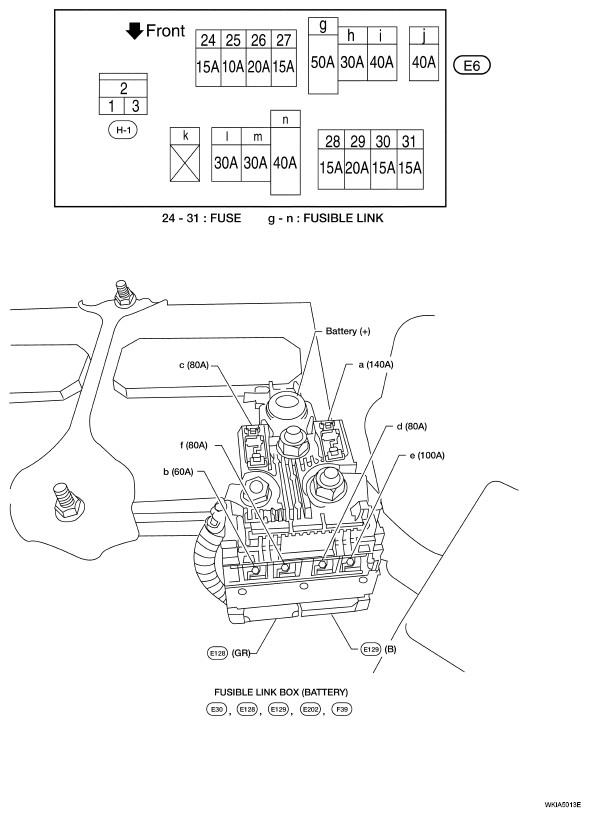

Fig 1: Identifying Fuse And Fusible Link Box Terminals
G04914489
