Inspection Flow

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

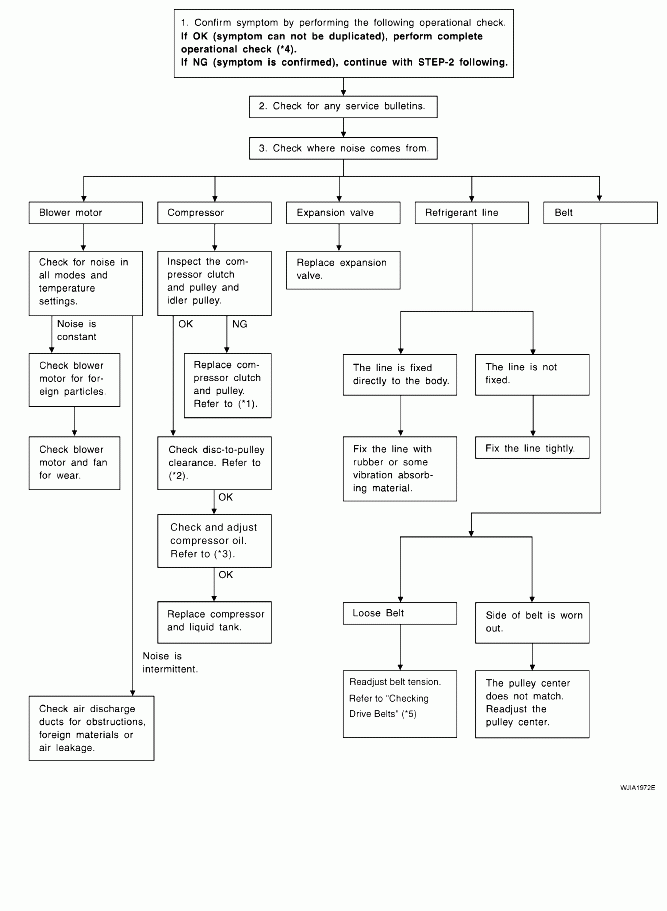

Fig 1: Identifying Noise Flow Chart
G04913475
(*1) Removal and Installation for Compressor Clutch
(*2) INSTALLATION
(*3) Maintenance of Oil Quantity in Compressor
(*4) Operational Check (Front)   or Operational Check (Rear)
(*5) CHECKING DRIVE BELTS
