Front Blower Motor Relay

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals by supplying 12 volts and ground to coil side terminals of relay.

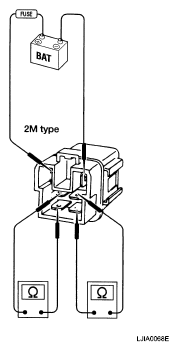

Fig 1: Checking Circuit Continuity Between Terminals 12 Volts And Ground To Coil Side Terminals Of Relays
G04896250
