Removal & Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect clutch switch harness connector.
Loosen lock nut. Remove clutch interlock switch. See Fig 1.
Replace clutch interlock switch if necessary.
To install, reverse removal procedure. Tighten lock nut to specification. See TORQUE SPECIFICATIONS .
Adjust to clearance "C" while fully depressing the clutch pedal with the clutch interlock switch as shown.
NOTE: Clearance "C": 0.004-0.039 inch (0.1-1.0 mm).

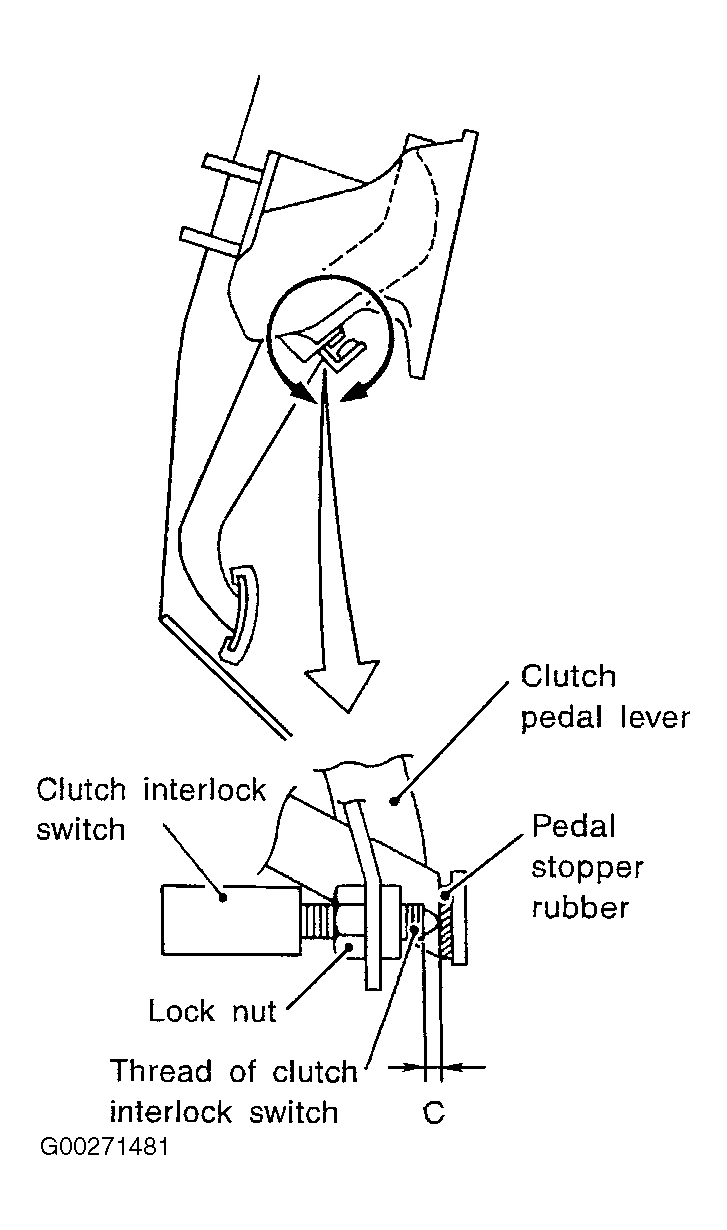

Fig 1: Identifying Clutch Switch Components

Courtesy of NISSAN MOTOR CO., U.S.A.
