Fuel Rails & Injectors (3.5L): Notes

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Do not smoke while working on the fuel system. Keep open flames and sparks away from the work area. Be sure to work in a well ventilated area. Ensure that there are no open flames in your work area.

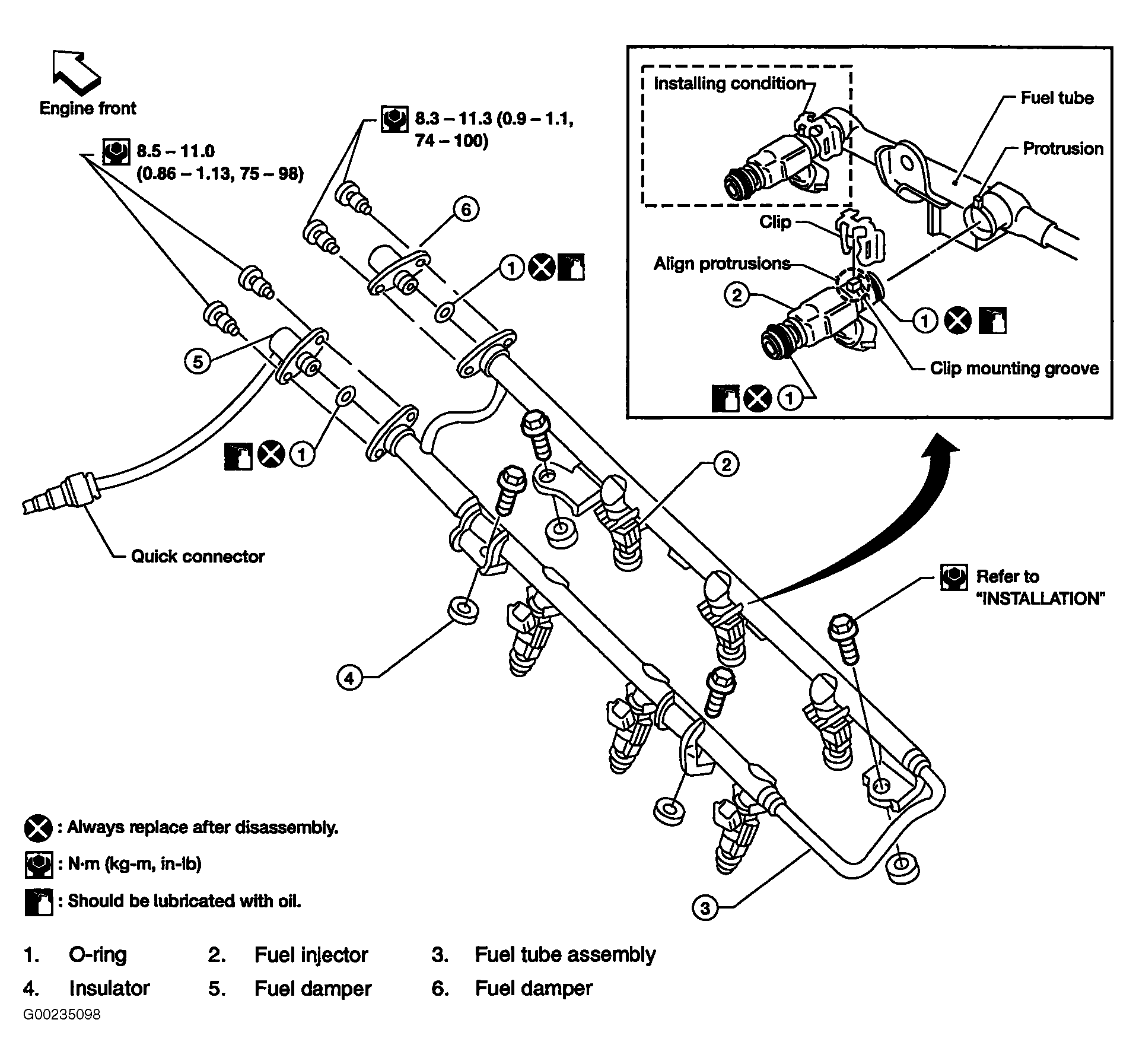

NOTE: Apply new engine oil to parts before installing the parts, as shown in the illustration. See Figure.

NOTE: Do not remove or disassemble components or parts unless instructed to do so in the text or illustrations.

NOTE: For fuel pressure release, see RELIEVING FUEL PRESSURE under FUEL SYSTEM in SYSTEM & COMPONENT TESTING article, for Fuel Pressure, see CHECKING FUEL PRESSURE in BASIC DIAGNOSTIC PROCEDURES article.
