Symptom Chart

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Numbers are arranged in order of inspection.

Perform inspections starting with number one and work up.

CAUTION: Do not remove or disassemble any RE5F22A model transaxle parts unless specified to do so.

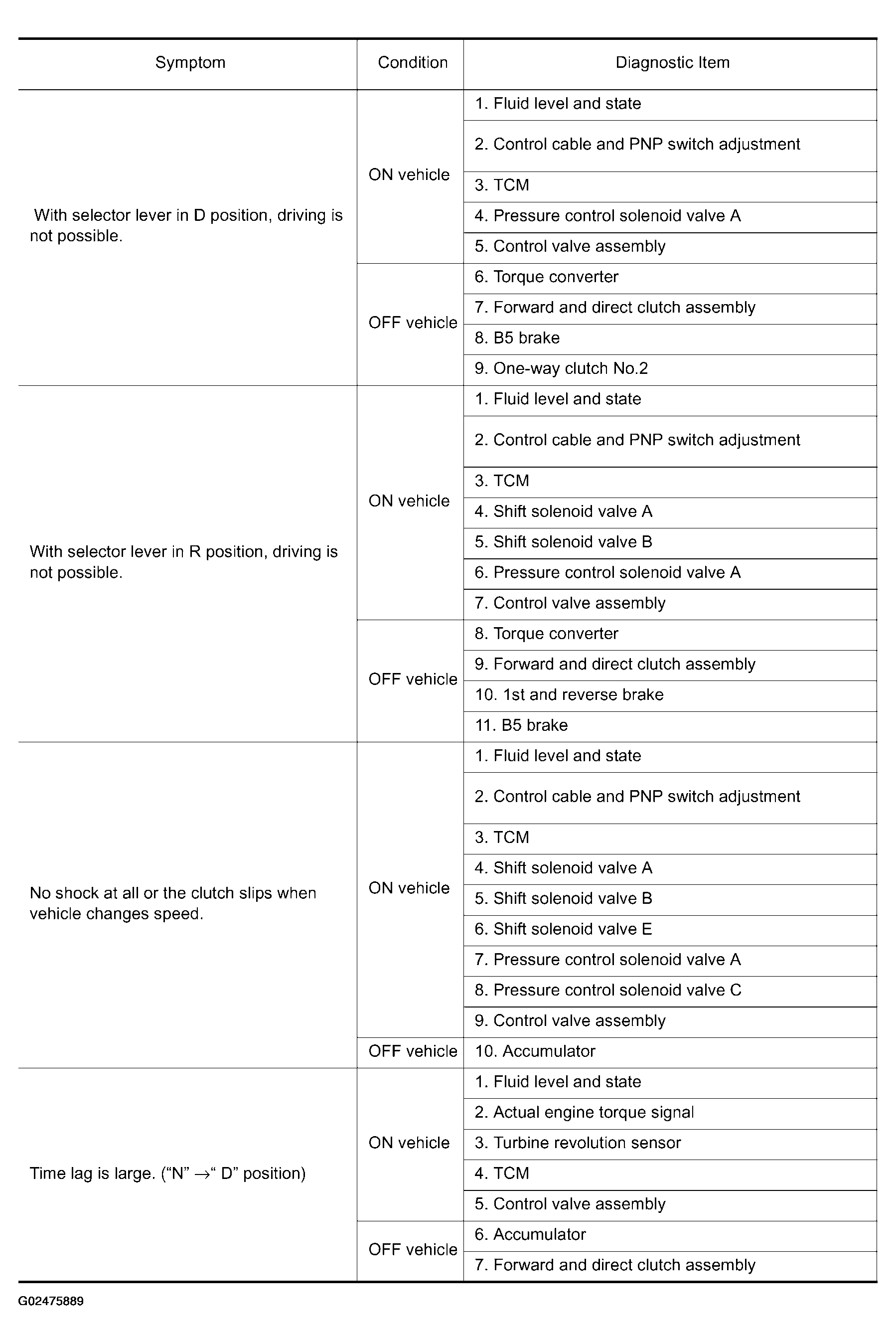

Fig 1: Symptom/Diagnostic Item Chart (1 Of 7)

G02475889

Courtesy of NISSAN MOTOR CO., U.S.A.

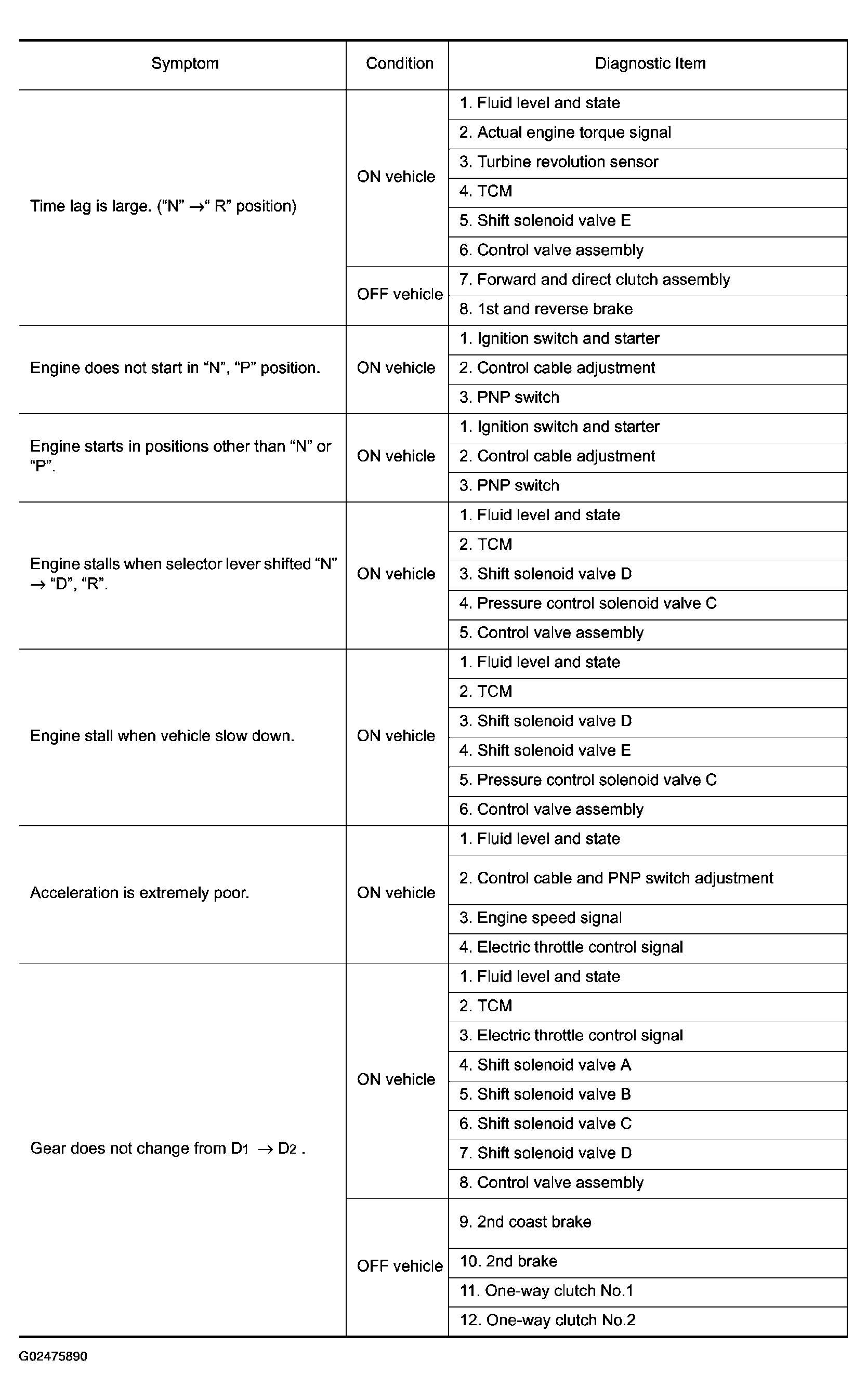

Fig 2: Symptom/Diagnostic Item Chart (2 Of 7)

G02475890

Courtesy of NISSAN MOTOR CO., U.S.A.

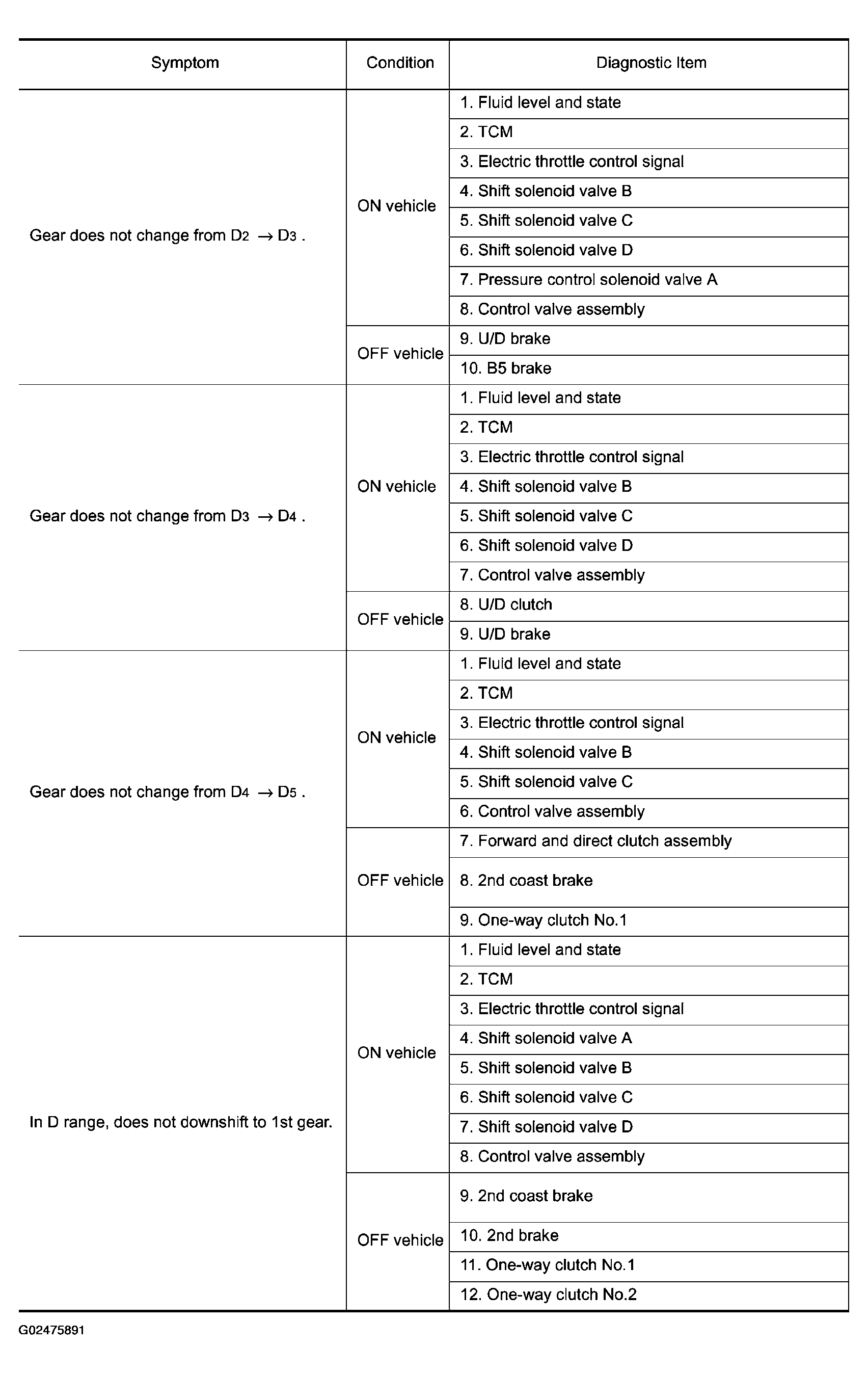

Fig 3: Symptom/Diagnostic Item Chart (3 Of 7)

G02475891

Courtesy of NISSAN MOTOR CO., U.S.A.

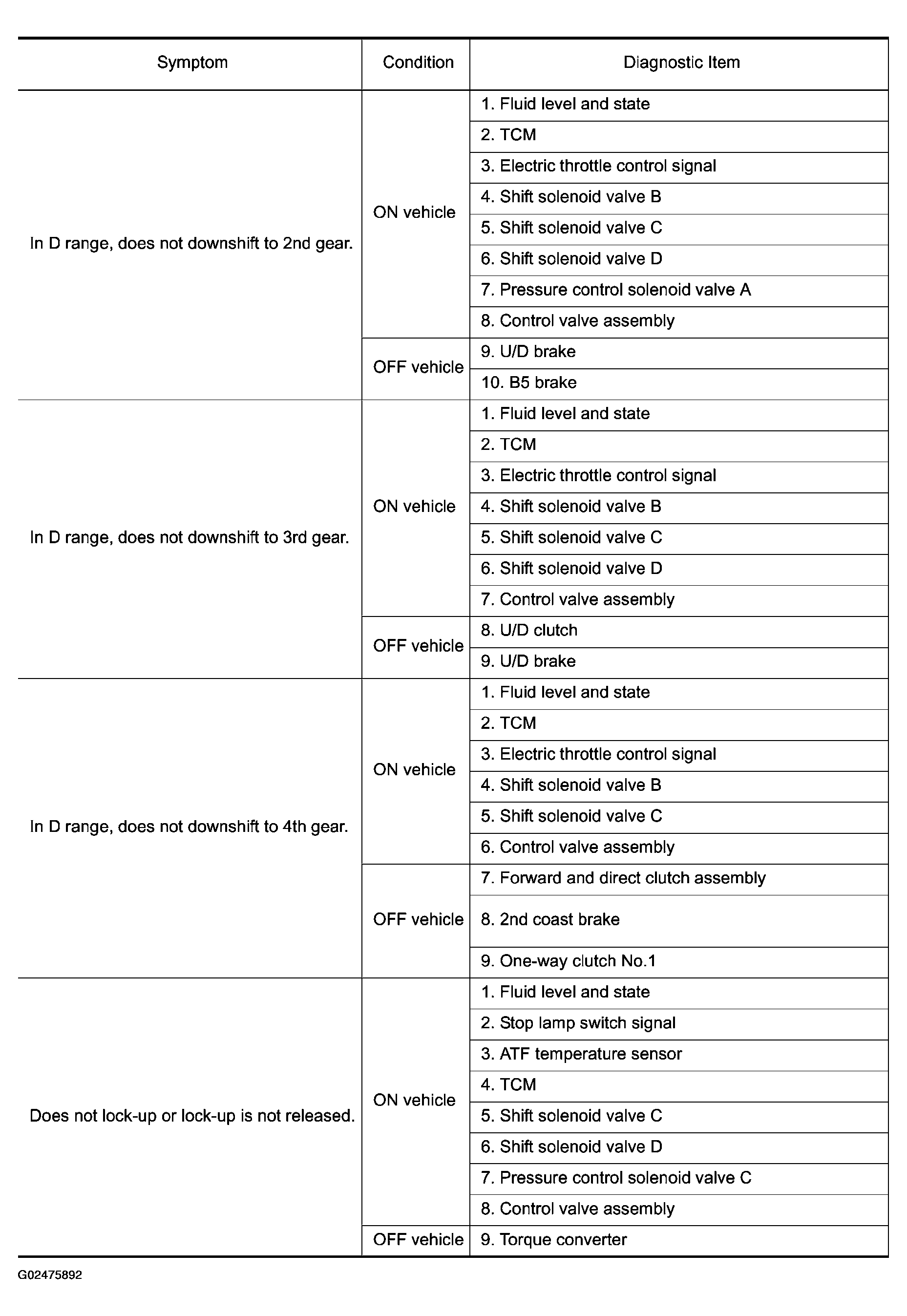

Fig 4: Symptom/Diagnostic Item Chart (4 Of 7)

G02475892

Courtesy of NISSAN MOTOR CO., U.S.A.

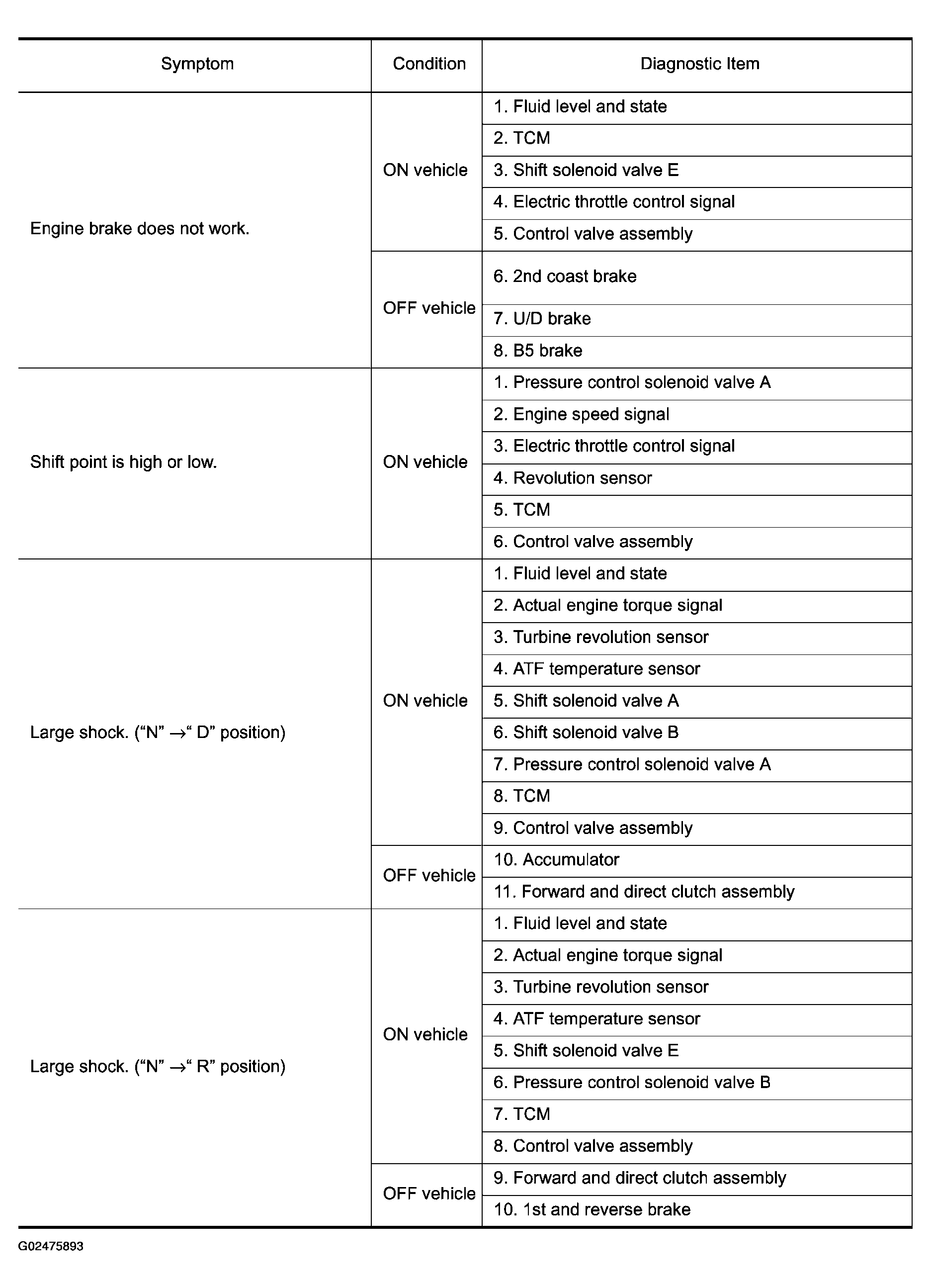

Fig 5: Symptom/Diagnostic Item Chart (5 Of 7)

G02475893

Courtesy of NISSAN MOTOR CO., U.S.A.

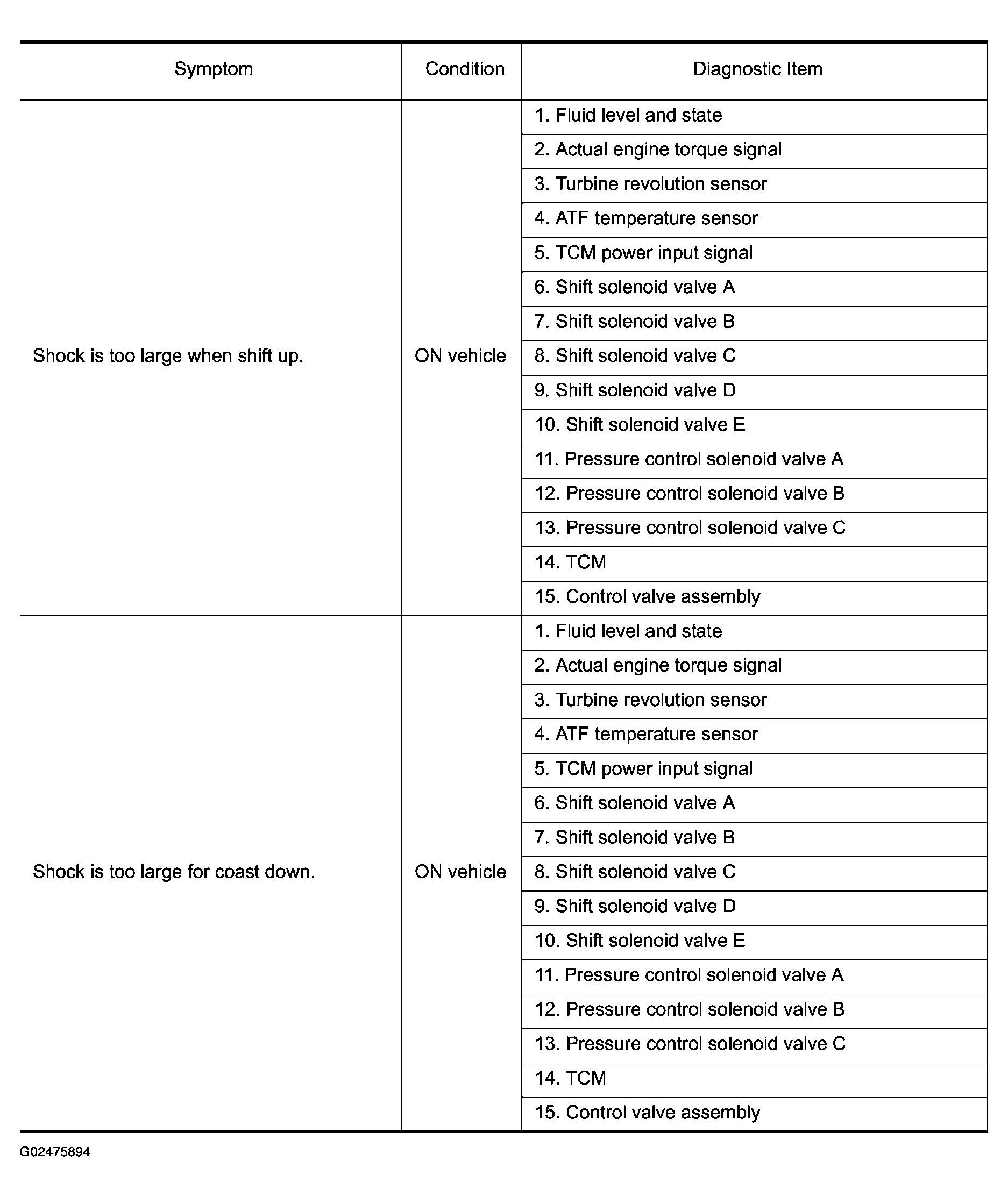

Fig 6: Symptom/Diagnostic Item Chart (6 Of 7)

G02475894

Courtesy of NISSAN MOTOR CO., U.S.A.

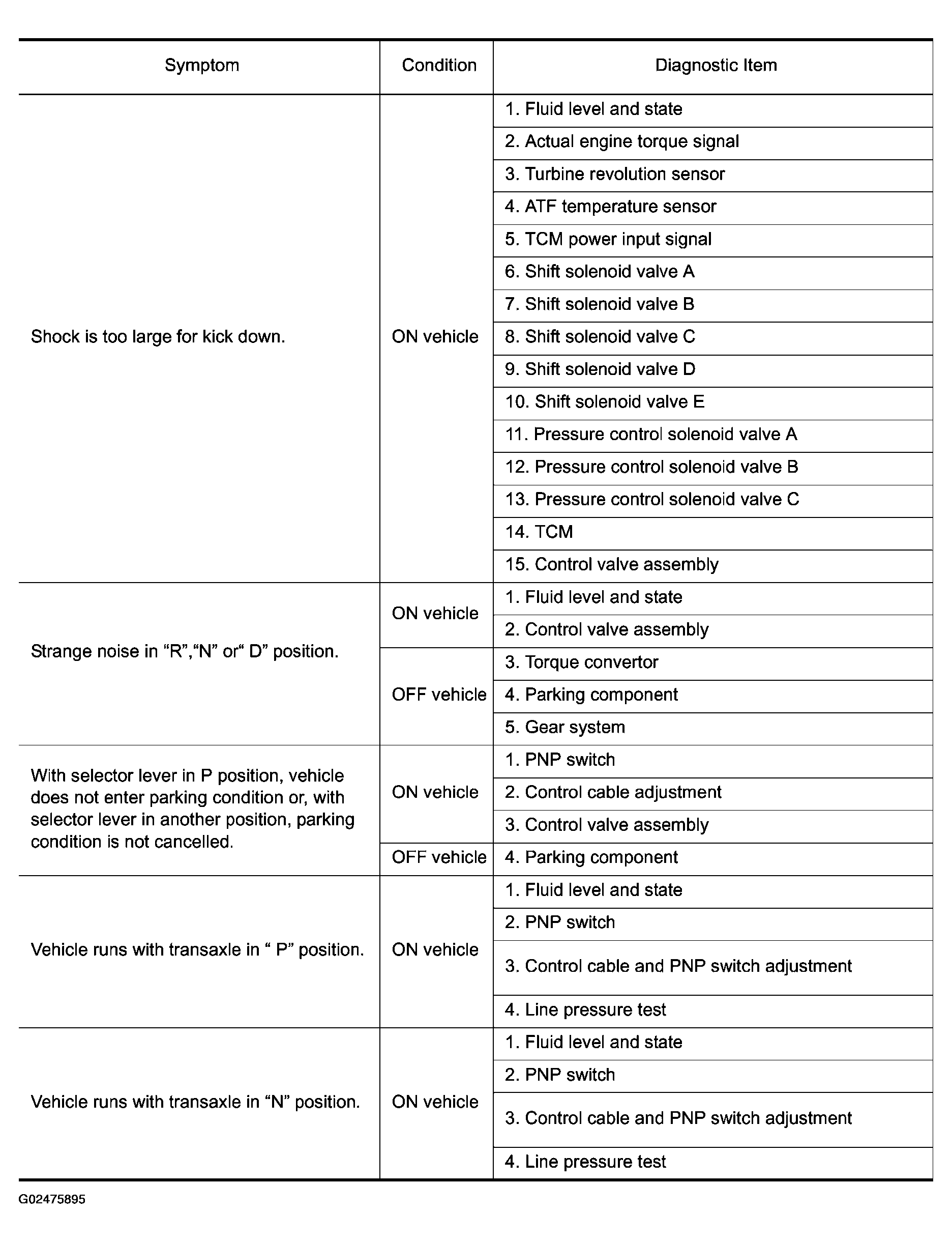

Fig 7: Symptom/Diagnostic Item Chart (7 Of 7)

G02475895

Courtesy of NISSAN MOTOR CO., U.S.A.
