Stall test procedure

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the amount of engine oil. Replenish the engine oil if necessary.
  2. Drive for about 10 minutes to warm up the vehicle so that the A/T fluid temperature is 50 to 80°C (122 to 176°F). Inspect the amount of A/T fluid. Replenish if necessary.

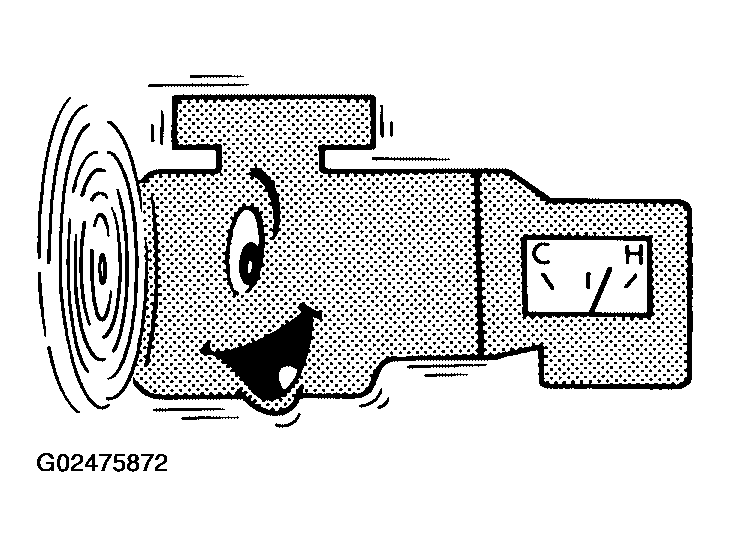

    Fig 1: Inspecting Engine Coolant Temperature
    G02475872Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Switch of A/C and light etc. are off.
  4. Securely engage the parking brake so that the tires do not turn.

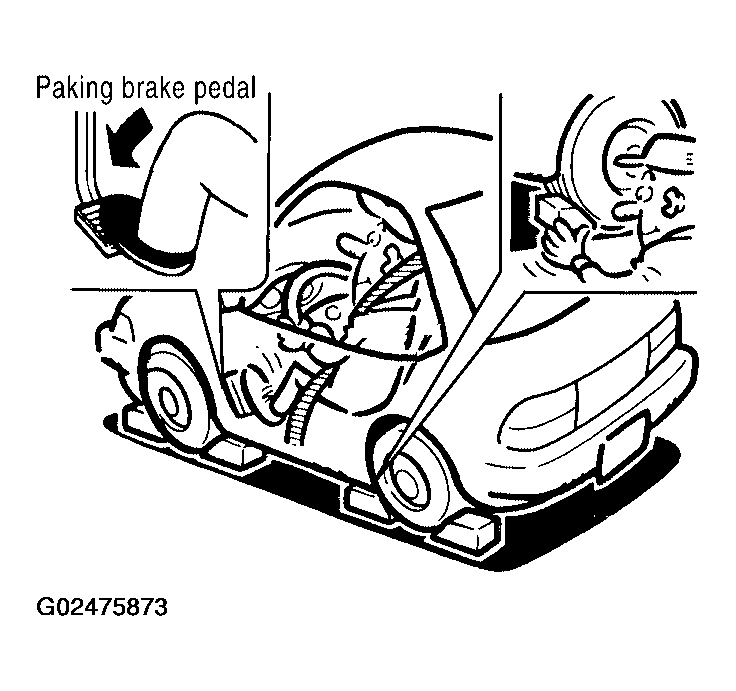

    Fig 2: Engaging Parking Brake
    G02475873Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Engine start, apply foot brake, and place selector lever in "D" position.
  6. While holding down the foot brake, gradually press down the accelerator pedal.

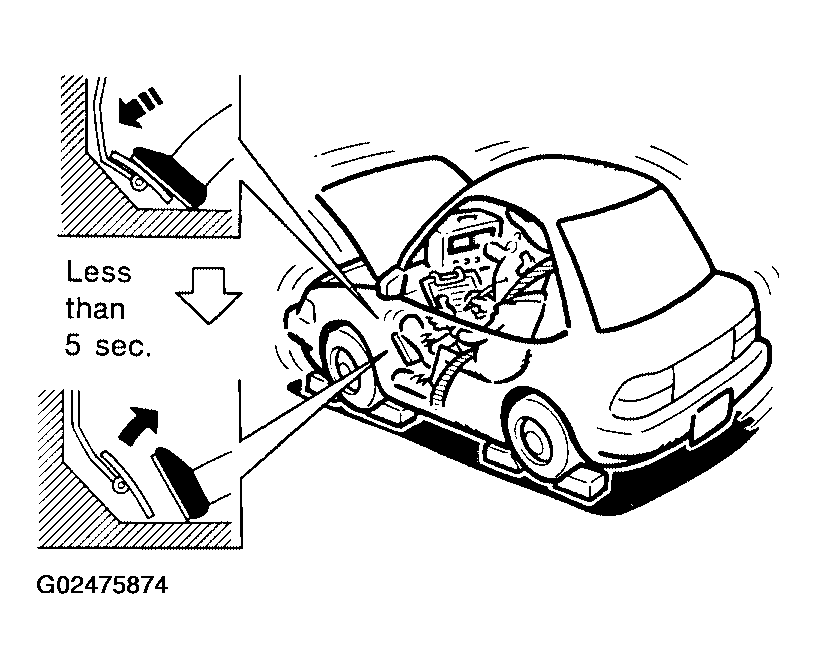

    Fig 3: Identifying Accelerator Pedal Position
    G02475874Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Quickly read off the stall speed, then quickly remove your foot from the accelerator pedal.
    CAUTION: Do not hold down the accelerator pedal for more than 5 seconds during this test.
  8. Move the selector lever to the "N" position.
  9. Cool down the A/T fluid.
    CAUTION: Run the engine at idle for at least one minute.
  10. Repeat step 5 through 9 with selector lever in "L" and "R" positions.
    • Stall speed : 2, 430 - 2, 730 RPM
