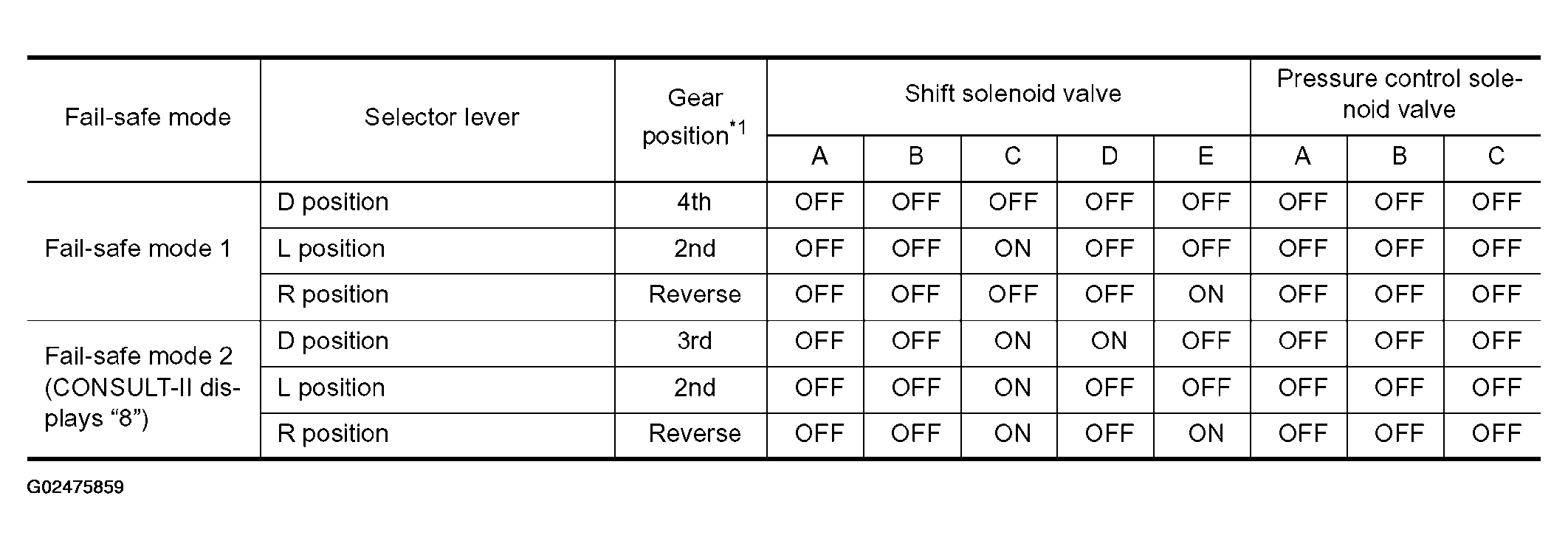

Fig 1: Fail-Safe Mode List - Solenoid Valve Application (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

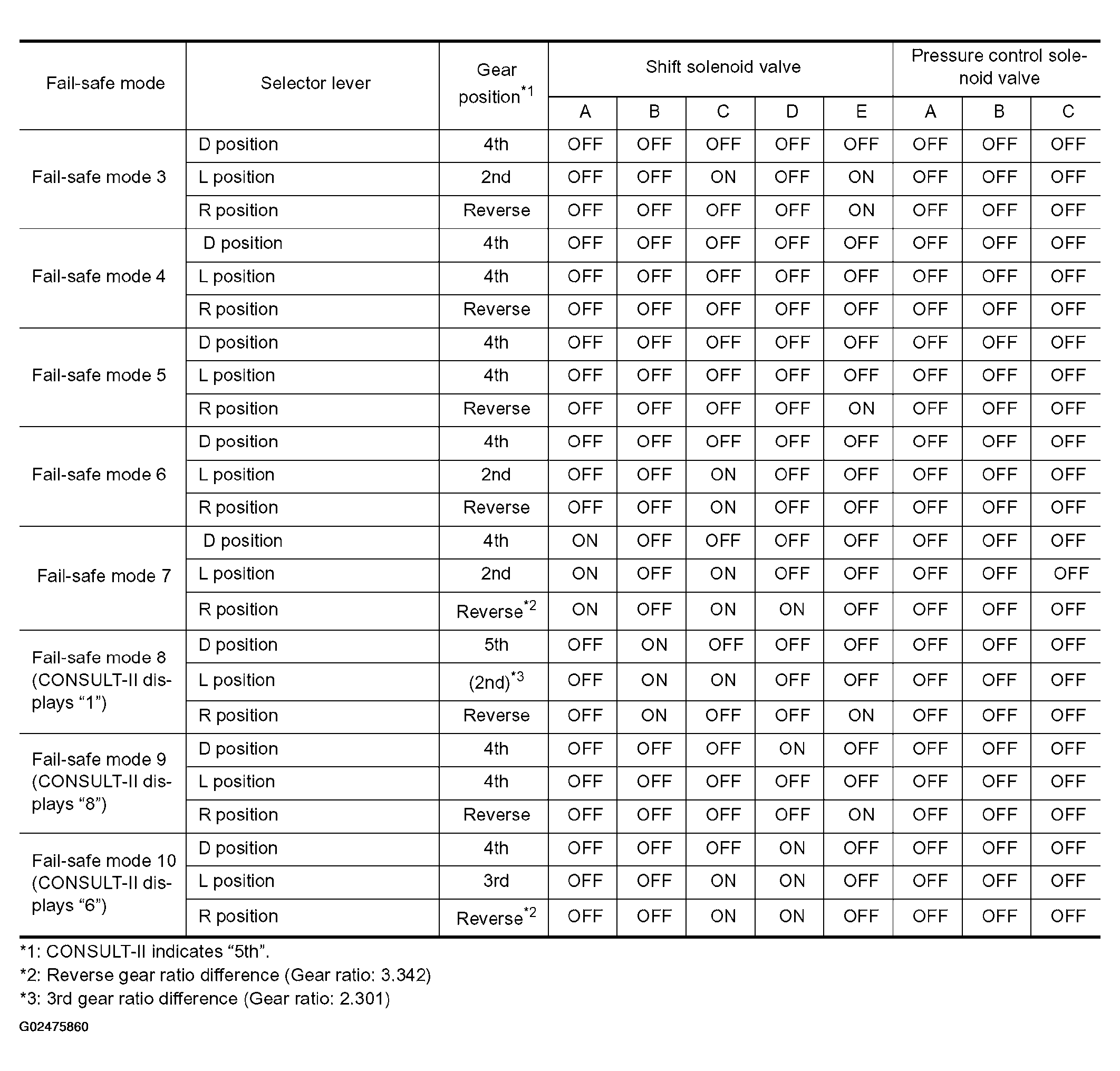

Fig 2: Fail-Safe Mode List - Solenoid Valve Application (2 Of 2)
