Operation procedure

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Perform "CONSULT-II SETTING PROCEDURE". Refer to CONSULT-II SETTING PROCEDURE .
Touch "SELF-DIAG RESULTS".
Display shows malfunction experienced since the last erasing operation.
NOTE:
- The details for "TIME" are as follow:
  - "CRNT": Error currently detected with TCM.
  - "PAST": Error detected in the past and memorized with TCM.
- Touch "F.F.DATA" on "SELF-DIAG RESULTS" screen to display freeze frame data. Freeze frame data shows driving condition when malfunction is detected.
  For freeze frame data items, refer to DISPLAY ITEM LIST .

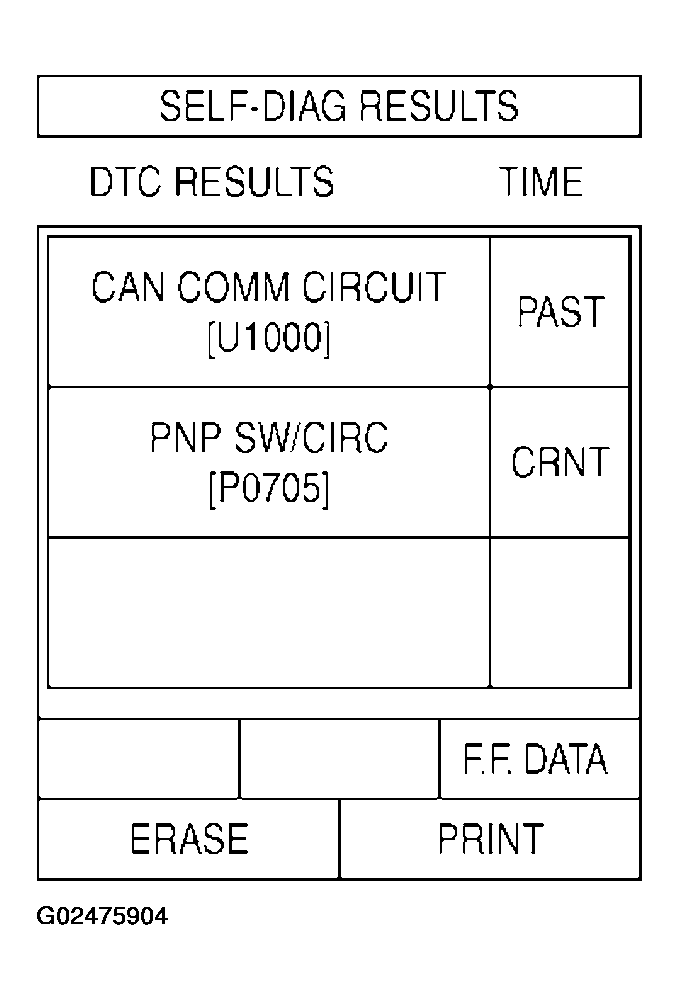

  Fig 1: CONSULT-II Display - SELF-DIAG RESULTS
  Courtesy of NISSAN MOTOR CO., U.S.A.
