Operation procedure

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform "CONSULT-II SETTING PROCEDURE". Refer to CONSULT-II SETTING PROCEDURE .
  2. Touch "CAN DIAGNOSTIC SUPPORT MONITOR".

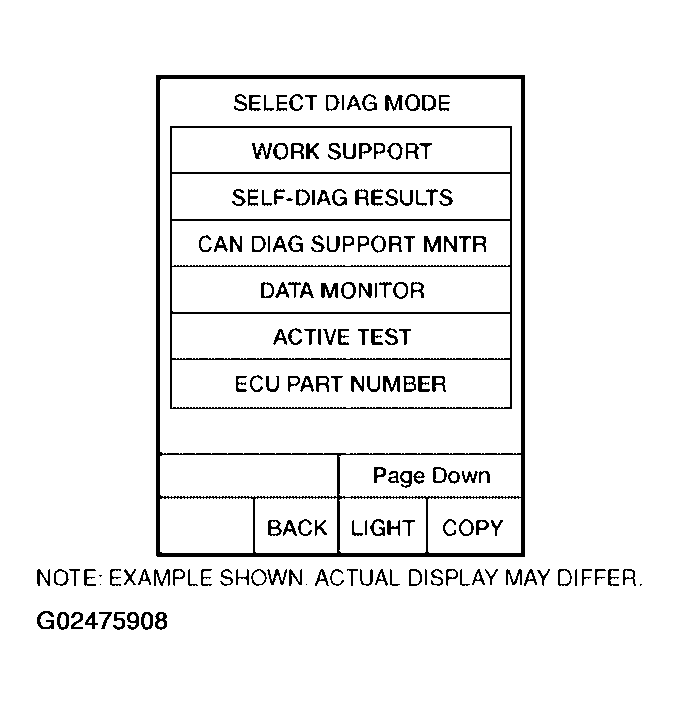

    Fig 1: CONSULT-II Display - CAN DIAGNOSTIC SUPPORT MNTR
    G02475908Courtesy of NISSAN MOTOR CO., U.S.A.
