Test item

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

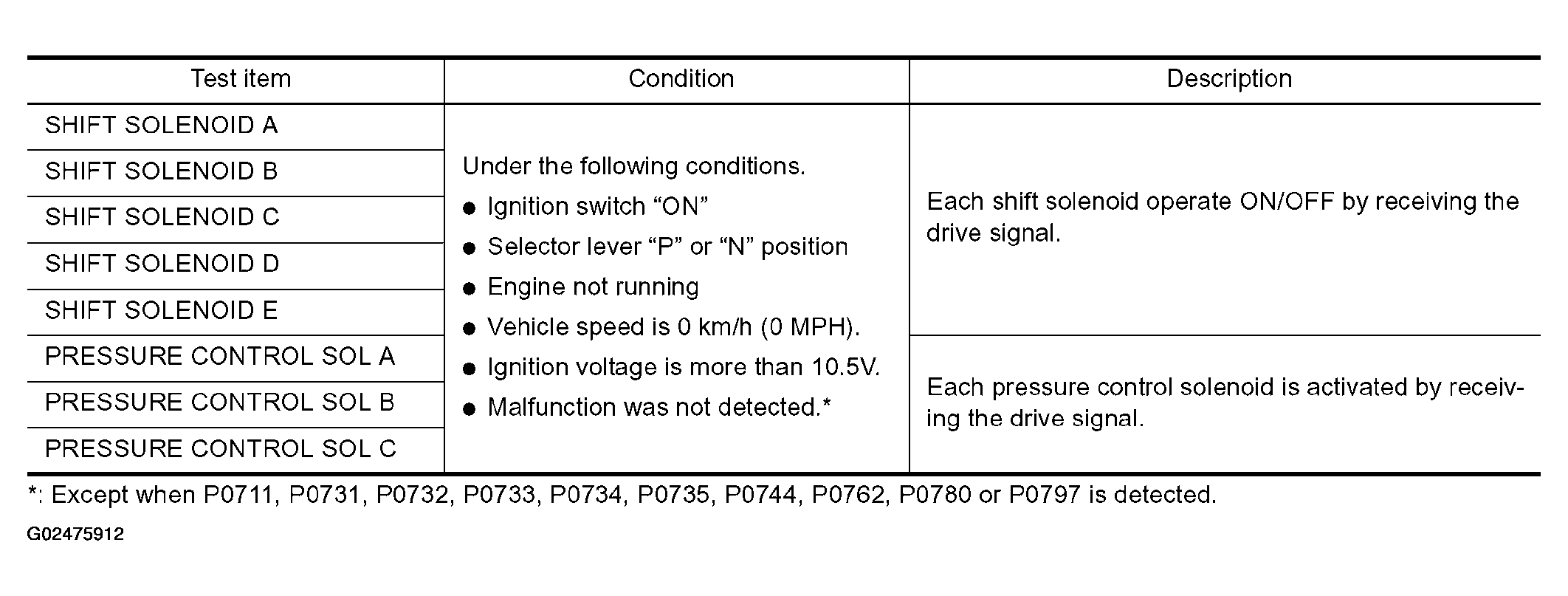

Fig 1: Active Test Mode - Shift & Pressure Control Solenoids
G02475912Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Approximately 10 seconds after the operation is begun, "TEST IS STOPPED" will be displayed.
