Diagnostic Procedure

Check the park/neutral position (PNP) switch circuit. Refer to DTC P0705 PARK/NEUTRAL POSITION SWITCH .

OK or NG

• OK : GO TO 2.
• NG : Repair or replace damaged parts.

Check the stop lamp switch circuit. Refer to TROUBLE DIAGNOSIS (WITH TCS/ABS) (with TCS/ABS) or TROUBLE DIAGNOSIS (WITH VDC/TCS/ABS) (with VDC/TCS/ABS).

OK or NG

• OK : GO TO 3.
• NG : Repair or replace damaged parts.

Perform self-diagnosis for ECM. Refer to EMISSION-RELATED DIAGNOSTIC INFORMATION

OK or NG

• OK : GO TO 4.
• NG : Repair or replace damaged parts.

WITH CONSULT-II

1. Turn ignition switch "ON". (Do not start engine.)
2. Select "A/T" with "DATA MONITOR" mode in CONSULT-II.

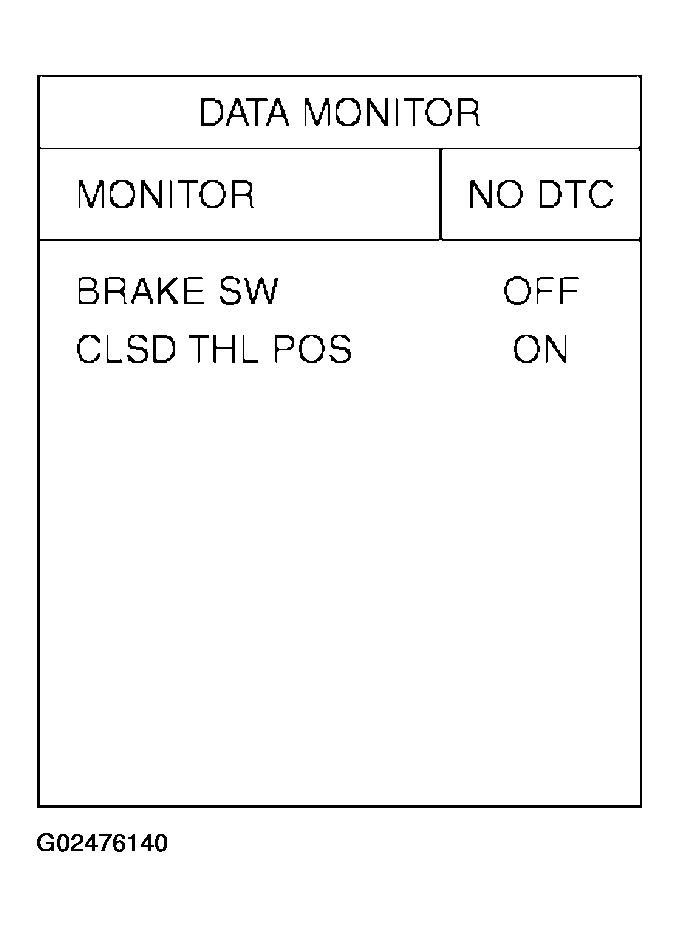

   Fig 1: CONSULT-II Display - DATA MONITOR

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. NG : GO TO 5.
4. Depress or release accelerator pedal and read out ON/OFF signaling action of the "CLSD THL POS".
5. Depress or release brake pedal and read out ON/OFF signaling action of the "BRAKE SW".

OK or NG

• OK : GO TO  7.

1. Check TCM input/output signal. Refer to TCM INPUT/OUTPUT SIGNAL REFERENCE VALUES .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

• OK : GO TO 6.
• NG : Repair or replace damaged parts.

Check the CAN communication line. Refer to DTC U1000 CAN COMMUNICATION LINE .

OK or NG

• OK : GO TO 7.
• NG : Repair or replace damaged parts.

Check again.

OK or NG

• OK : INSPECTION END
• NG : Replace the TCM.
