Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the selector knob cover downwards with fingers to reveal the selector knob latch.
  2. Gently pry the selector knob latch outward to release then lift the selector knob up to remove.

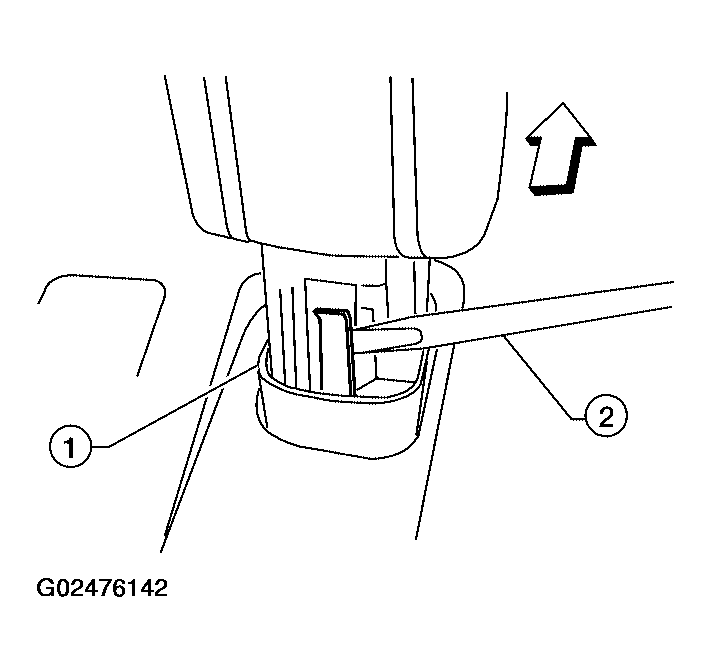

    Fig 1: Removing Sliding Selector Knob
    G02476142Courtesy of NISSAN MOTOR CO., U.S.A.
