Transaxle Case Cover & B5 Brake: Disassembly

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove tube clamps.

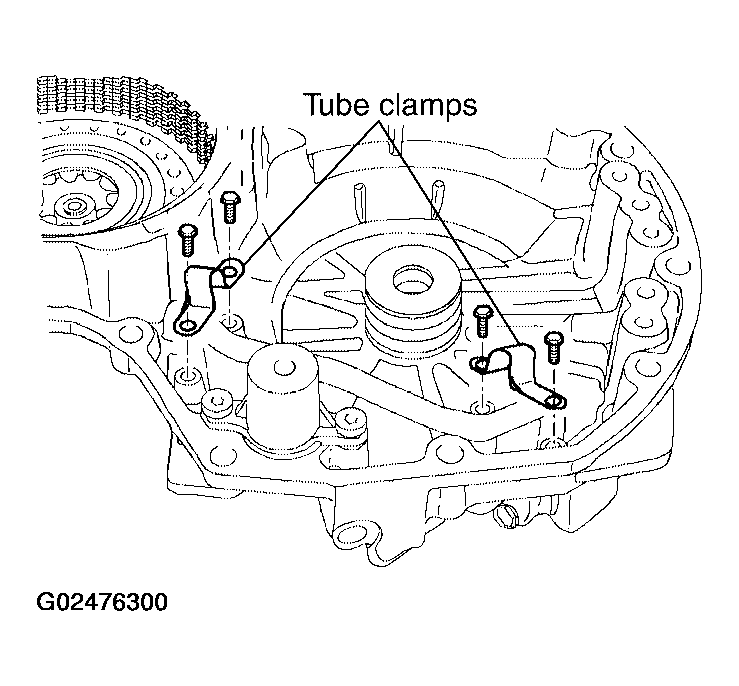

    Fig 1: Removing Tube Clamps
    G02476300Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove the U/D clutch apply tube sub assembly, using suitable tool.
    CAUTION: Be careful not to damage the U/D clutch apply tube sub assembly and transaxle case cover.

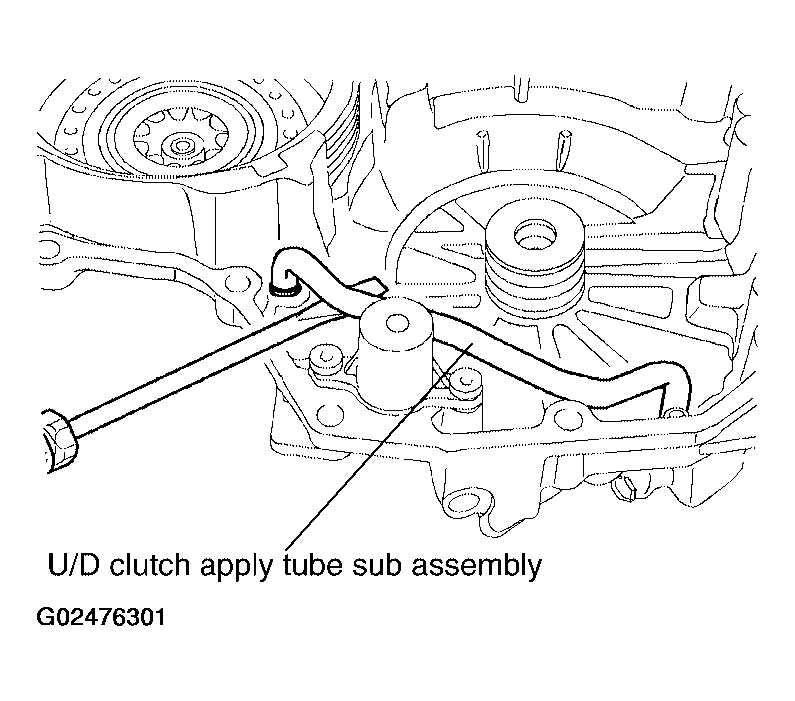

    Fig 2: Removing U/D Clutch Apply Tube Sub Assembly
    G02476301Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove bearing race and seal rings from transaxle case cover.

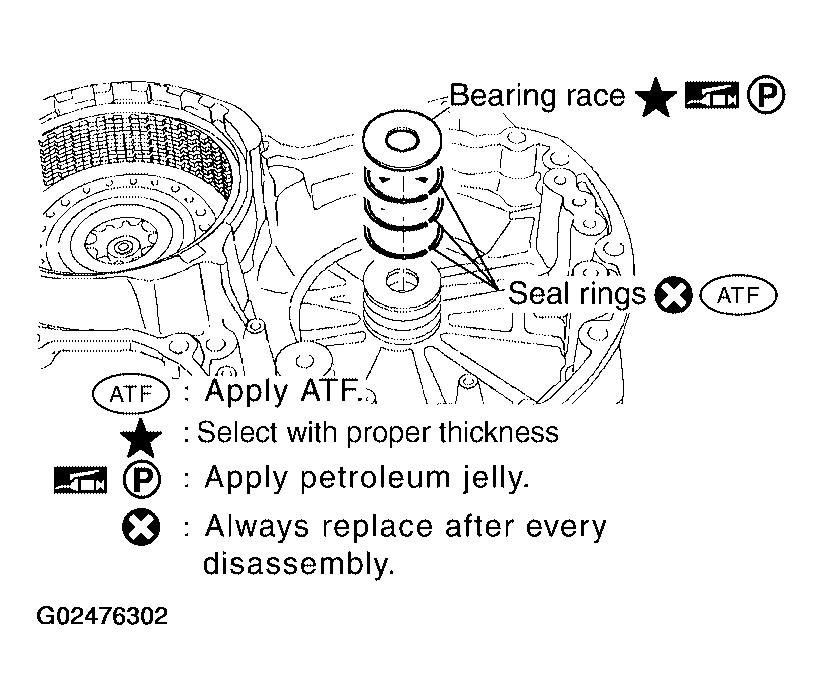

    Fig 3: Removing Bearing Race & Seal Rings From Transaxle Case Cover
    G02476302Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove accumulator cover, compression spring and forward clutch accumulator piston.
  5. Remove O-ring from the accumulator cover.
  6. Remove seal ring from the forward clutch accumulator piston.

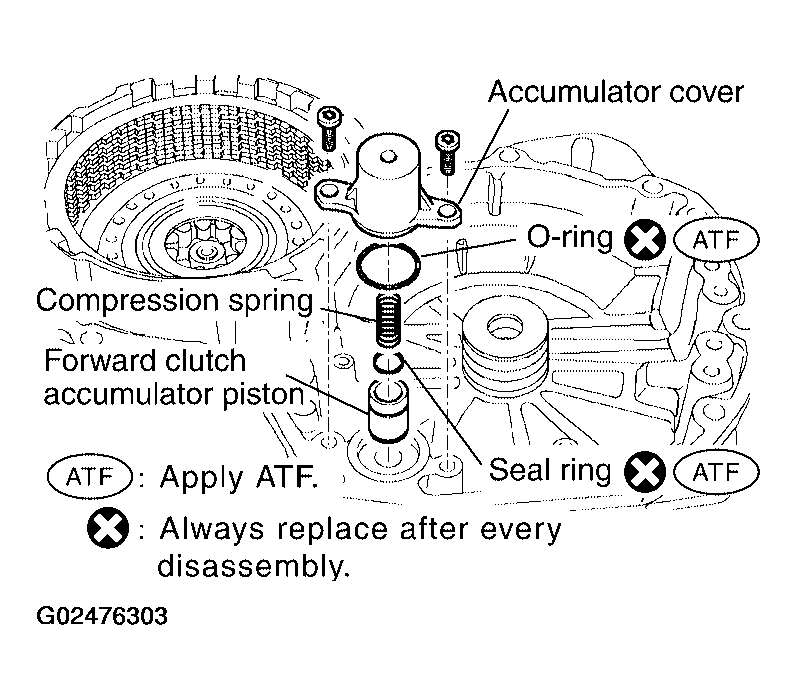

    Fig 4: Removing Accumulator Cover, Compression Spring & Forward Clutch Accumulator Piston
    G02476303Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove snap ring, using a flat-bladed screwdriver.

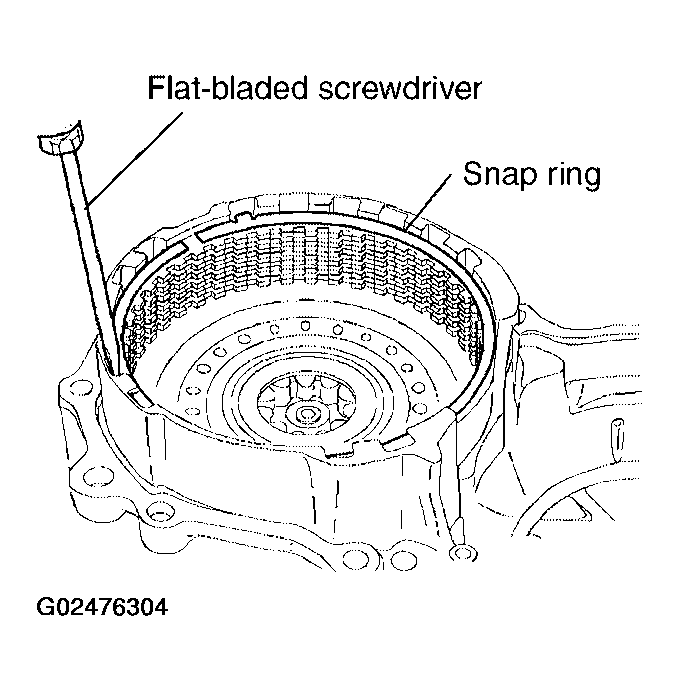

    Fig 5: Removing Snap Ring, Using A Flat-Bladed Screwdriver
    G02476304Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove B5 brake flange, B5 brake discs, B5 brake plates and B5 brake cushion plate.

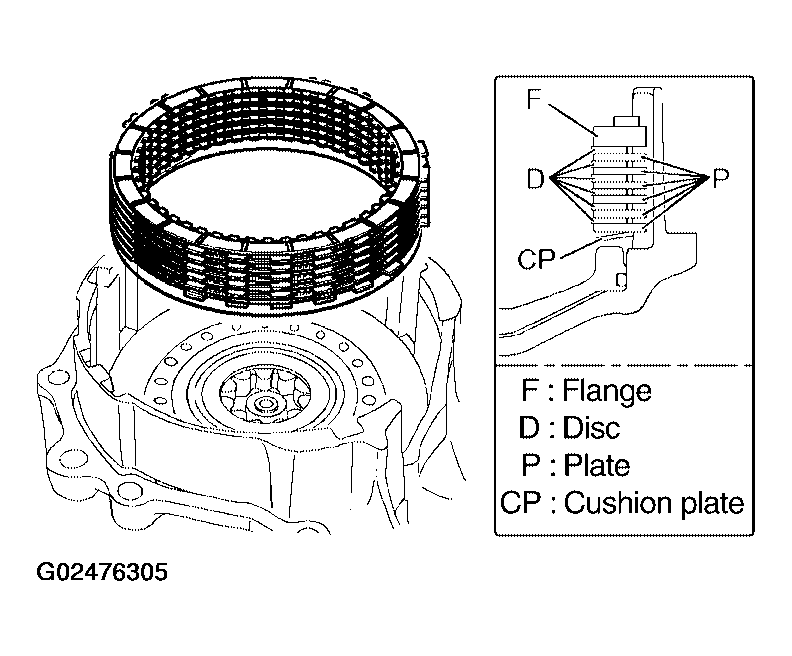

    Fig 6: Removing B5 Brake Flange, B5 Brake Discs, B5 Brake Plates & B5 Brake Cushion Plate
    G02476305Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Place clutch spring compressor on return spring, and compress return spring with a press.
    CAUTION: Do not press return spring too much to avoid deformation.
  10. Remove snap ring using suitable tool.

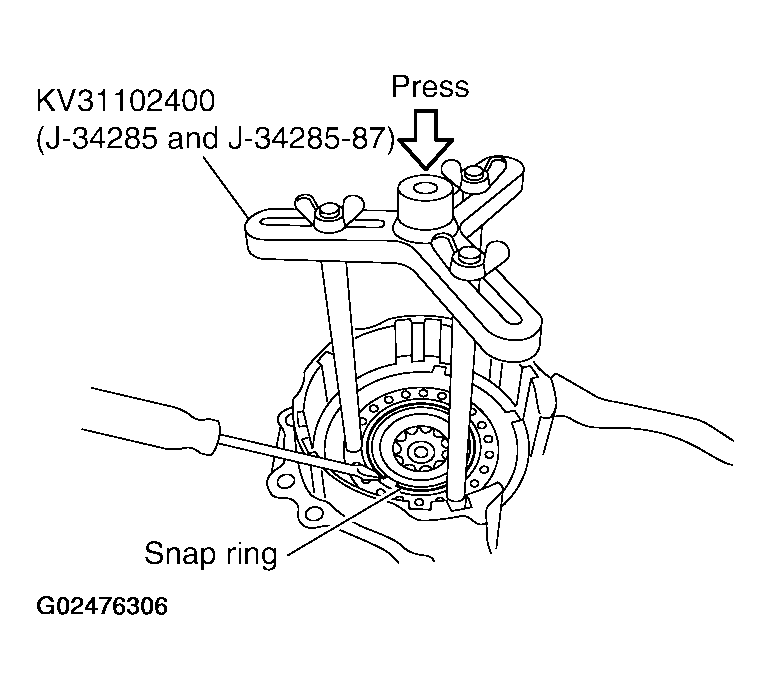

    Fig 7: Removing Snap Ring
    G02476306Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Remove return spring.

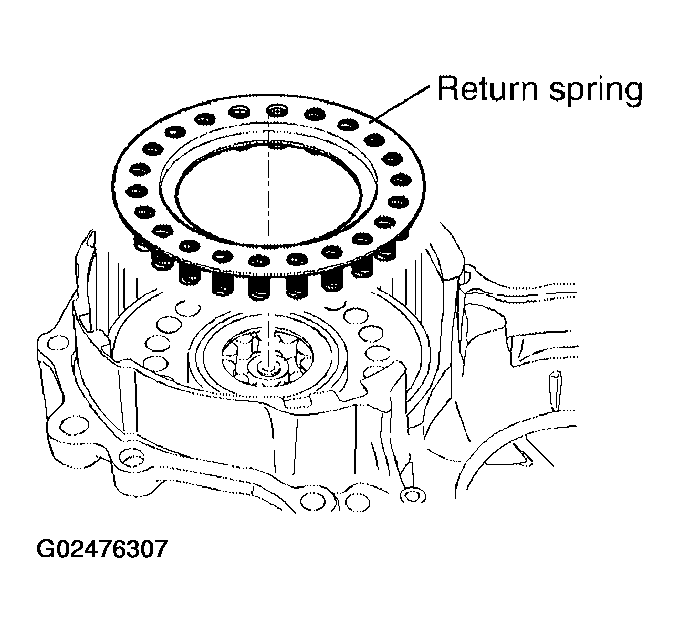

    Fig 8: Removing Return Spring
    G02476307Courtesy of NISSAN MOTOR CO., U.S.A.
  12. While pushing B5 brake piston by hand, apply compressed air (4Kg/cm2 ) into the oil passage as shown in Fig 9 and remove B5 brake piston.

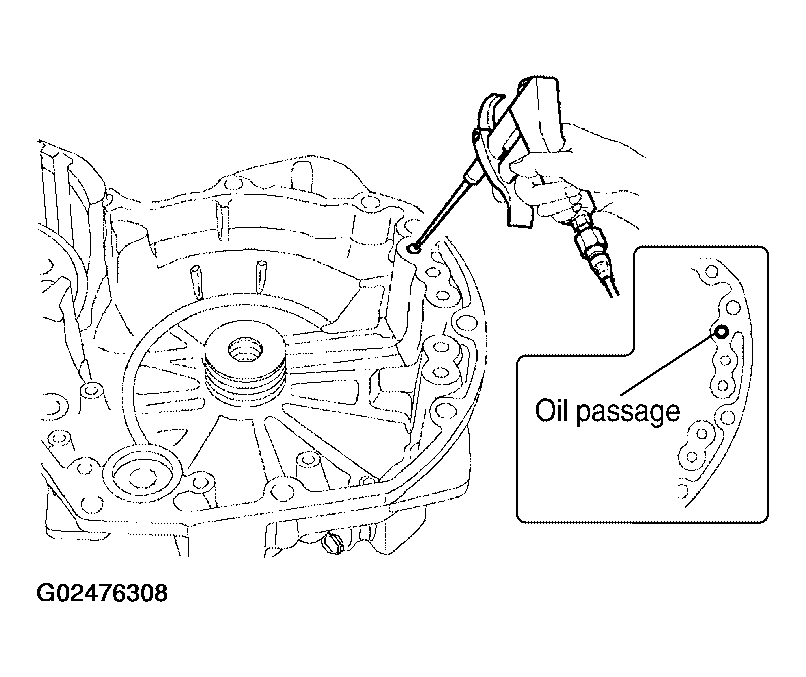

    Fig 9: Applying Compressed Air Into Oil Passage
    G02476308Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Remove O-rings from B5 brake piston.

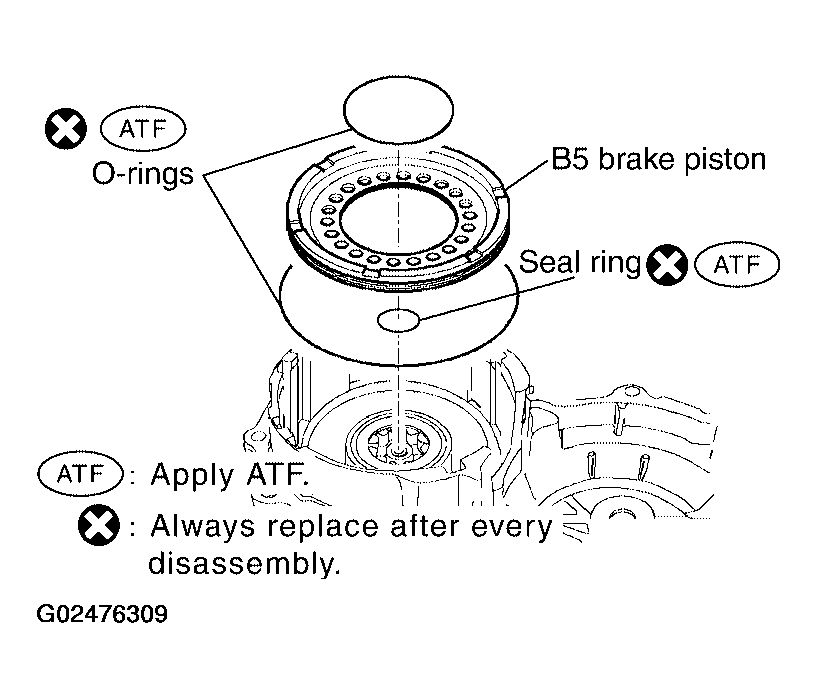

    Fig 10: Removing O-Rings From B5 Brake Piston
    G02476309Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Remove seal ring from transaxle case cover.
