One-Way Clutch Outer Race Sub Assembly & 2nd Coast Brake Hub & One-Way Clutch No. 1: Assembly

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install one-way clutch New into the one-way clutch outer race sub assembly.
    CAUTION: Do not mistake the direction of one-way clutch No. 1.

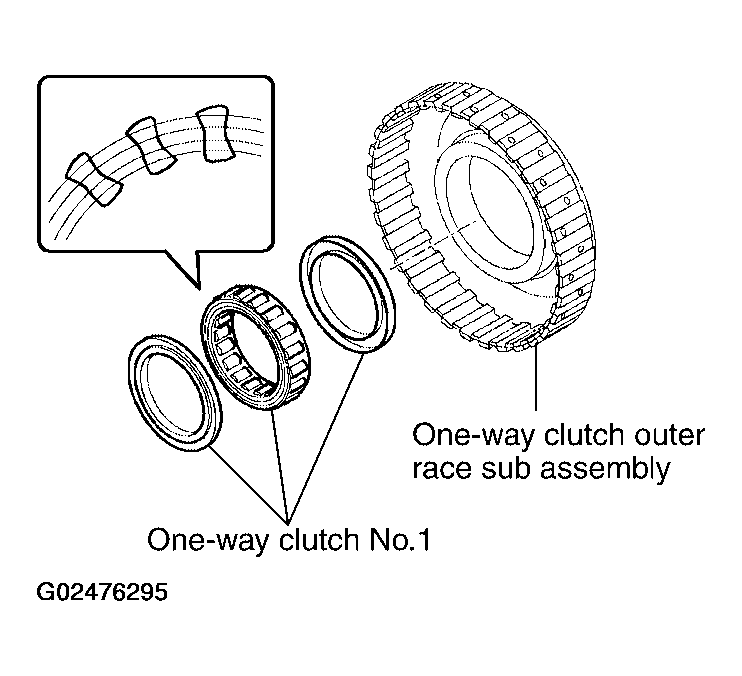

    Fig 1: Installing One-Way Clutch New Into One-Way Clutch Outer Race Sub Assembly
    G02476295Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install thrust washer into 2nd coast brake hub.
    CAUTION: Coat the thrust washer with petroleum jelly. Align the tab of the washer with the hollow of the 2nd coast brake hub.
  3. Install 2nd coast brake hub into one-way clutch outer race sub assembly.
    CAUTION: While turning the 2nd coast brake hub, slide it into one-way clutch outer race sub assembly.

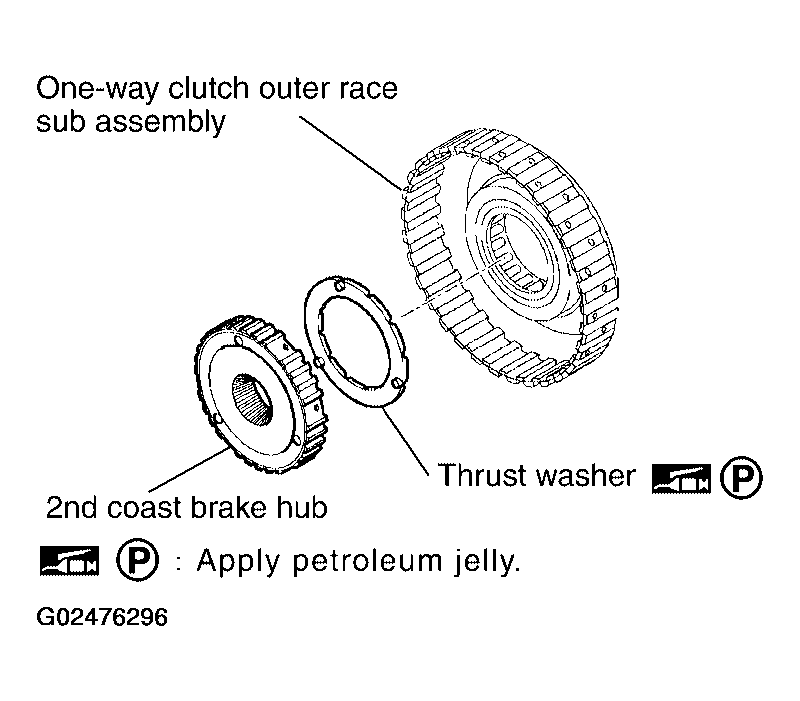

    Fig 2: Installing Thrust Washer Into 2nd Coast Brake Hub
    G02476296Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Coat the thrust washer with petroleum jelly. Align the tab of the washer with the hollow of the one-way clutch outer race sub assembly.
    CAUTION: Apply petroleum jelly to thrust washer.

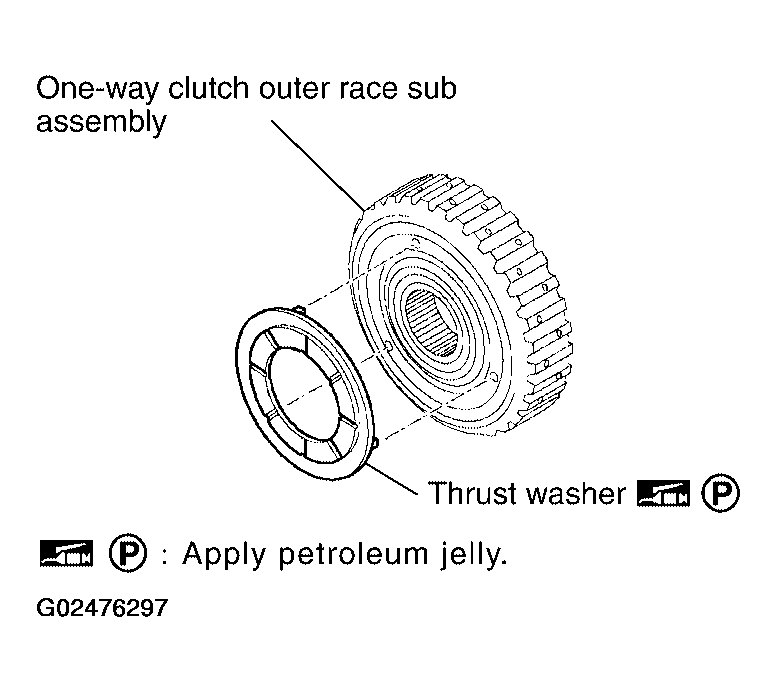

    Fig 3: Aligning Tab Of Washer With Hollow Of One-Way Clutch Outer Race Sub Assembly
    G02476297Courtesy of NISSAN MOTOR CO., U.S.A.
