Oil Pump, 2nd Coast Brake & 2nd Brake: Disassembly

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Remove oil seal from oil pump assembly.
CAUTION: Be careful not to scratch oil pump assembly.

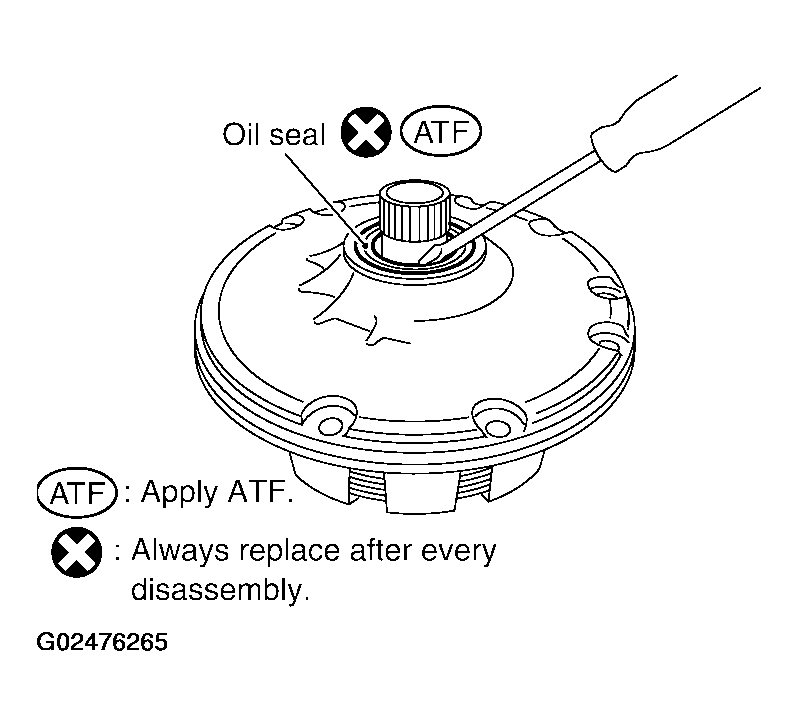

Fig 1: Removing Oil Seal From Oil Pump Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

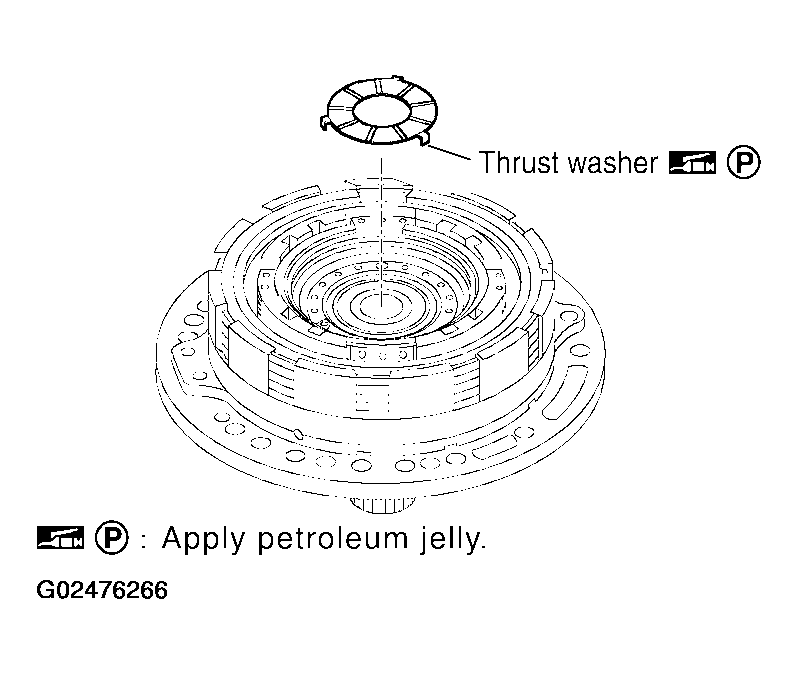

Remove thrust washer from oil pump assembly.

Fig 2: Removing Thrust Washer From Oil Pump Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

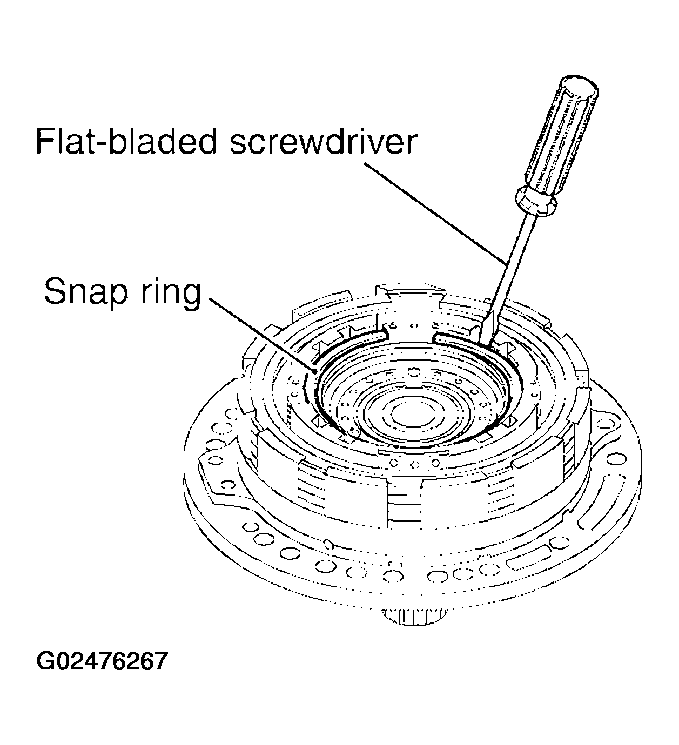

Using a flat-bladed screwdriver and remove snap ring.

Fig 3: Removing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove 2nd coast brake flange, 2nd coast brake discs and 2nd coast brake plates.

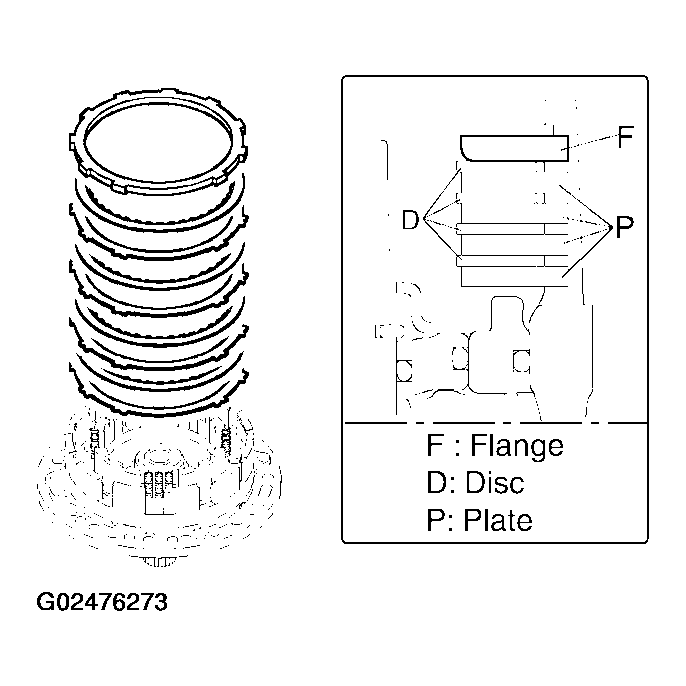

Fig 4: Removing 2nd Coast Brake Flange, 2nd Coast Brake Discs & 2nd Coast Brake Plates
Courtesy of NISSAN MOTOR CO., U.S.A.
Place clutch spring compressor on return spring, and compress return spring with a press.

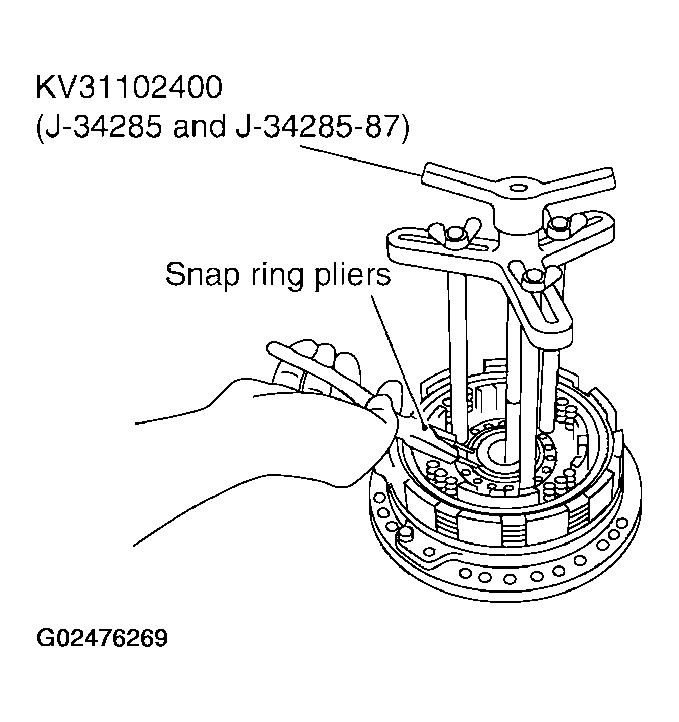

Using a snap ring pliers and remove snap ring.

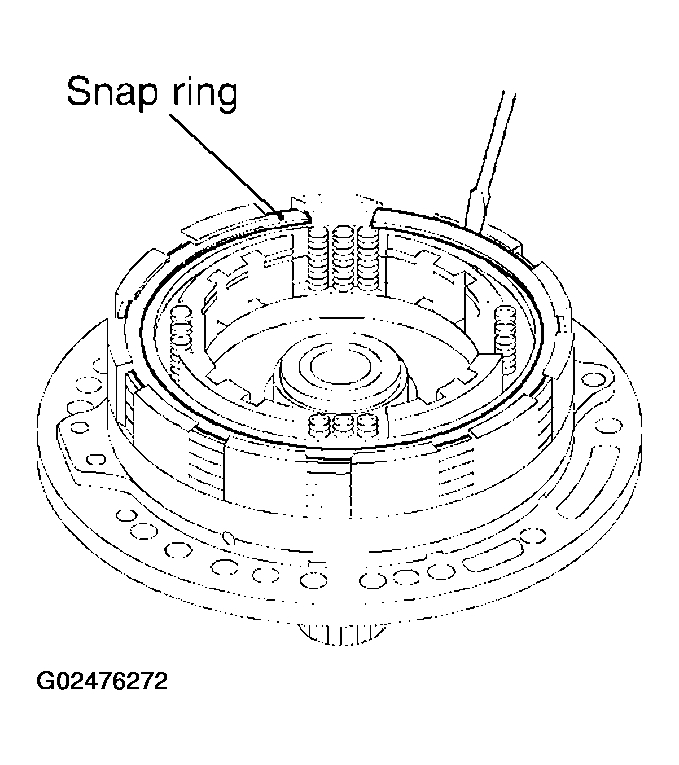

Fig 5: Removing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove return spring.

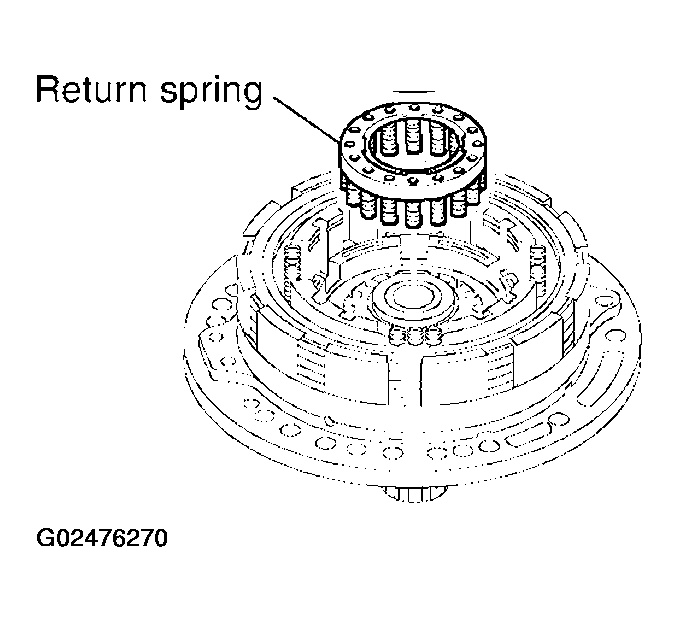

Fig 6: Removing Return Spring
Courtesy of NISSAN MOTOR CO., U.S.A.
While pushing the 2nd coast brake piston by hand, apply compressed air (4kg/cm² ) into the oil passage as shown in Fig 7 and remove 2nd coast brake piston.
CAUTION: Be careful not to damage the O-ring and 2nd coast brake piston.
Remove O-rings from 2nd coast brake piston.

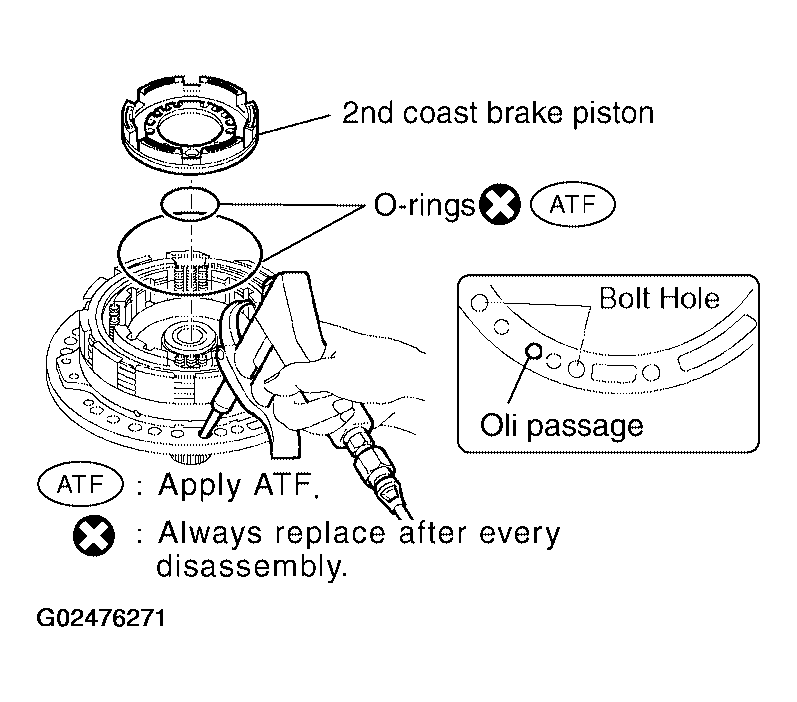

Fig 7: Removing O-Rings From 2nd Coast Brake Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
Using a flat-bladed screwdriver and remove snap ring.

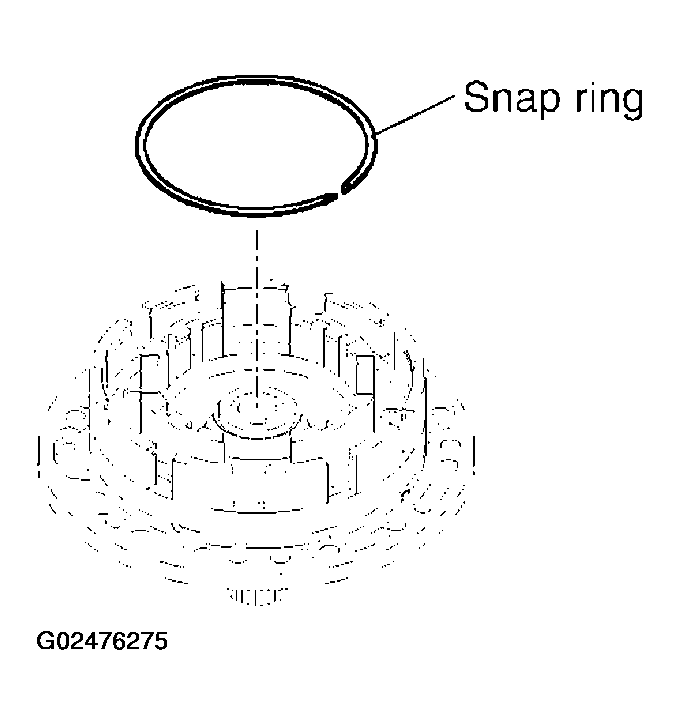

Fig 8: Removing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove 2nd brake flange, 2nd brake discs and 2nd brake plates.

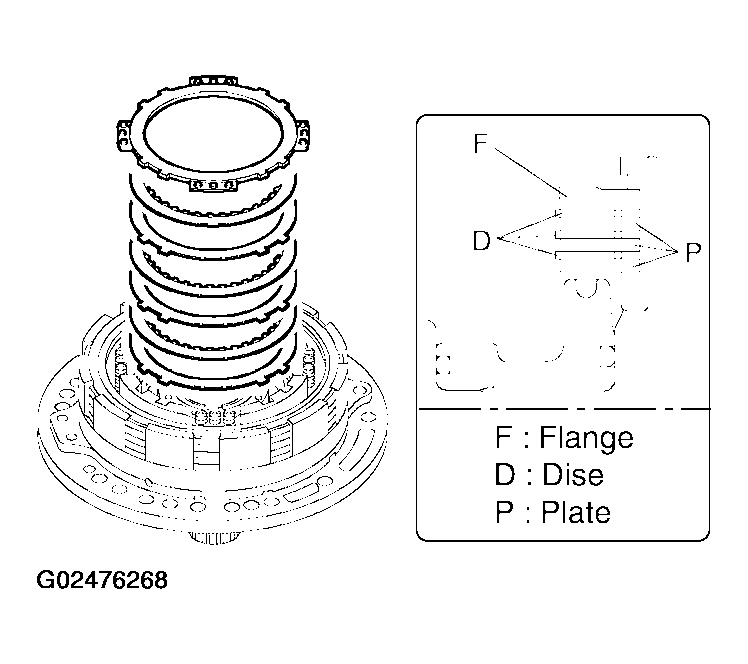

Fig 9: Removing 2nd Brake Flange, 2nd Brake Discs & 2nd Brake Plates
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove return spring.

Fig 10: Removing Return Spring
Courtesy of NISSAN MOTOR CO., U.S.A.
Using a flat-bladed screwdriver and remove snap ring.
CAUTION: Be careful not to damage oil pump assembly and 2nd brake piston.

Fig 11: Removing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
While pushing the 2nd brake piston by hand, apply compressed air (4kg/cm² ) into the oil passage as shown in Fig 12 and remove 2nd brake piston (With 2nd brake sleeve).
CAUTION: Be careful not to damage 2nd brake piston and 2nd brake sleeve.
Remove O-rings from 2nd brake piston and 2nd brake sleeve.

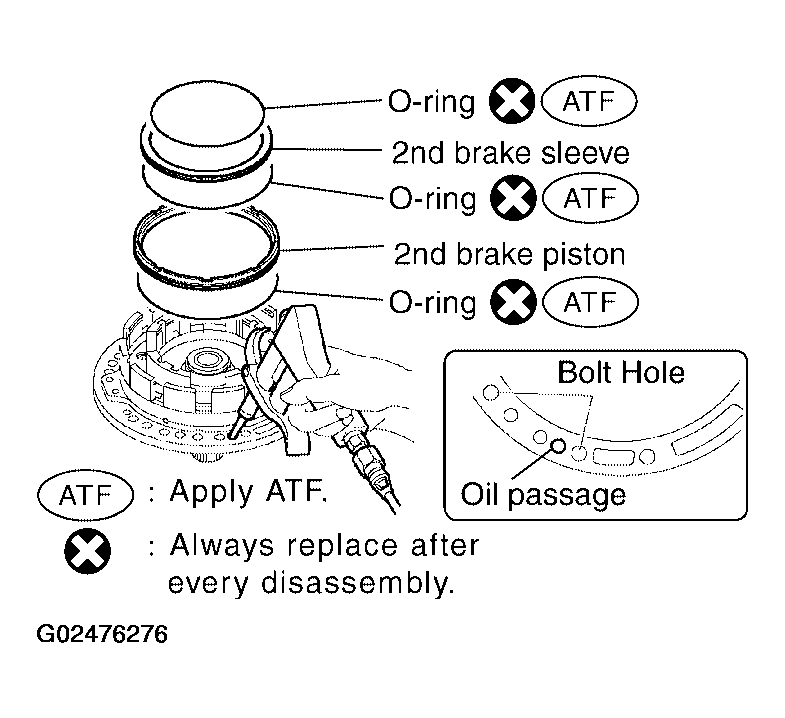

Fig 12: Removing O-Rings From 2nd Brake Piston & 2nd Brake Sleeve
Courtesy of NISSAN MOTOR CO., U.S.A.
