Differential Gear Assembly: Disassembly

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove O-rings from differential gear assembly.

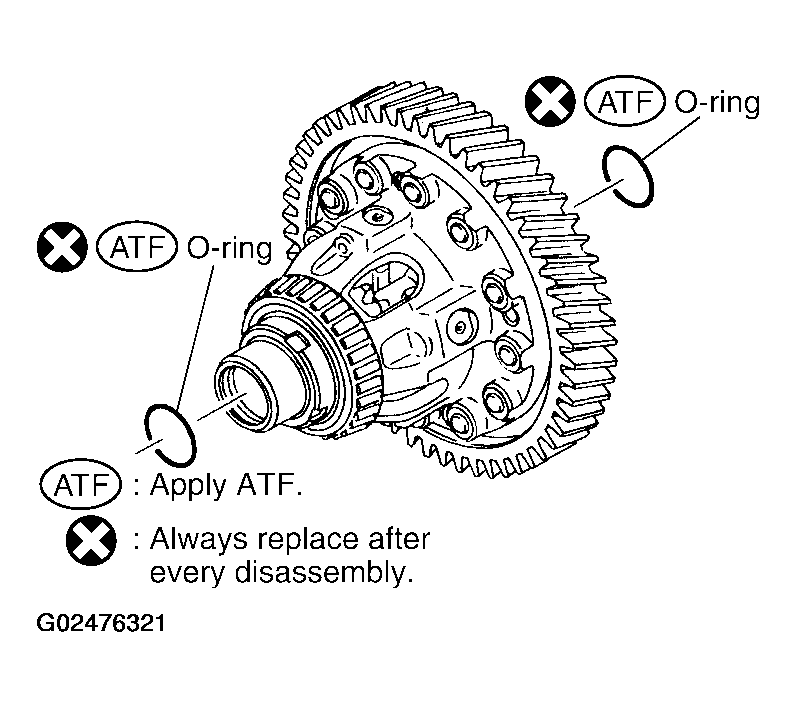

    Fig 1: Removing O-Rings From Differential Gear Assembly
    G02476321Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove tapered roller bearings, using a puller.

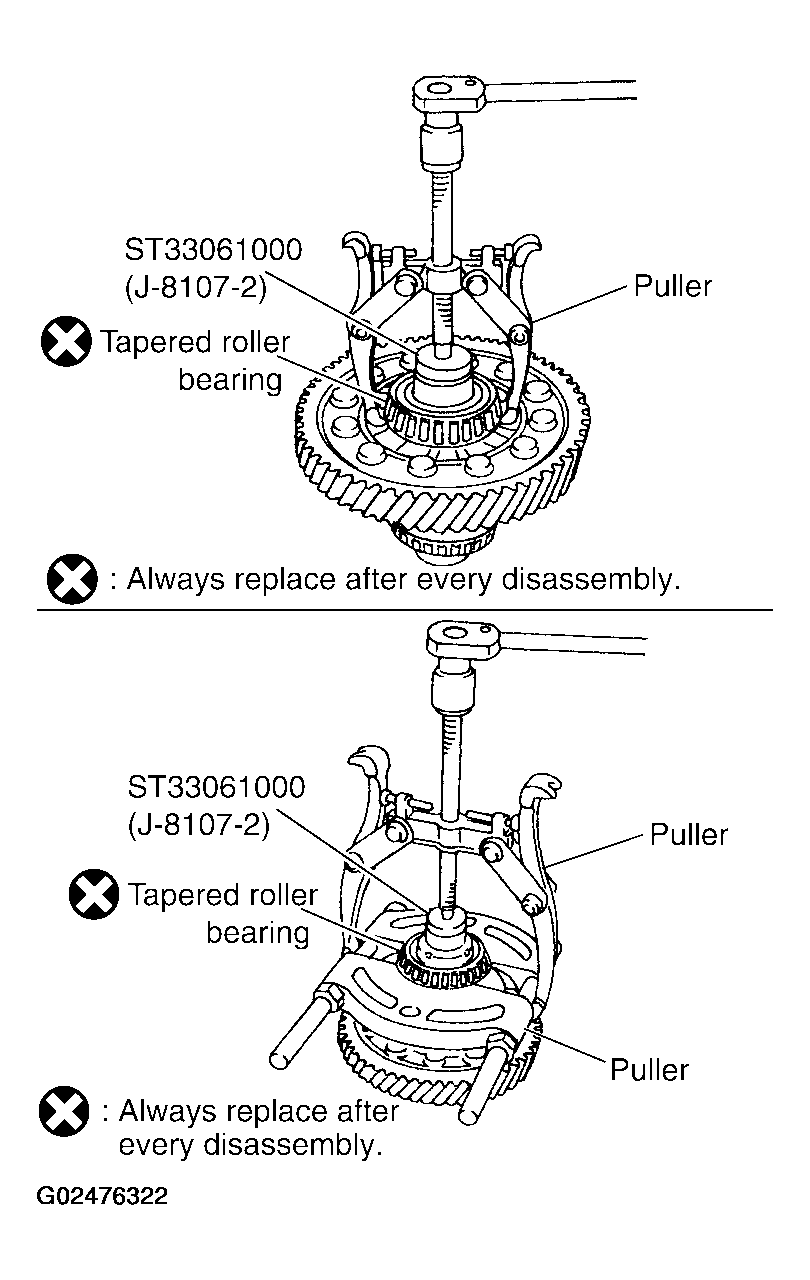

    Fig 2: Removing Tapered Roller Bearings
    G02476322Courtesy of NISSAN MOTOR CO., U.S.A.
