Differential Gear Assembly: Assembly

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install tapered roller bearings in differential gear assembly.
    CAUTION: Do not reuse tapered roller bearings.

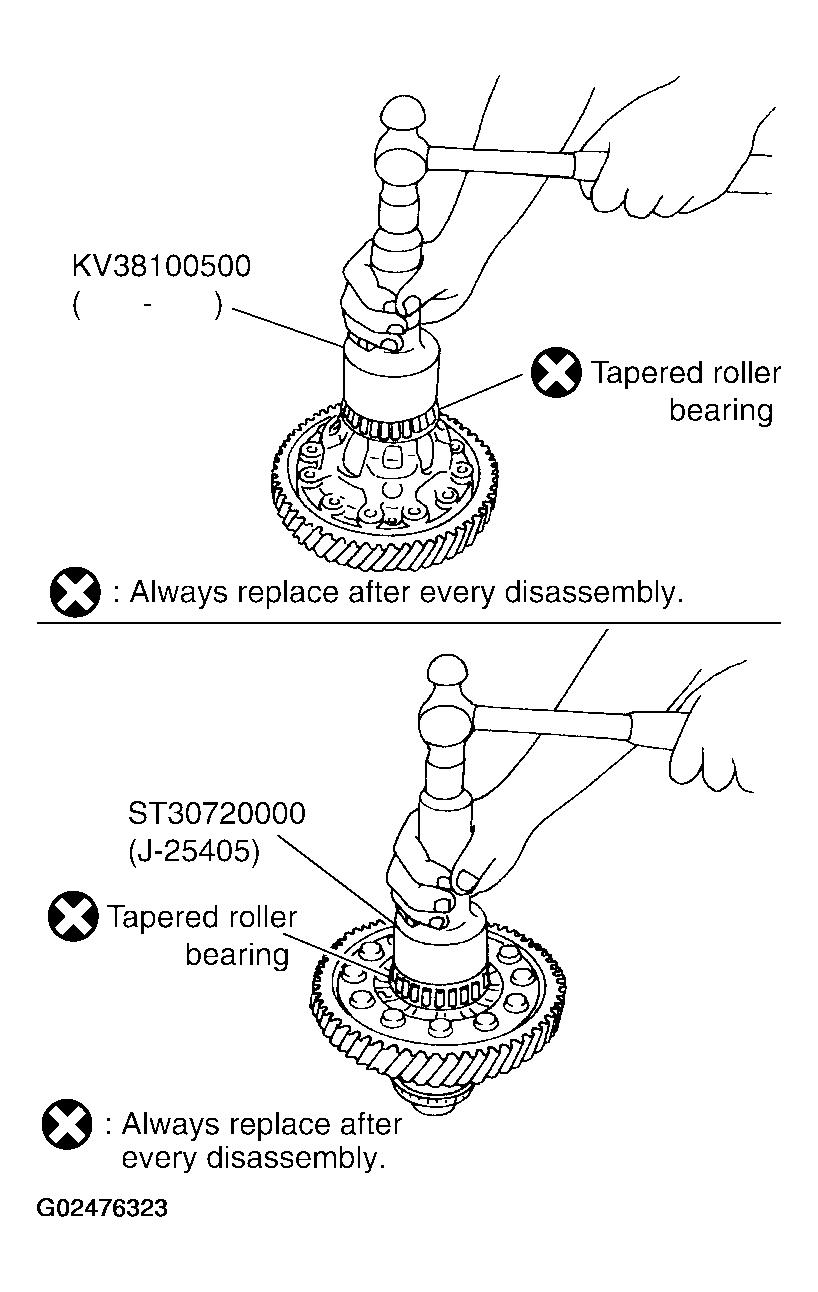

    Fig 1: Installing Tapered Roller Bearings In Differential Gear Assembly
    G02476323Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install O-rings in differential gear assembly.
    CAUTION:
    • Do not reuse O-rings.
    • Apply ATF to O-rings.

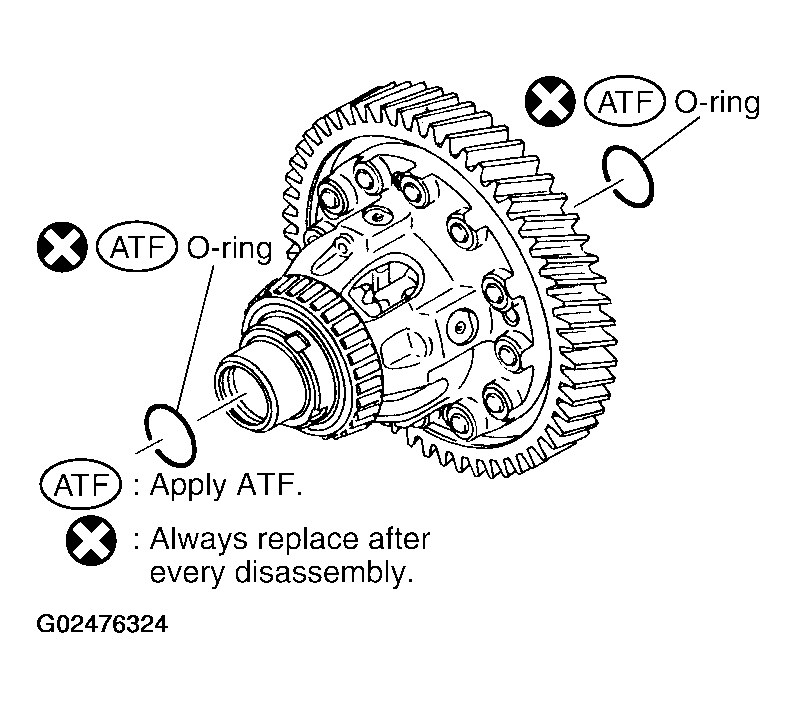

      Fig 2: Installing O-Rings In Differential Gear Assembly
      G02476324Courtesy of NISSAN MOTOR CO., U.S.A.
