Inspection After Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Drive plate runout
CAUTION: Do not allow any magnetic materials to contact the ring gear teeth.
- Maximum allowable runout:

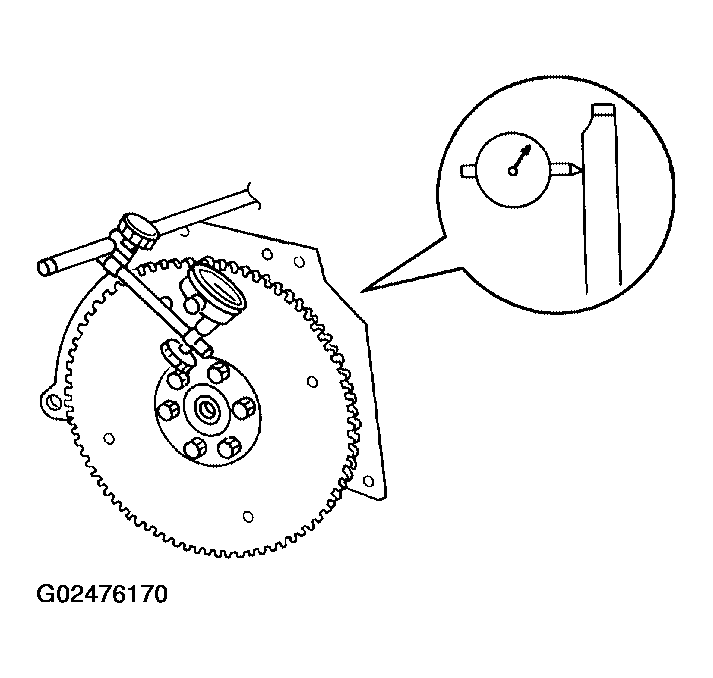

Fig 1: Measuring Drive Plate Runout
Courtesy of NISSAN MOTOR CO., U.S.A.
If this runout is out of allowance, replace drive plate and ring gear.
When connecting torque converter to transaxle, measure distance "A" to be certain that they are correctly assembled.

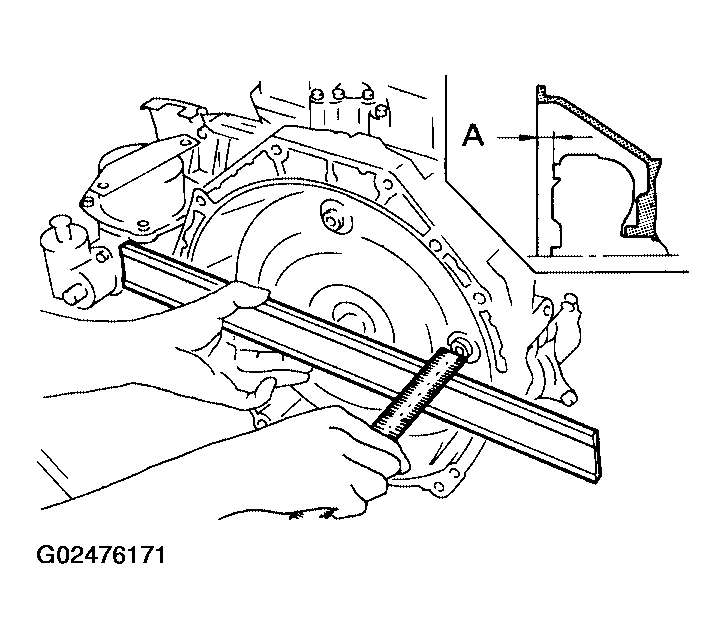

Fig 2: Measuring Torque Converter To Transaxle Distance "A"
Courtesy of NISSAN MOTOR CO., U.S.A.
- Distance "A" : 14 mm (0.55 in) or more
