Locations of Needle Bearings, Bearing Races and Thrust Washers

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

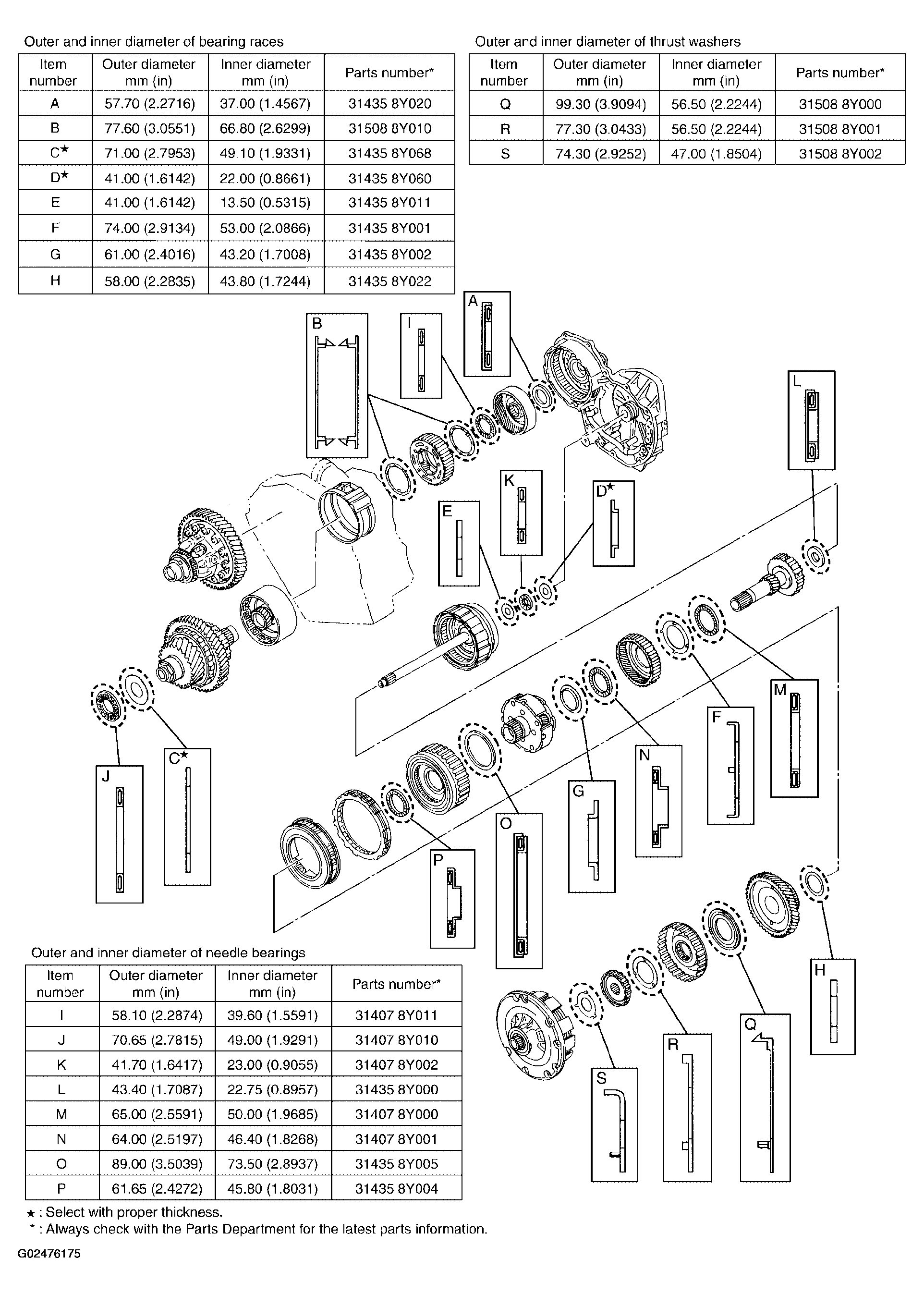

Fig 1: Identifying Locations & Dimensions Of Needle Bearings, Bearing Races & Thrust Washers

Courtesy of NISSAN MOTOR CO., U.S.A.
