Transmission wire: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove PNP switch. Refer to COMPONENTS .
  2. Remove side cover. Refer to SIDE COVER .
  3. Disconnect solenoid valve connectors.

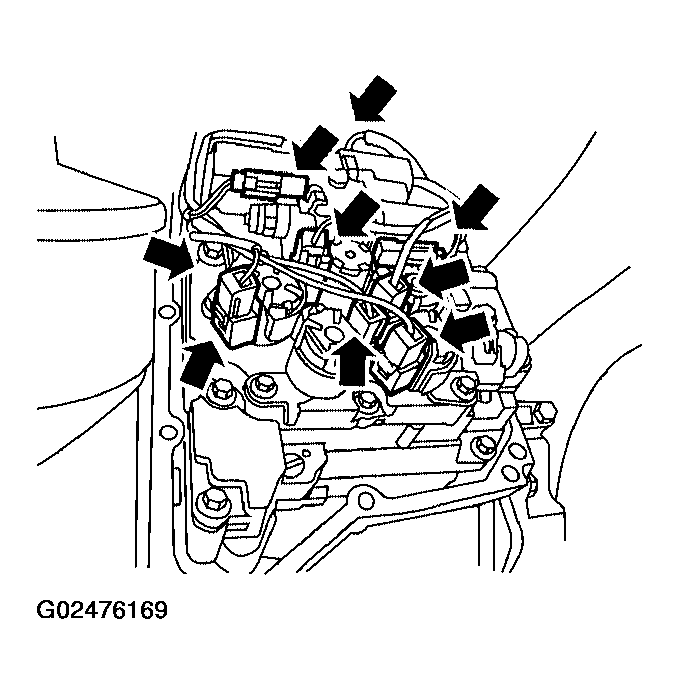

    Fig 1: Disconnecting Solenoid Valve Connectors
    G02476169Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove transmission wire.
